Description
be quiet! Straight Power 12, 1200 W, 110 - 240 V, 1270 W, 50 - 63 Hz, 15/7.5 A, 150 W
Specifications
Power
- Total power: 1200 W
- Peak power: 1270 W
- AC input voltage: 110 - 240 V
- AC input frequency: 50 - 63 Hz
- Input current: 15/7.5 A
- Power factor: 0.99
- Combined power (+3.3V): 150 W
- Combined power (+12V): 1200 W
- Max output current (+3.3V): 25 A
- Max output current (+12V1): 100 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Hold time: 23 ms
- Efficiency: 93.9%
- Power protection features: Over current, Over power, Over voltage, Overheating, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 9
- Number of PATA power connectors: 2
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- Floppy disk drive connector: No

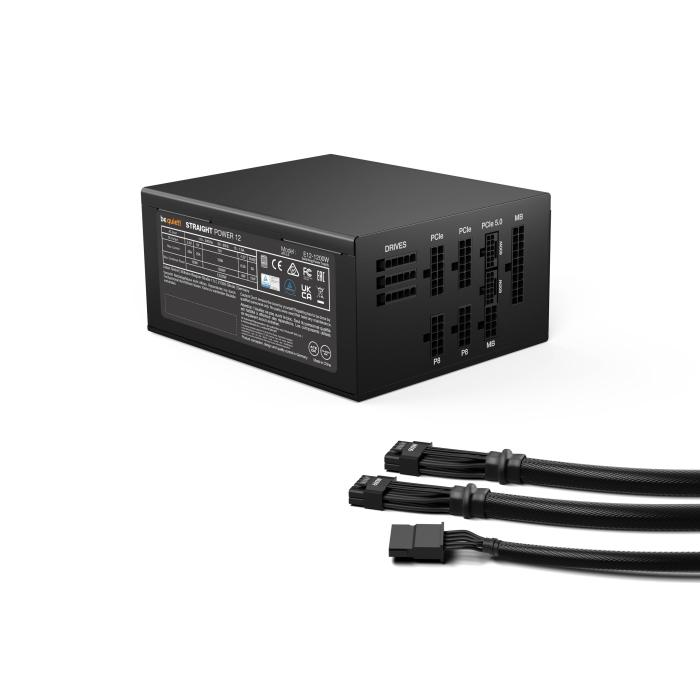

- Cabling type: Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Supported motherboard form factors: ATX, micro ATX, Mini-ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- EPS version: 2.92
- Noise level: 32.2 dB
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

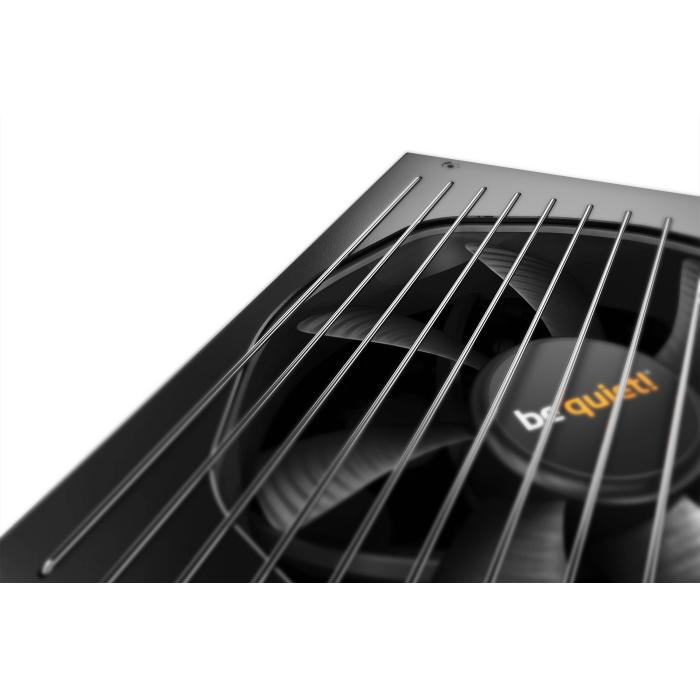

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan speed: 2600 - 2600 RPM
- Fan location: Top
- Built-in display: No
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content

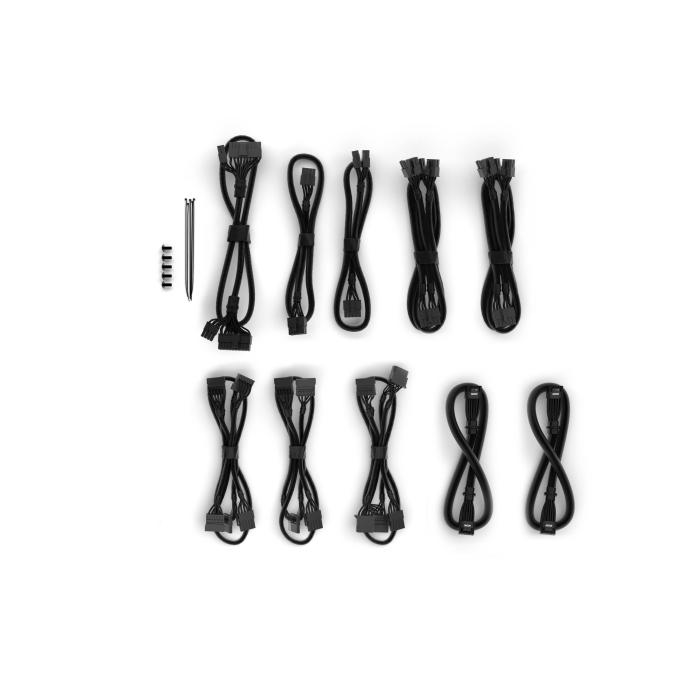

- Cables included: CPU, SATA
- Cable tie(s) included: Yes
Weight & dimensions
- Width: 180 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 2.12 kg
Packaging data
- Package width: 328 mm
- Package depth: 248 mm
- Package height: 102 mm
- Package weight: 3.89 kg
- Package type: Box
Technical details
- Sustainability compliance: Yes
- Sustainability certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
- Warranty period: 10 year(s)
