Description

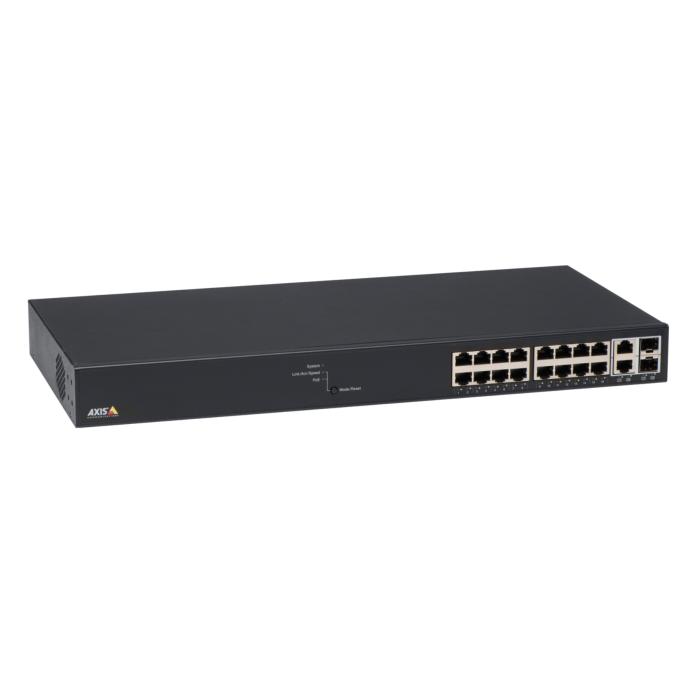

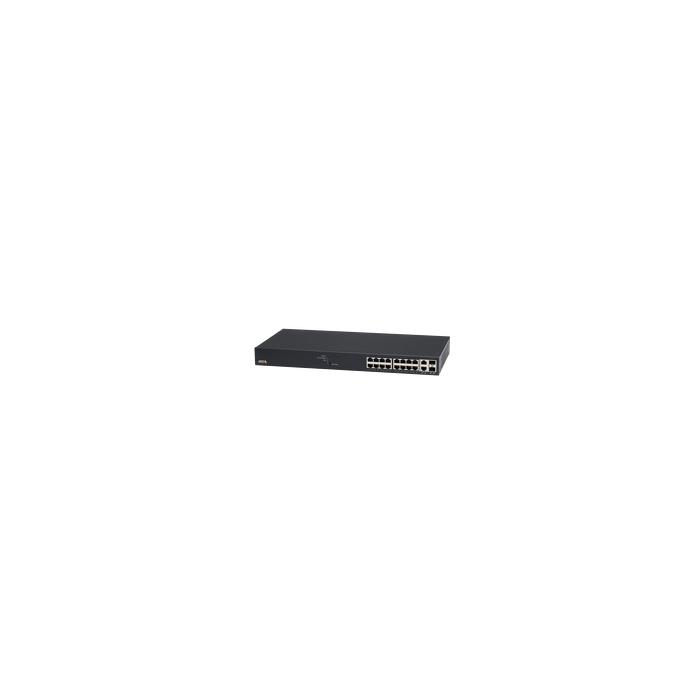

The Axis 5801-692 managed switch, in black, offers 16 Gigabit Ethernet ports (10/100/1000) with PoE support and two Combo SFP slots to expand connectivity. With a switching capacity of 36 Gbit/s and a forwarding rate of 26.8 Mpps, it handles network traffic efficiently, including jumbo frames of up to 9216 bytes. It incorporates advanced management features such as VLANs, access control lists (ACLs) and security via HTTPS, SNMP and SSH, and complies with IEEE 802.3af and 802.3at standards to power PoE devices with a total output power of 240 W. Its LED indicators show activity, link, PoE, speed and system status, and it includes a reset button for easy management.
Specifications
Management features
- Switch type: Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- VLAN support: Yes
Data transmission
- Switching capacity: 36 Gbit/s
- Throughput: 26.8 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- Access Control List (ACL): Yes
- Security algorithms: HTTPS, SNMP, SSH
Design
- Product colour: Black
- Reset button: Yes
- LED indicators: Activity, Link, PoE, Speed, System
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Output power: 240 W
- Power consumption (max): 285 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 442 mm
- Depth: 211 mm
- Height: 44 mm
- Weight: 3 kg
Packaging data
- AC adapter included: Yes
- Rubber feet: Yes
Logistics data
- Harmonized System (HS) code: 85176990
