Description

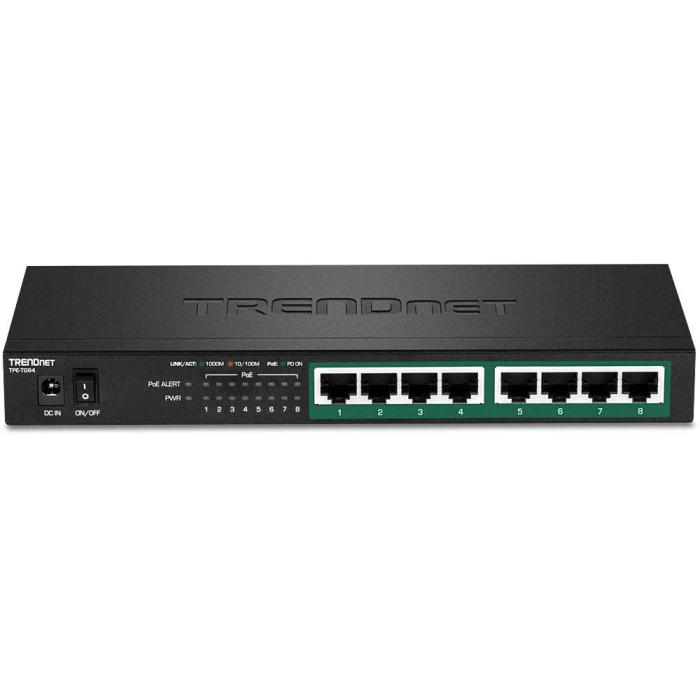

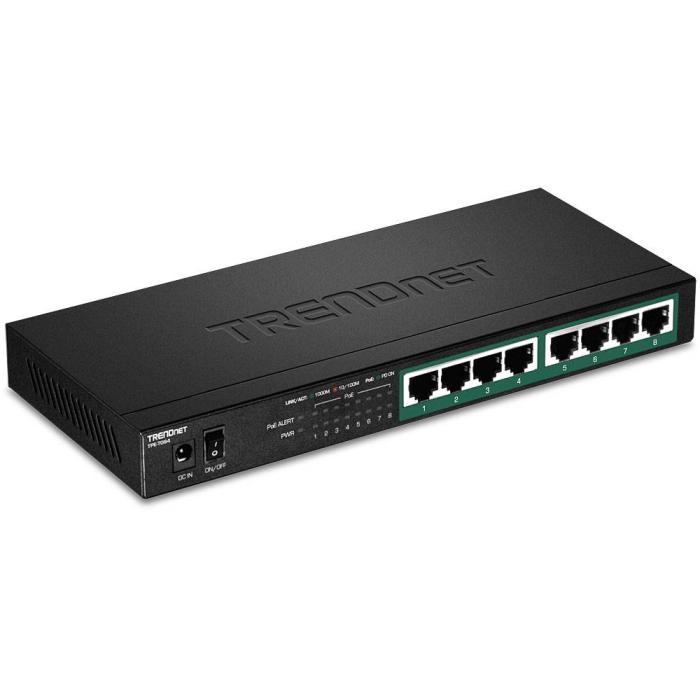

Trendnet TPE-TG84 unmanaged switch with eight Gigabit Ethernet ports (10/100/1000) and Power over Ethernet (PoE) support, available in black, ideal for expanding your local network without configuration hassle. This unit offers Quality of Service (QoS) to prioritise traffic, a switching capacity of 16 Gbit/s and a MAC address table of 4000 entries, efficiently handling up to 11.9 Mpps forwarding rate. Compatible with IEEE 802.3af and 802.3at standards, it supplies power to PoE devices such as cameras or access points, and supports jumbo frames of 9000 bytes along with full duplex and half duplex transmission.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Cable types supported: Cat5e
- Full duplex: Yes
- Half duplex: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 4000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 0.192 MB
Design
- Product colour: Black
- LED indicators: Activity, Link, PoE, Power

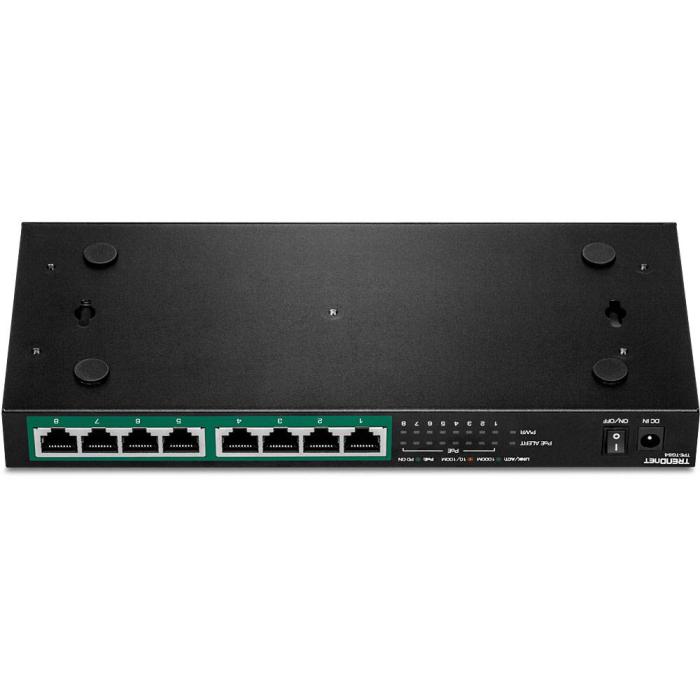

- Wall mountable: Yes
Performance
- Fanless: Yes
Power
- Power source: AC/DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2.5 A
- Power consumption (max): 126 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 240 mm
- Depth: 105 mm
- Height: 27 mm
- Weight: 580 g
Packaging content

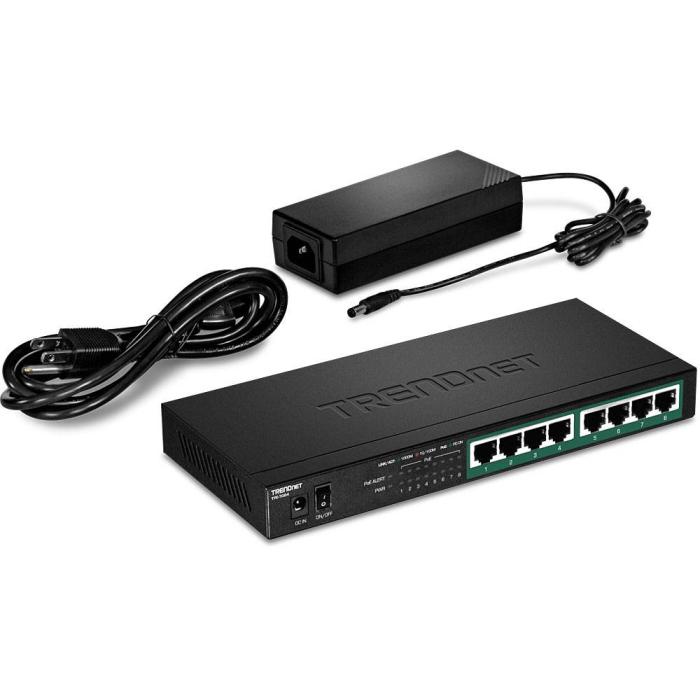

- Cables included: DC
- Quick start guide: Yes
Certificates
- Certification: CE, FCC, LVD
Logistics data
- Harmonized System (HS) code: 85176990
