Description

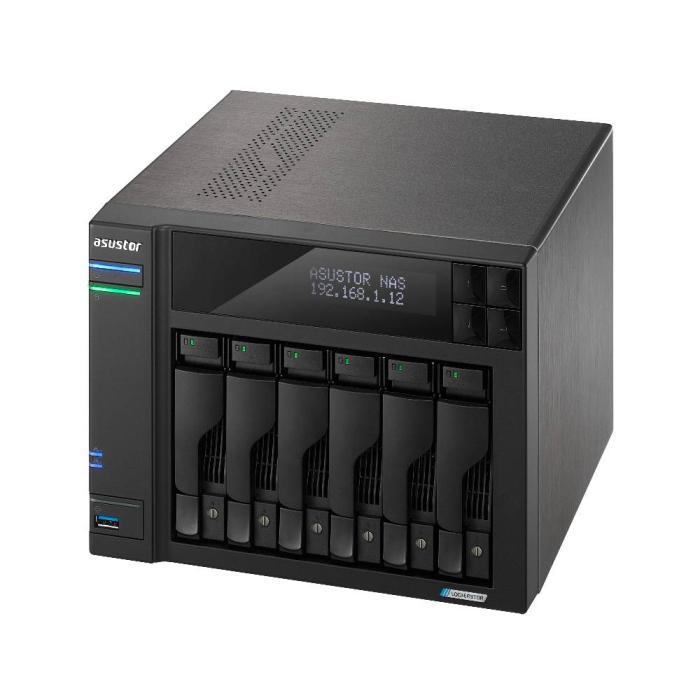

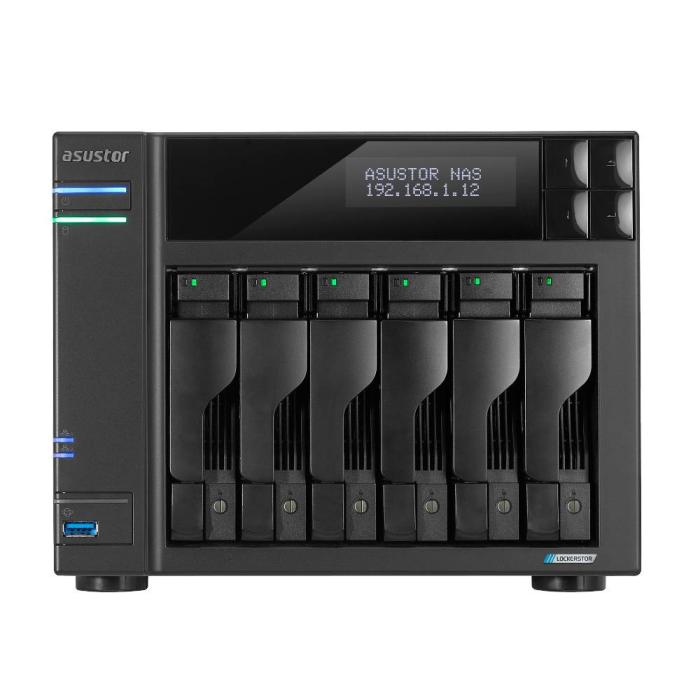

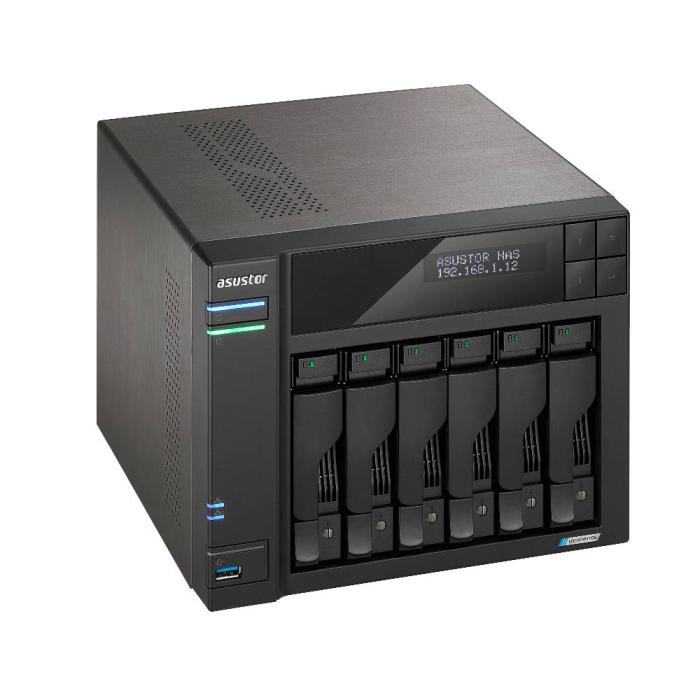

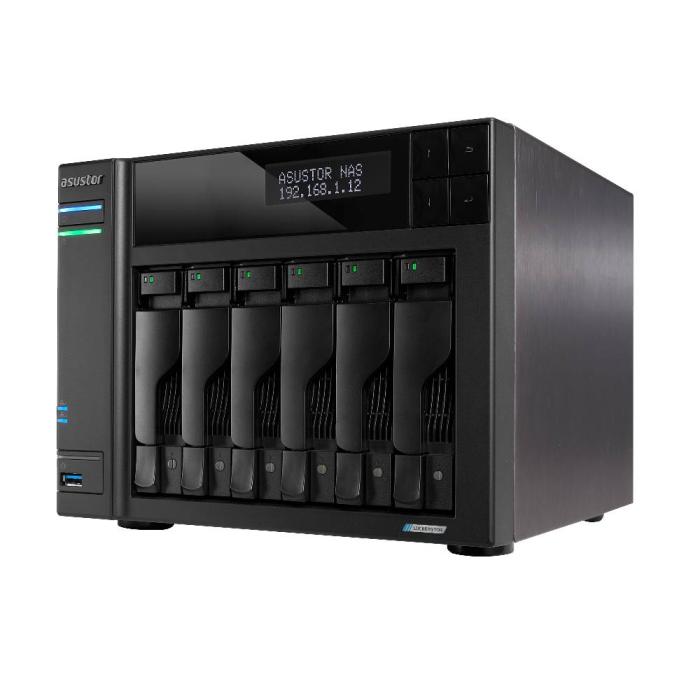

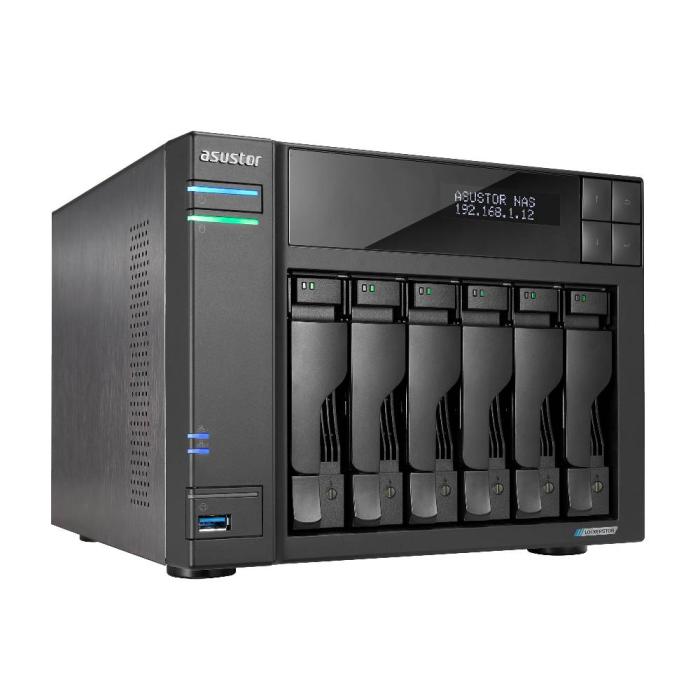

Asustor LOCKERSTOR 6 NAS desktop in black, equipped with an Intel® Celeron® N5105 processor and 8 GB of DDR4 memory, offers six bays for 2.5-inch or 3.5-inch hard drives with SATA interface, plus four M.2 slots for expanding storage with SSDs. Compatible with RAID levels 0, 1, 5, 6, 10 and JBOD, this system supports HDD and SSD drives and works with file systems such as BTRFS, ext4, NTFS or exFAT. It includes integrated Intel UHD Graphics and allows centralised management of backups and data via the ASUSTOR ADM operating system.
Specifications
Storage
- Storage drive interface: M.2, Serial ATA, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5, M.2
- Number of M.2 (M & B) slots: 4
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: Yes
- Number of storage drives supported: 6
- Installed storage drive type: HDD
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Celeron®
- Processor model: N5105
- Processor frequency: 2 GHz
- Processor boost frequency: 2.9 GHz
- Processor cores: 4
- Processor threads: 4
- CPU configuration (max): 1
- On-board graphics card model: Intel® UHD Graphics
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 16 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- Flash memory: 8000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
- Jumbo frames support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy,

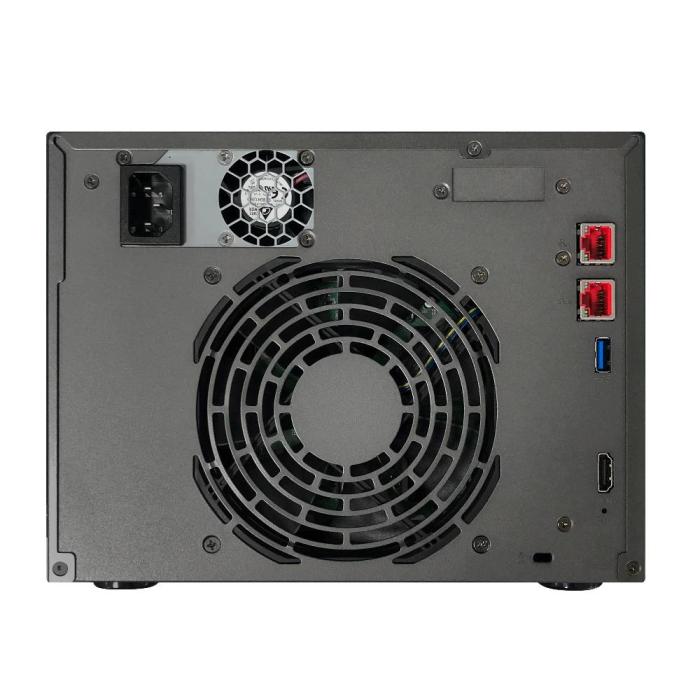

Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.0b
- Ethernet LAN (RJ-45) ports: 2
Design
- Chassis type: Desktop
- Cooling type: Active
- Product colour: Black
- Number of fans: 1 fan(s)
- Fan diameter: 12 cm
- Built-in display: Yes
- Display type: LCD
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Backup features: Cloud, USB drive, iSCSI LUN
- Noise level: 18.1 dB
- Browser supported: Firefox, Chrome, Safari, Microsoft Edge
Software
- Operating system installed: ADM
- Operating system version: 4.1
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: MacOS
- Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 202
Power
- Power supply location: External
- Power supply unit (PSU) capacity: 250 W
- Power consumption (typical): 48.5 W
- Power consumption (sleep): 0.81 W
- Power consumption (HDD standby): 27.7 W
- AC input voltage: 100 - 240 V
Weight & dimensions
- Width: 233 mm
- Depth: 230 mm
- Height: 185.5 mm
- Weight: 4.4 kg
Processor special features
- Enhanced Intel SpeedStep Technology: Yes
- Idle States: Yes
- Intel 64: Yes
- Intel Trusted Execution Technology: No
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 84714100
Other features
- Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
