Description

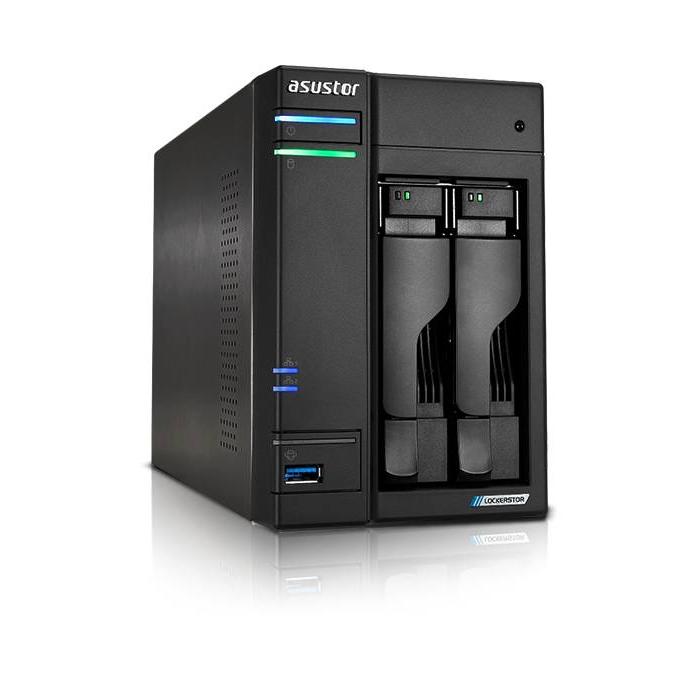

The Asustor LOCKERSTOR 2 Gen2 (AS6702T) desktop NAS in black features an Intel® Celeron® N5105 quad-core processor at 2 GHz and 4 GB of DDR4 memory, along with integrated Intel® UHD graphics. This model comes without drives installed (total capacity of 0 TB), but supports two drive bays for 2.5 or 3.5-inch units with SATA interface, as well as four M.2 slots for expanding storage with SSDs. It is compatible with RAID configurations and file systems such as BTRFS, ext4, NTFS, or exFAT, making it easy to manage both HDDs and SSDs according to your needs.
Specifications
Storage
- Storage drive capacity: 0 GB
- Storage drive interface: M.2, Serial ATA
- Storage drive sizes supported: 2.5, 3.5, M.2
- Number of M.2 (M & B) slots: 4
- RAID support: Yes
- Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 2
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Celeron®
- Processor model: N5105
- Processor frequency: 2 GHz
- Processor cores: 4
- Processor cache: 4 MB
- CPU configuration (max): 1
- On-board graphics card model: Intel® UHD Graphics
Memory
- Internal memory: 4 GB
- Internal memory type: DDR4
- Memory clock speed: 2933 MHz
- Maximum RAM supported: 16 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- Flash memory: 8000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: CIFS/SMB, SMB 2.0/3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP
- Dynamic DNS (DDNS): Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.0b
- Ethernet LAN (RJ-45) ports: 2
Design
- Chassis type: Desktop
- Cooling type: Active
- Product colour: Black
- Number of fans: 1 fan(s)
- Fan diameter: 7 cm
- LED indicators: Yes
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Backup features: Cloud
- Number of users: 4096 user(s)
- Noise level (idle): 17.7 dB
- Web-based management: Yes
- Access Control List (ACL): Yes
- System log: Yes
- Universal Plug and Play (UPnP): Yes
Software
- Operating system installed: ADM
- Operating system version: 4.1 Onwards
- Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
- Linux operating systems supported: Yes
- Mac operating systems supported: Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac
- Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022
Power
- Power supply location: External
- Power supply unit (PSU) capacity: 65 W
- Number of power supply units: 1
- Power consumption (typical): 21 W
- Power consumption (sleep): 0.79 W
- AC input voltage: 100 - 240 V
Weight & dimensions
- Width: 163.5 mm
- Depth: 108 mm
- Height: 230 mm
- Weight: 2 kg
Processor special features
- Enhanced Intel SpeedStep Technology: Yes
- Idle States: Yes
- Intel 64: Yes
- Intel Trusted Execution Technology: No
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 84714100
