Description

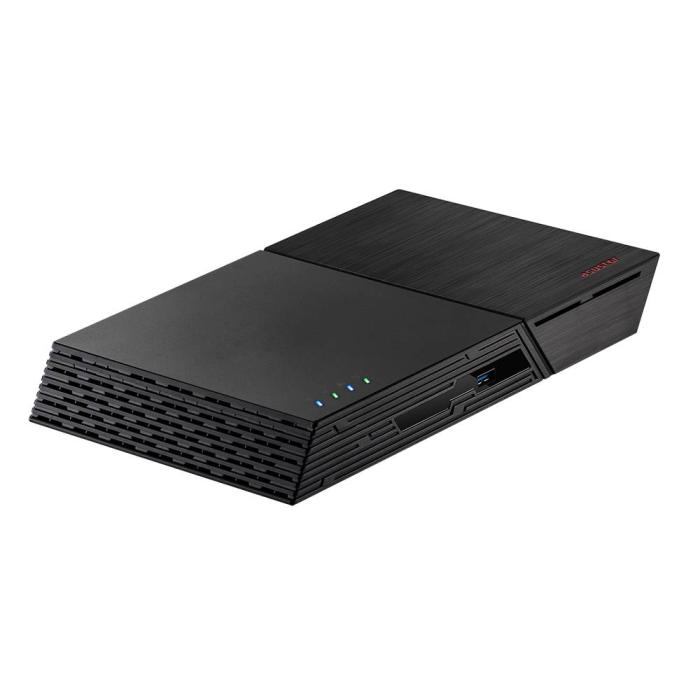

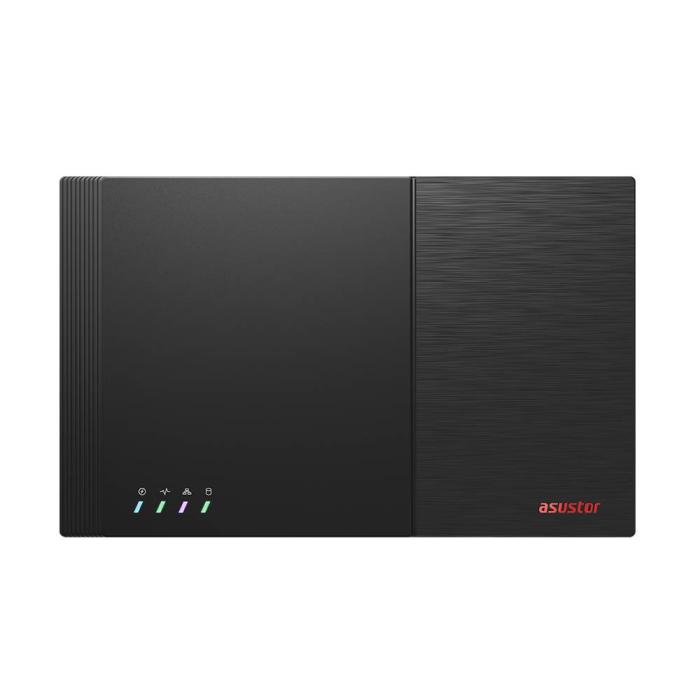

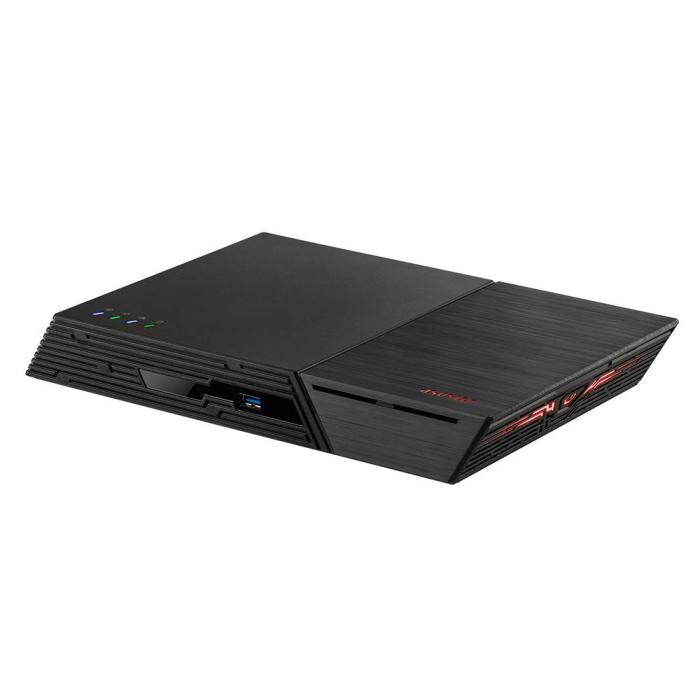

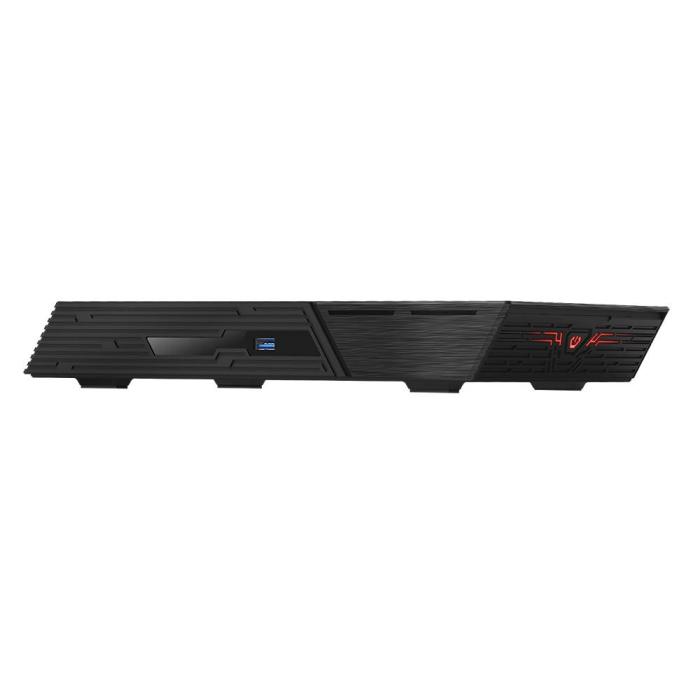

The Asustor FS6712X NAS/storage server in black arrives with 0 TB of installed capacity and 4 GB of DDR4 memory, ready for you to configure your own storage system. This compact model integrates an Intel® Celeron® N5105 processor with a base frequency of 2 GHz and turbo up to 2.9 GHz, plus 4 MB of cache. It supports up to 12 M.2 interface SSD storage drives and offers compatibility with RAID levels 0, 1, 5, 6, and 10, including online RAID migration and expansion. Supported file systems include BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, and ext4, making integration into mixed environments easy. It comes with no pre-installed drives, so you can choose the SSDs that best suit your performance and capacity needs.
Specifications
Storage
- Storage drive interface: M.2
- Supported storage drive interfaces: M.2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10
- Online RAID migration: Yes
- Online RAID expansion: Yes
- Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 12
- Installed storage drive type: No
- Supported storage drive types: SSD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Celeron®
- Processor model: N5105
- Processor frequency: 2 GHz
- Processor boost frequency: 2.9 GHz
- Processor cores: 4
- Processor threads: 4
- Processor cache: 4 MB
- CPU configuration (max): 1
Memory
- Internal memory: 4 GB
- Internal memory type: DDR4
- Maximum RAM supported: 16 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- Flash memory: 8000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000, 2500, 5000, 10000 Mbit/s
- Ethernet LAN data rate supported (max): 10000 Mbit/s
- Jumbo frames support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy,
- Link aggregation: Yes
- Dynamic DNS (DDNS): Yes
- WLAN adapter supported: Yes

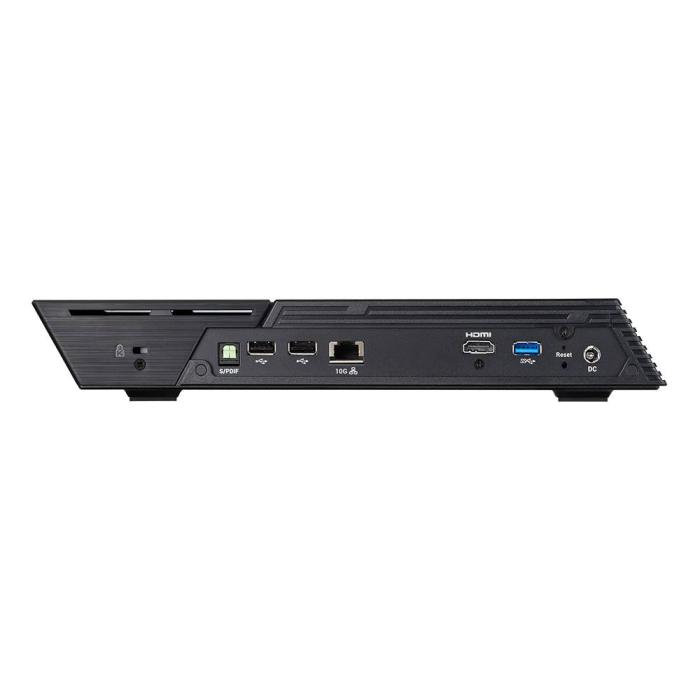

Ports & interfaces
- USB port: Yes
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.0
- Ethernet LAN (RJ-45) ports: 1
- Audio in/out: Yes
Design
- Chassis type: Compact
- Cooling type: Active
- Product colour: Black
- Number of fans: 1 fan(s)
- Fan diameter: 8 cm
- LED indicators: Yes
- Built-in display: No
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Backup features: Cloud, USB drive
- Multilingual support: Yes
- Number of users: 4096 user(s)
- Noise level: 18.7 dB
- Third-party support: Yes
- Snapshot: Yes
- Web-based management: Yes
- Share folder access right management: Yes
- Security algorithms: FTPES, HTTPS, SSH, SSL/TLS
- Access Control List (ACL): Yes
- Built-in iTunes server: Yes
- Built-in FTP server: Yes
- Browser supported: Firefox, Chrome, Safari, Microsoft Edge
- Network Time Protocol (NTP) client: Yes
- System log: Yes
- Password authentication: Yes
- Disk scan: Yes
- S.M.A.R.T. support: Yes
- Remotely operated: Yes
Software
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
- Other operating systems supported: Android, iOS
Power
- Power supply location: External
- Power supply unit (PSU) capacity: 90 W
- Power consumption (typical): 26 W
- AC input voltage: 100-240 V
Weight & dimensions
- Width: 308.2 mm
- Depth: 193 mm
- Height: 48.3 mm
- Weight: 1.37 kg
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
Other features
- Compliance certificates: BSMI, CCC, CE, Federal Communications Commission (FCC), KCC, UKCA
