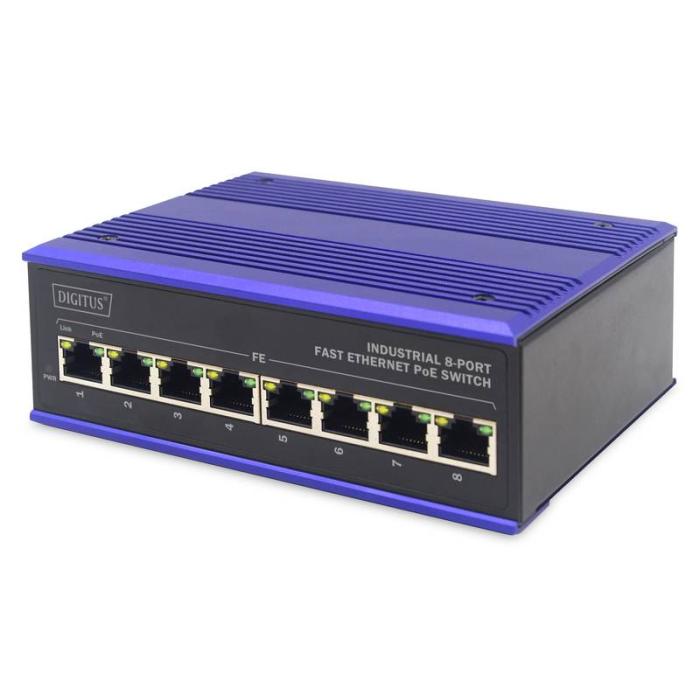

ASSMANN Electronic DN-650108 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black, Blue
More info
Brand: ASSMANN ELECTRONIC
97,00 €Stock available: 0 units.
Unavailable
SKU:
83554
PRC:
271401
EAN:
4016032458869
PN:
dn-650108
Description
The ASSMANN Electronic DN-650108 Fast Ethernet switch, in black with blue details, features 8 RJ-45 ports with PoE support conforming to IEEE 802.3af and 802.3at standards to power compatible devices via the network cable. With a switching capacity of 1.6 Gbit/s and a MAC address table for 2000 entries, it employs store-and-forward with flow control, full duplex support and auto-MDI/MDI-X. It supports Cat3, Cat4 and Cat5 cables, as well as the network standards IEEE 802.3, 802.3ab, 802.3u and 802.3x. This fanless model, with DIN rail mounting, includes LED indicators and is suitable for basic 10/100 Mbps network installations.
Specifications
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Cable types supported: Cat3, Cat4, Cat5
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 1.6 Gbit/s
- MAC address table: 2000 entries
- Store-and-forward: Yes
Design
- Product colour: Black, Blue
- Housing material: Metal
- LED indicators: Yes
- Wall mountable: Yes
- DIN rail mounting: Yes
- Number of fans: 0 fan(s)
Performance
- Mean time between failures (MTBF): 300000 h
Power
- Power supply included: No
- Redundant power supply (RPS) support: Yes
- DC input voltage: 48 - 57 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 120 mm
- Depth: 157 mm
- Height: 48 mm
Packaging content
- User guide: Yes
Logistics data
- Harmonized System (HS) code: 85176990
