Description

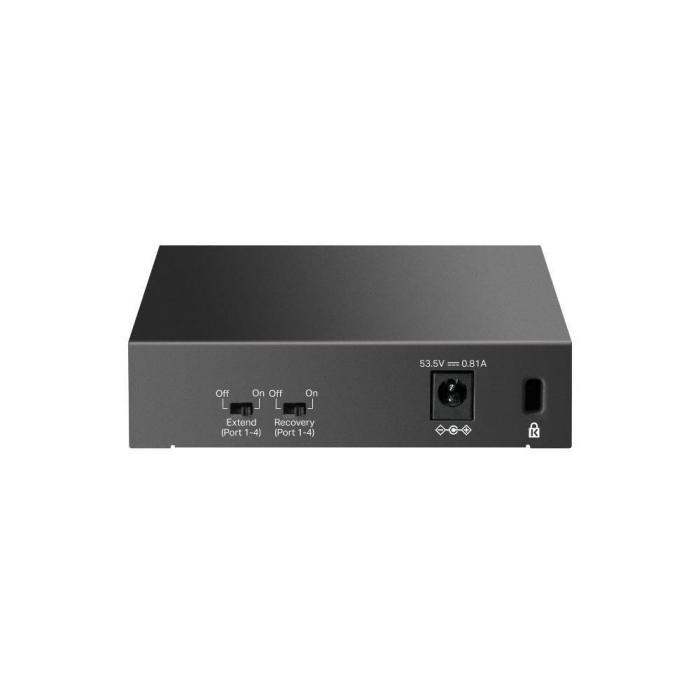

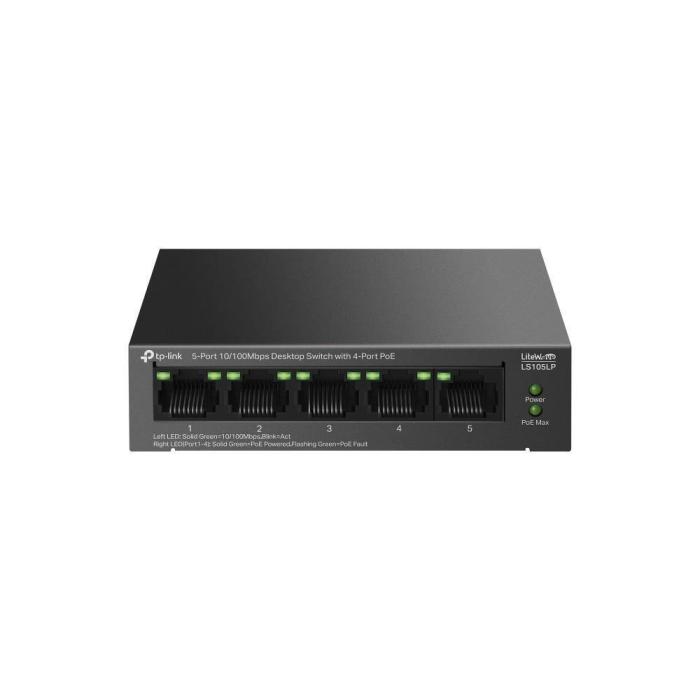

TP-Link LiteWave LS105P unmanaged switch with five Fast Ethernet ports at 10/100 Mbps and Power over Ethernet (PoE) support to simplify the installation of compatible devices. This black model includes quality of service (QoS) and flow control, with auto-negotiation and auto MDI/MDI-X on each connection for straightforward setup. Its store-and-forward technology, along with a 2000-entry MAC address table, delivers efficient switching of up to 0.744 Mpps. It also supports wall mounting for easy integration into any workspace.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
- Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- Forwarding rate: 0.744 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
Design
- Product colour: Black
- LED indicators: Yes
- Wall mountable: Yes
- Number of fans: 0 fan(s)
Performance
- Fanless: Yes
Power
- Power source: DC/PoE
- Power supply included: Yes
- AC input voltage: 220 V
- AC input frequency: 50 Hz
- DC input voltage: 53.5 V
- Input current: 0.81 A
- Power consumption (max): 46.45 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet (PoE) power per port: 15.4 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 157.93 BTU/h
Weight & dimensions
- Width: 100 mm
- Depth: 98 mm
- Height: 25 mm
Packaging content
- User guide: Yes
Packaging data
- Package type: Box
Certificates
- Certification: CE, FCC, RoHS
