Description

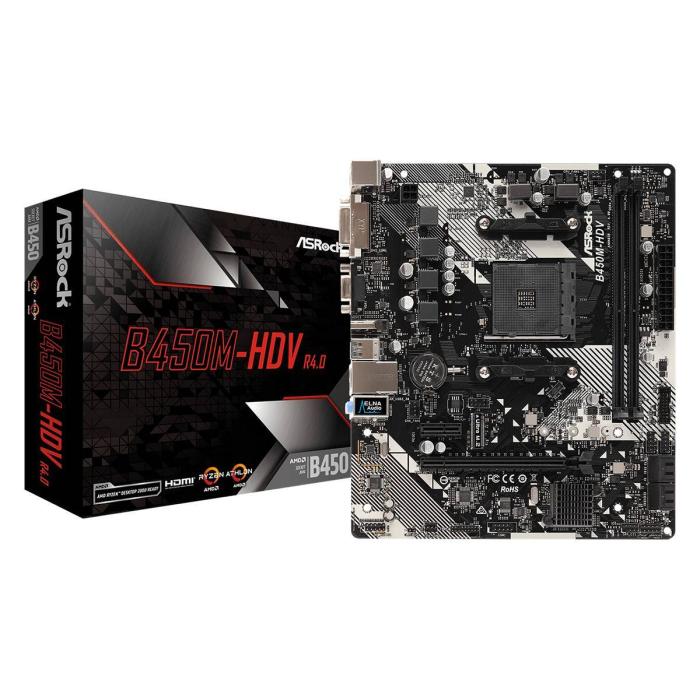

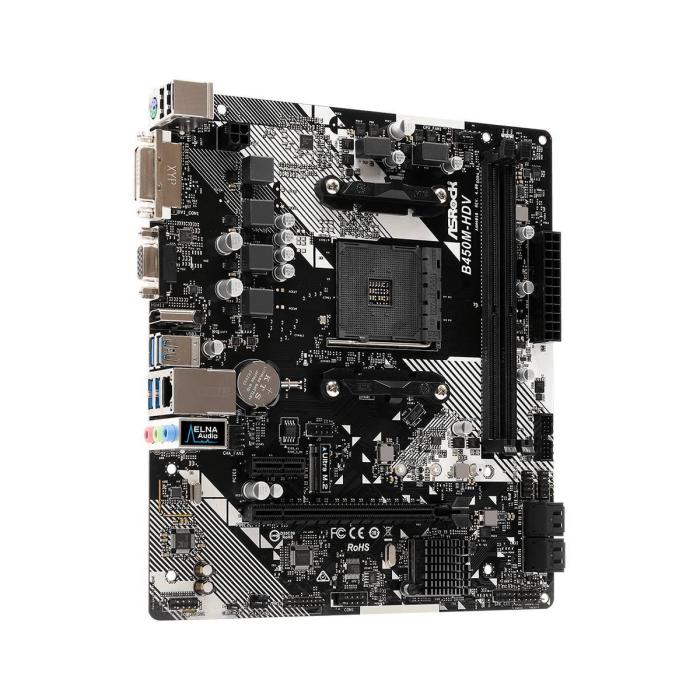

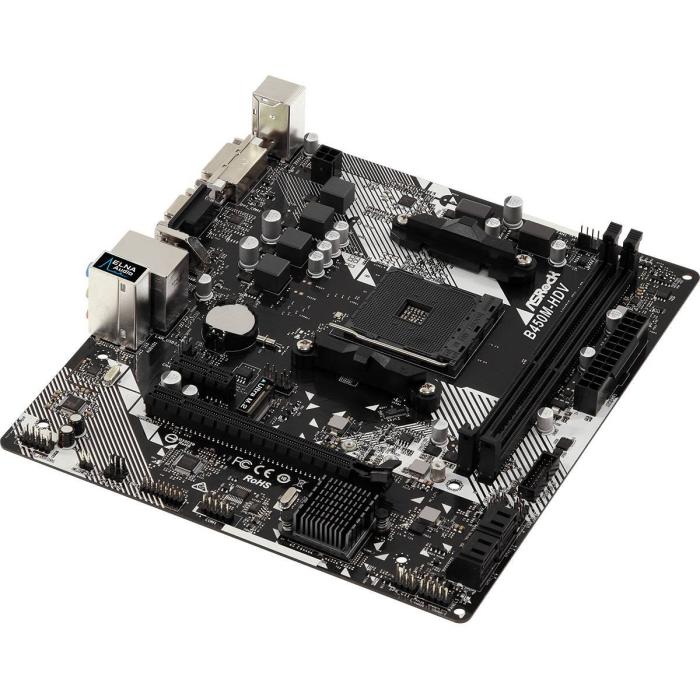

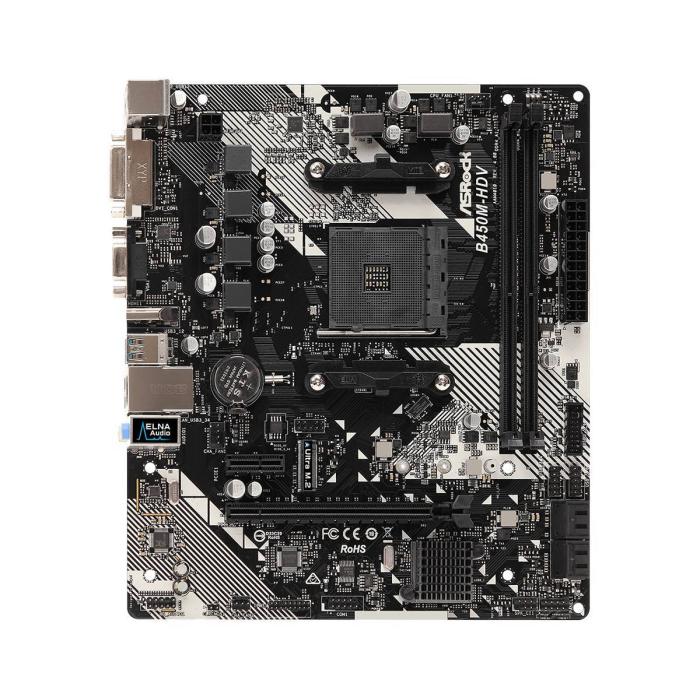

ASROCK B450M-HDV R4.0 motherboard with micro ATX form factor and AM4 socket, designed for AMD Athlon and Ryzen processors from the 2000 and 3000 series. It offers two DIMM slots for DDR4-SDRAM memory with speeds from 2133 up to 3200 MHz, ECC and non-ECC support, and a maximum capacity of 32 GB in dual channel. For storage, it features M.2, PCI Express 3.0 and SATA III interfaces, with support for RAID 0, 1 and 10, accommodating both HDD and SSD drives. Additionally, it integrates AMD graphics with DirectX 12 and a maximum resolution of 4096 x 2160 pixels, ideal for workstations or everyday use without the need for a dedicated graphics card.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200 MHz
- Maximum internal memory: 32 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: Yes
- Graphics card family: AMD
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- Chassis intrusion connector: Yes
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes

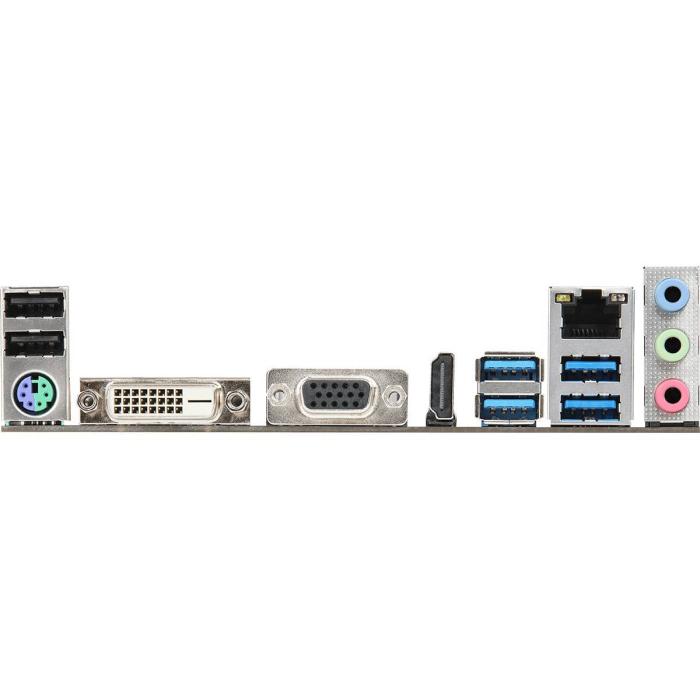

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DVI-D ports quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wake-on-LAN ready: Yes
- Wi-Fi: No
Features
- Motherboard chipset: AMD B450
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
- Certification: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
- PCI Express x1 (Gen 2.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 3
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.1
- Clear CMOS jumper: Yes
- System management BIOS (SMBIOS) version: 2.3
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 230 mm
- Depth: 201 mm
- Height: 70 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
- Bundled software: AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Other features
- Weight: 465 g
- Quick installation guide: Yes
- Utilities included: Yes
