Description

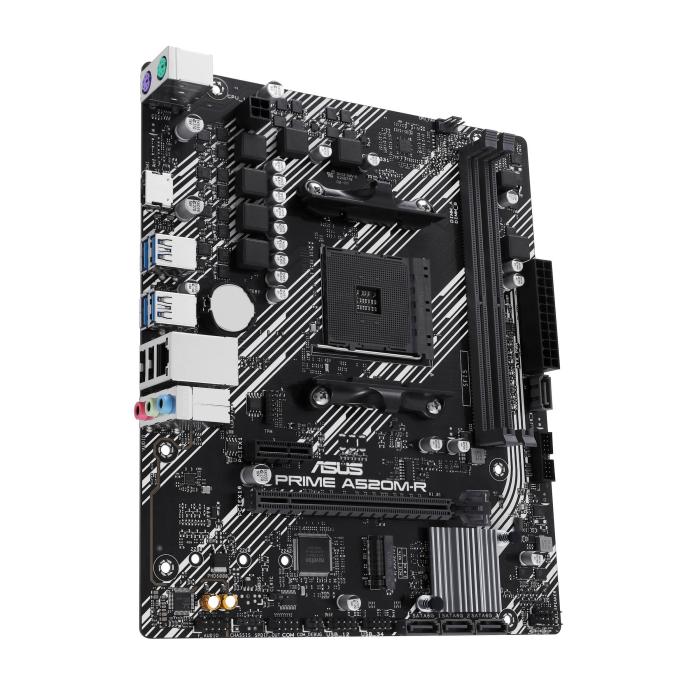

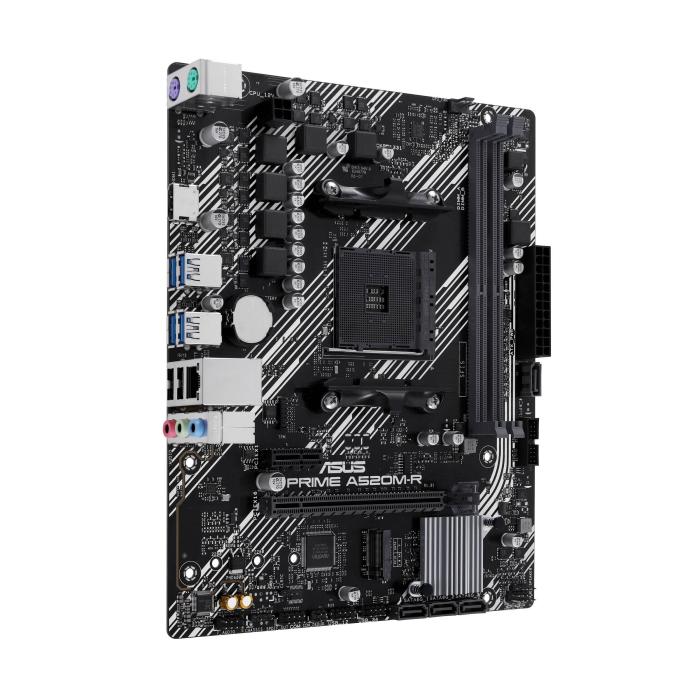

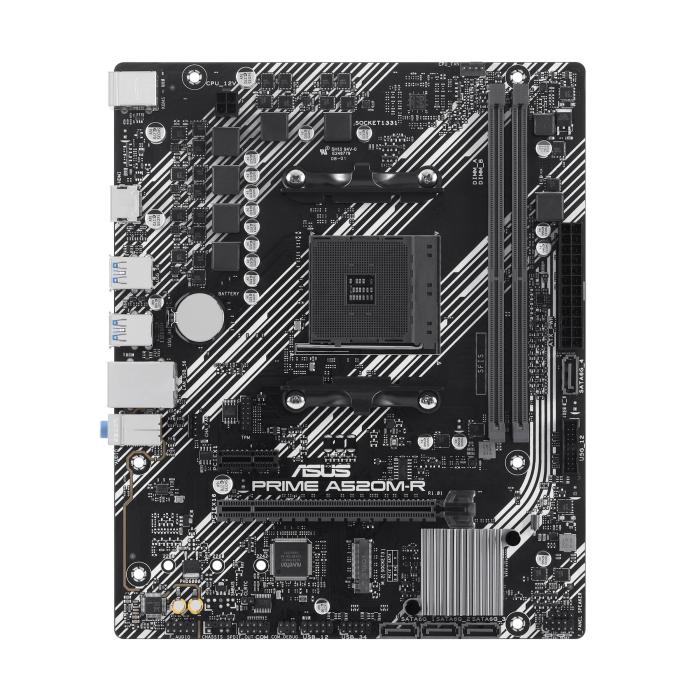

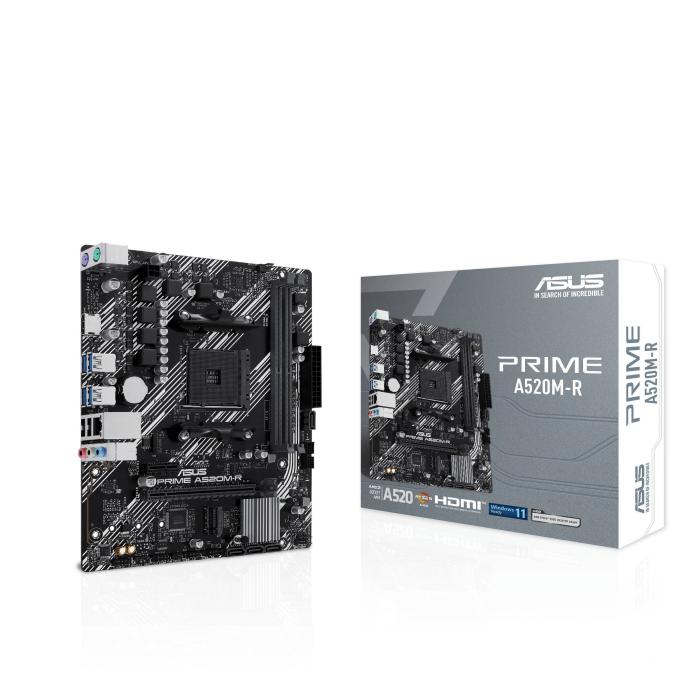

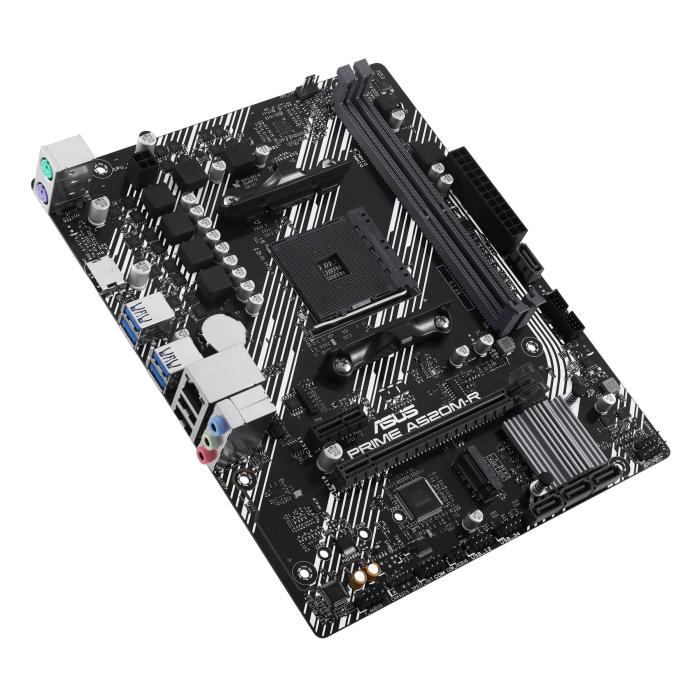

ASUS PRIME A520M-R motherboard in micro ATX format with AM4 socket, designed for AMD Ryzen 3000 and 5000 series processors. It features two DIMM slots supporting up to 64 GB of dual-channel DDR5-SDRAM memory, with maximum speeds of 5100 MHz and support for unbuffered ECC modules. For storage, it integrates compatibility with HDDs and SSDs via M.2 and SATA III interfaces, accommodating up to five drives and RAID levels 0, 1, and 10. This motherboard provides a solid foundation for office or home use configurations, leveraging AMD's latest generation processors in a compact format.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
- Supported processor sockets: Socket AM4
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 46
- Supported memory clock speed (max): 5100 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 5
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- Peripheral (Molex) power connectors (4-pin): 1
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes

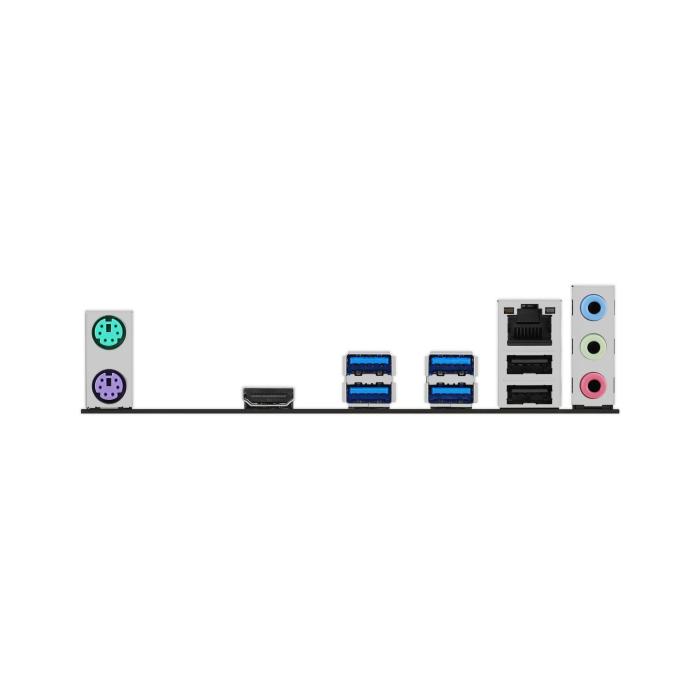

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: AMD A520
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
Packaging data
- Package width: 270 mm
- Package depth: 263 mm
- Package height: 51.5 mm
- Package weight: 880 g
Weight & dimensions
- Width: 236 mm
- Depth: 193 mm

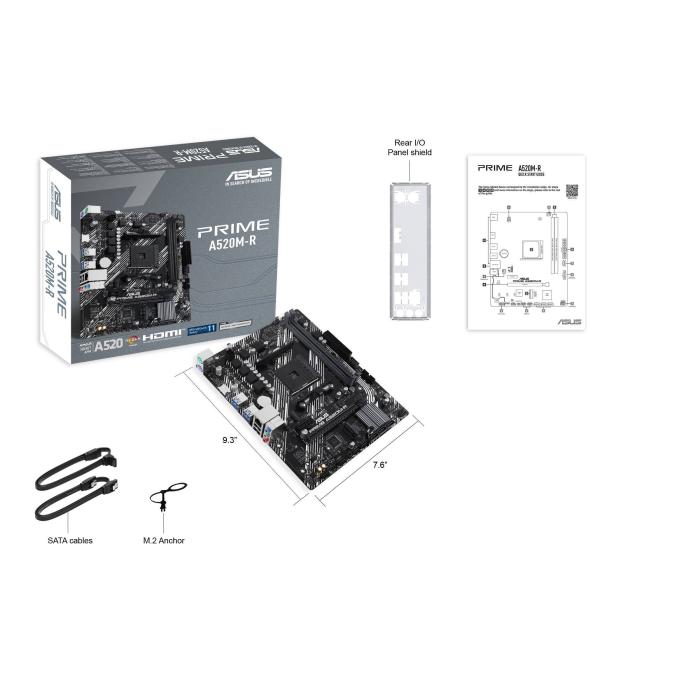

Packaging content
- Cables included: SATA
