Description

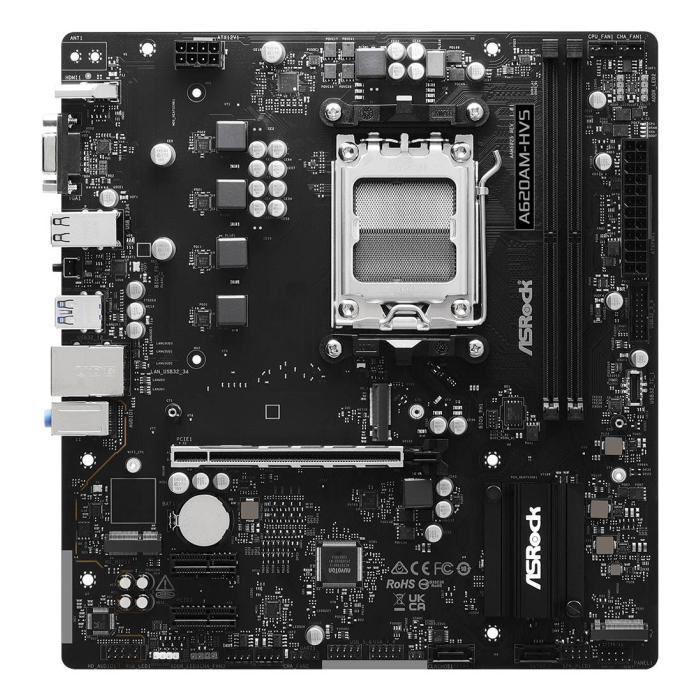

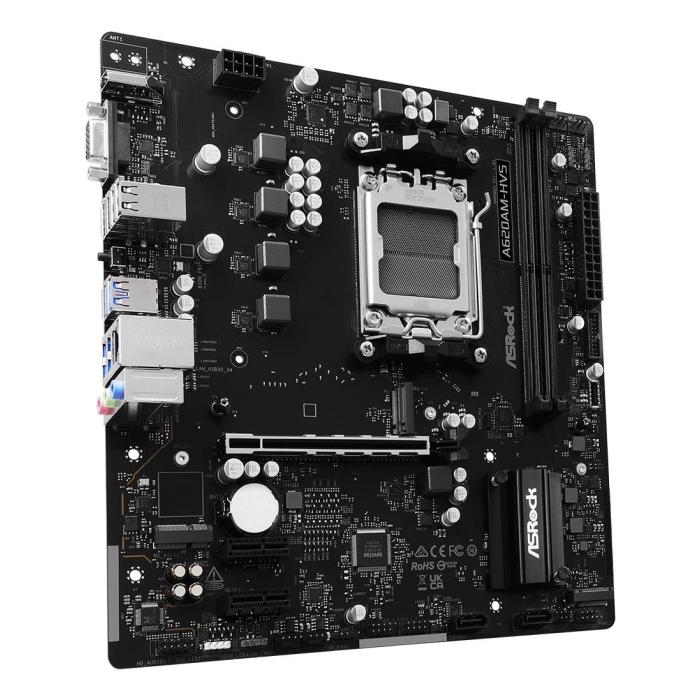

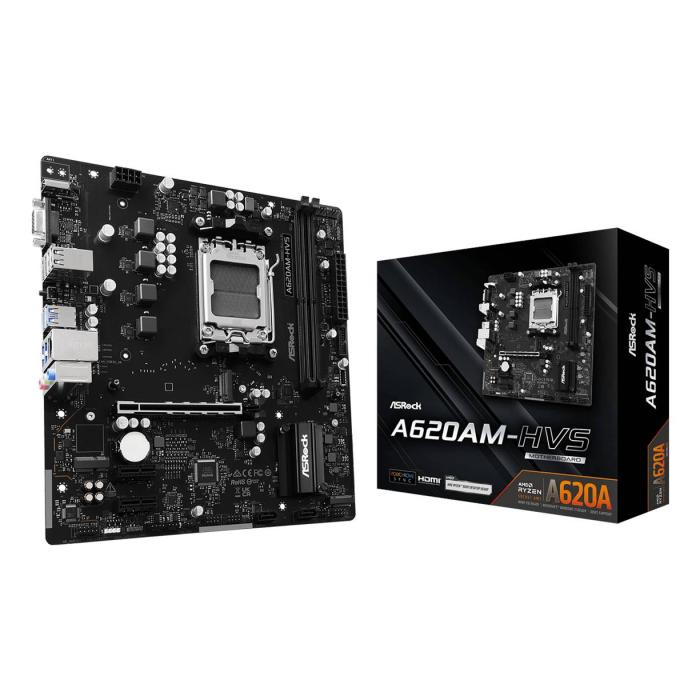

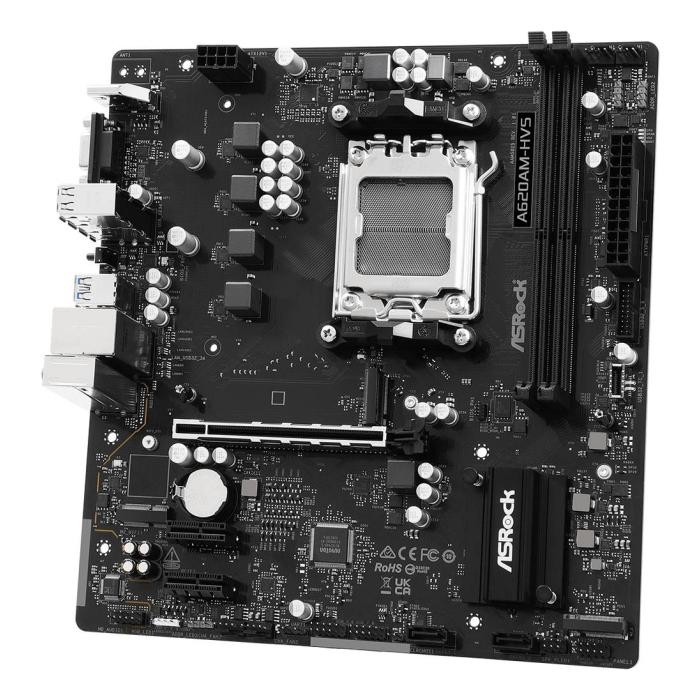

The ASRock A620AM-HVS motherboard is designed for the AM5 socket and supports AMD Ryzen processors from the 7000, 8000 and 9000 series. It features two DIMM slots for unbuffered, non-ECC DDR5-SDRAM memory, with a maximum capacity of 128 GB and a supported clock speed of up to 6800 MHz in dual-channel configuration. As for storage, it is compatible with HDD and SSD drives via PCI Express 3.0, PCI Express 4.0 and SATA III interfaces, supports RAID levels 0, 1 and 10 and allows up to four drives to be connected. Its micro ATX form factor makes it suitable for compact builds. It also features High Dynamic Range (HDR) support in the graphics section.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speed (max): 6800 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: PCI Express 3.0, PCI Express 4.0, SATA III
- Number of storage drives supported: 4
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 3840 x 2160 pixels
- HDCP: Yes
- HDCP version: 2.3
- High Dynamic Range (HDR) supported: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 3
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 1

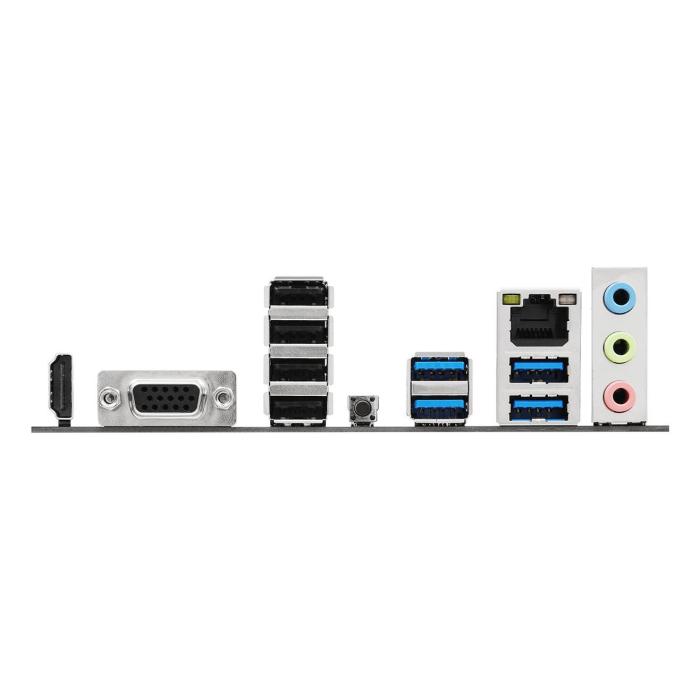

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 3
- Line-in: Yes
- Microphone in: Yes
- USB connector type: USB Type-A
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: No
- Top Wi-Fi standard: Not available
Features
- Motherboard chipset: AMD A620A
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 244 mm
- Depth: 229 mm
Packaging content
- Cables included: SATA
- Screws included: Yes
Technical details
- Compliance certificates: CE, Federal Communications Commission (FCC)
