Description

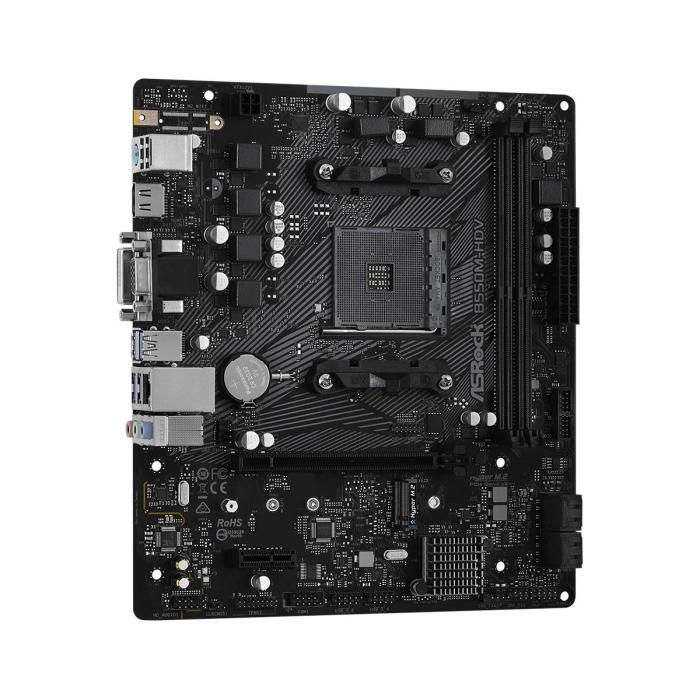

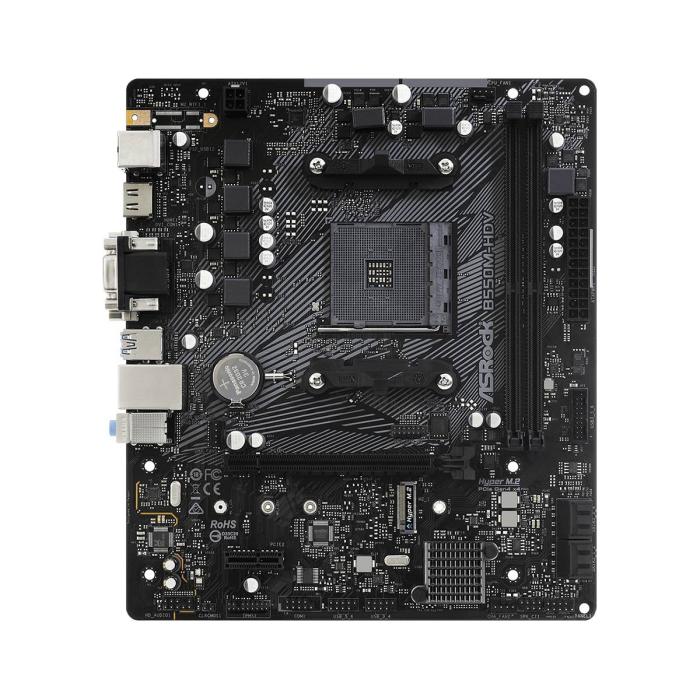

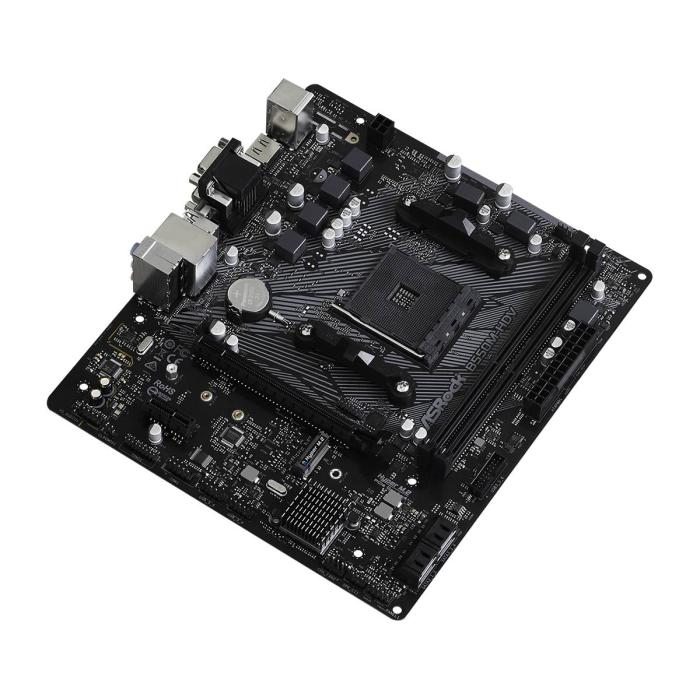

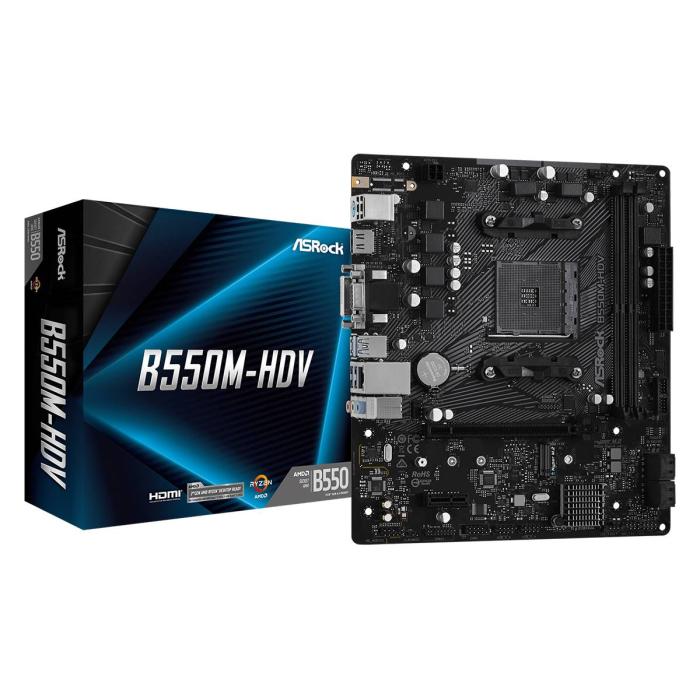

ASRock B550M-HDV motherboard in micro ATX format with AM4 socket for AMD Ryzen 3000 series processors, designed for compact builds without compromising on the essentials. This variant incorporates two DIMM slots supporting up to 64 GB of DDR4 memory in dual channel, with compatibility for ECC and non-ECC modules depending on the installed CPU type. In terms of storage, it offers SATA III connections and one M.2 interface, while graphics management is handled by an integrated Radeon Vega adapter, with support for DirectX 12 and HDCP. The front panel audio connector is present to facilitate the cabling of your case, and its micro ATX design fits into reduced-size towers.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4533, 4600, 4666 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
Graphics
- On-board graphics card: Yes
- Graphics card family: AMD
- Graphics card: Radeon Vega
- HDCP: Yes
- DirectX version: 12.0
Internal I/O
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- Peripheral (Molex) power connectors (4-pin): 1
- TPM connector: Yes
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes

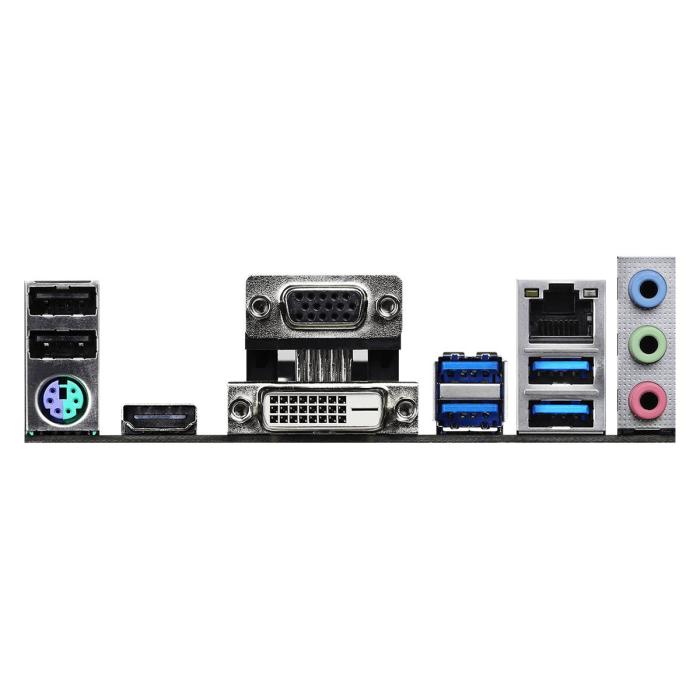

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DVI-D ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wake-on-LAN ready: Yes
- Wi-Fi: No
Features
- Motherboard chipset: AMD B550
- Audio chip: Realtek ALC887
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
BIOS
- BIOS type: UEFI AMI
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 230 mm
- Depth: 201 mm
- Height: 70 mm
Packaging content
- Drivers included: Yes
Other features
- Weight: 465 g
