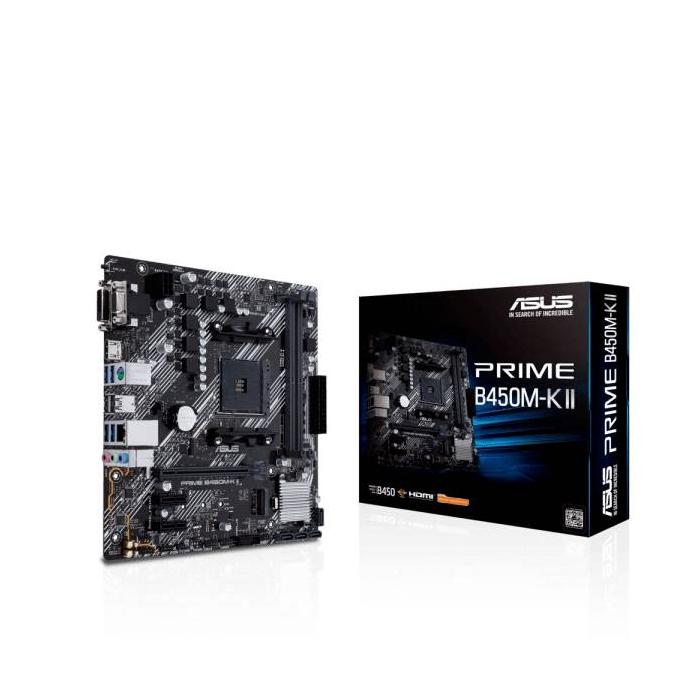

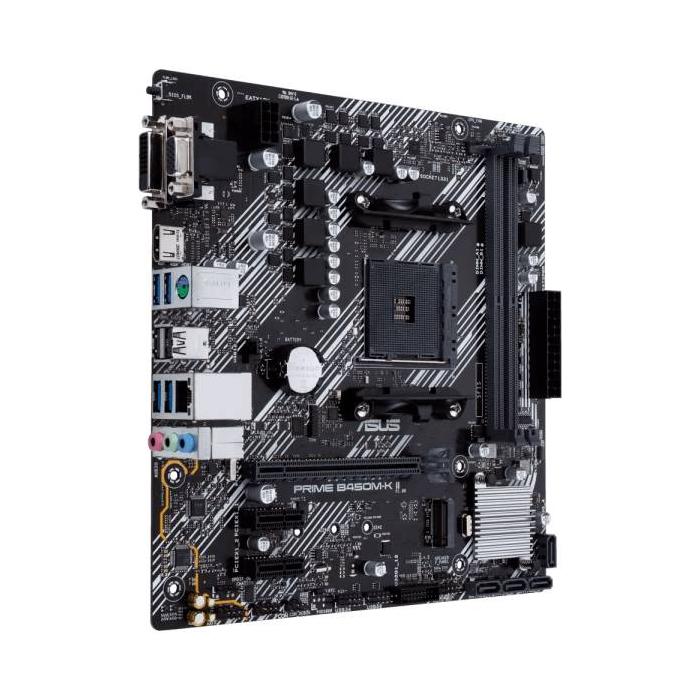

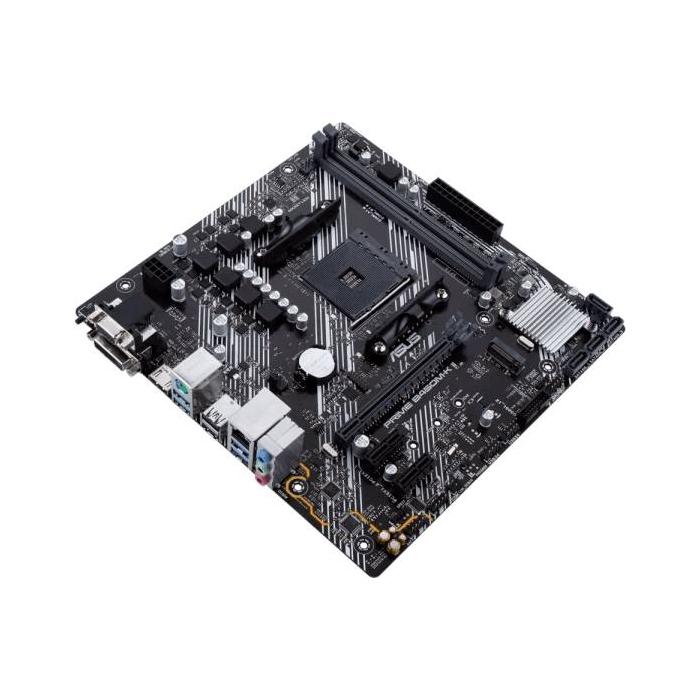

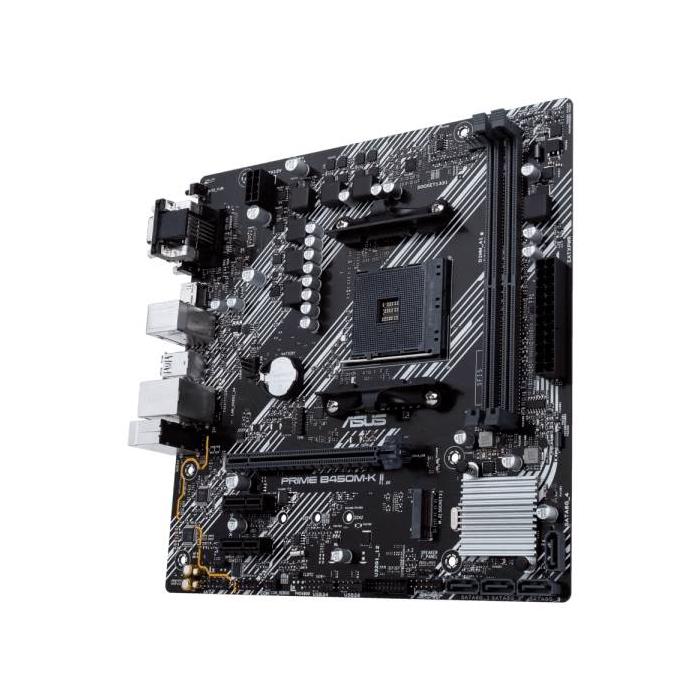

Name: ASUS Prime B450M-K II AMD B450 Socket AM4 micro ATX
Brand: ASUS
Price: 88.55 USD
Availability: InStock

ASUS Prime B450M-K II AMD B450 Socket AM4 micro ATX

$88.55

$88.55 without VAT

Amount

Brand: ASUS

SKU: 86341 PRC: 303475 EAN: 4718017932387 PN: 90MB1600-M0EAY0

Description

ASUS Prime B450M-K II, AMD, Socket AM4, AMD Ryzen 2000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series, DDR4-SDRAM, 64 GB, DIMM

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 2000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series

Memory

Maximum internal memory: 64 GB
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
ECC сompatibility: ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz

Storage controllers

Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
RAID levels: 0, 1, 10

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Audio connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 1
Headphone outputs: 1
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: AMD B450
Audio chip: Realtek ALC887-VD2
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 6.1

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 259 mm

Packaging content

Cables included: SATA
Bundled software: Armoury Crate, AI Suite 3, Performance and Power, Saving Utility, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, PC Cleaner, EZ update,
