Description

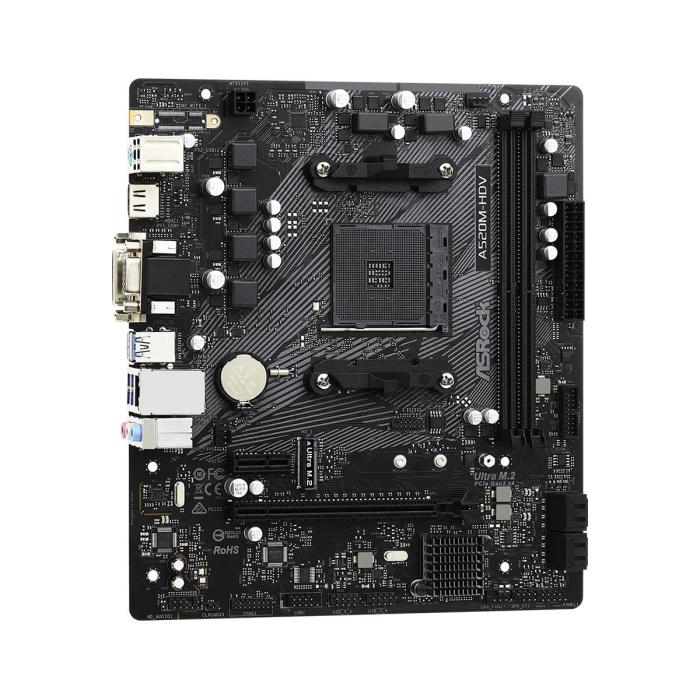

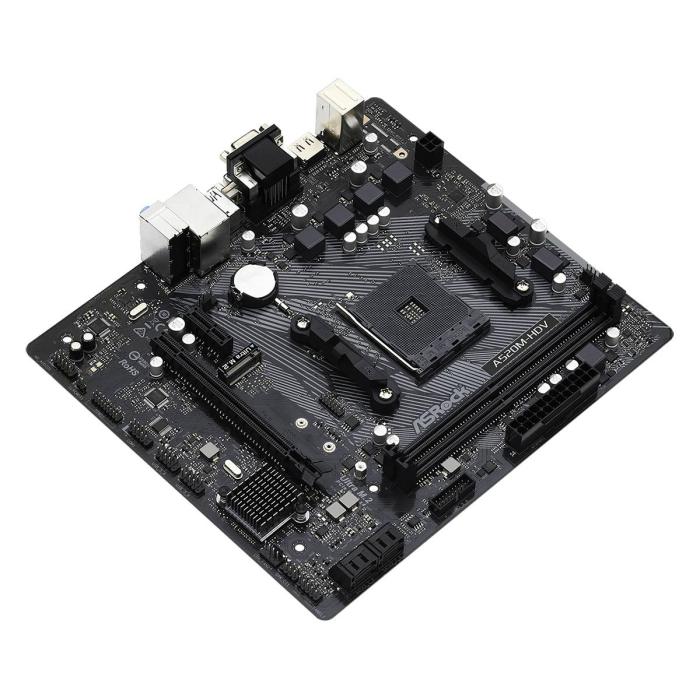

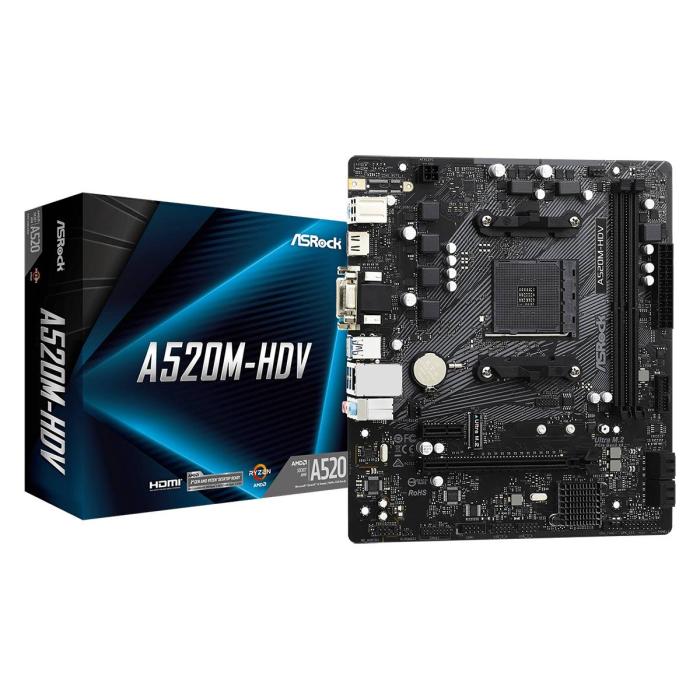

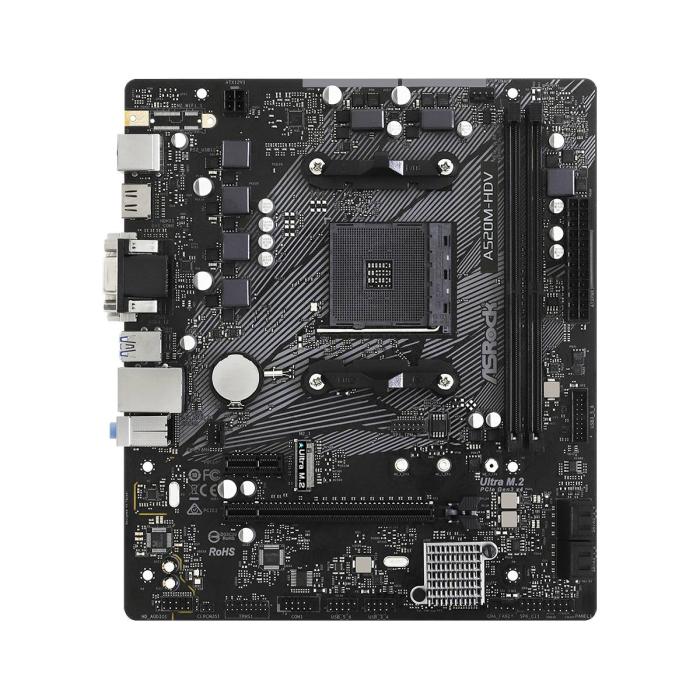

The ASRock A520M-HDV motherboard, with an AM4 socket and micro ATX form factor, is compatible with AMD Ryzen 3000 series processors and mounts Radeon Vega graphics chips integrated into the AMD chipset. It offers two DIMM slots for unbuffered DDR4-SDRAM memory, with a maximum capacity of 64 GB in dual-channel configuration and no ECC support. For storage, it provides M.2 and SATA III interfaces, supporting up to five hard drives, and features two internal USB 2.0 headers, two chassis fan headers, and a front panel audio connector. Its micro ATX design facilitates integration into compact cases, with the 24-pin ATX power connector included.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 5
Graphics
- Graphics card family: AMD
- Graphics card: Radeon Vega
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1

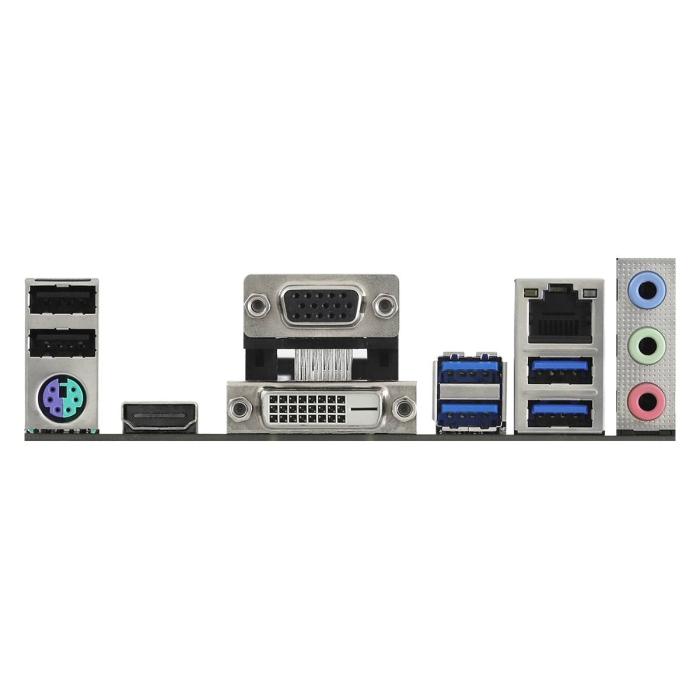

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wake-on-LAN ready: Yes
- Wi-Fi: No
Features
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
BIOS
- BIOS type: UEFI AMI
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 230 mm
- Depth: 201 mm
