Description

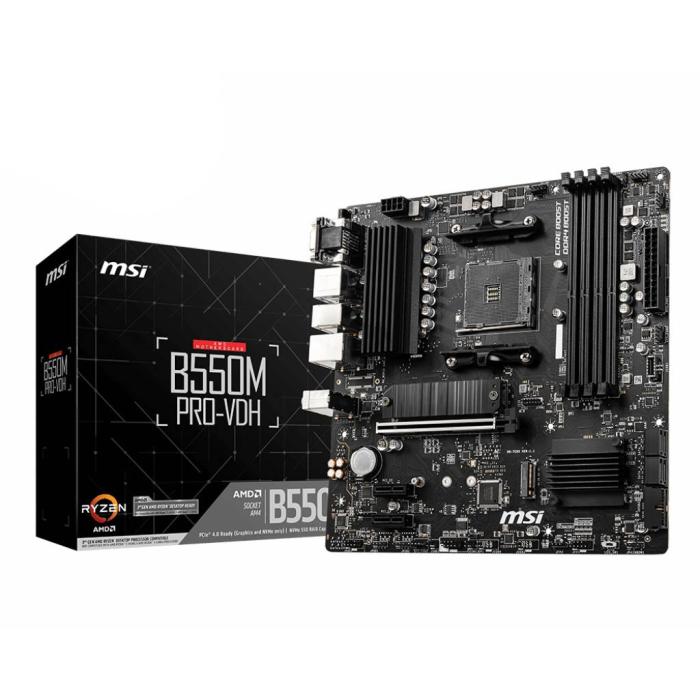

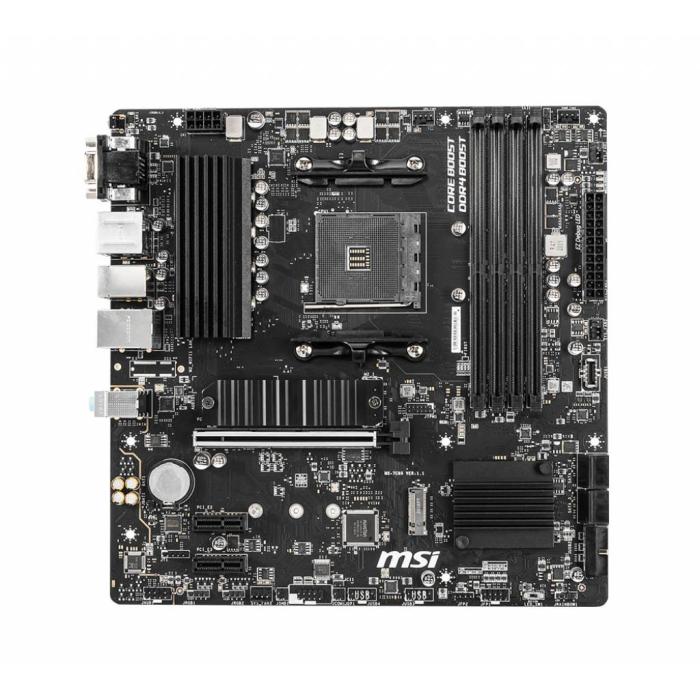

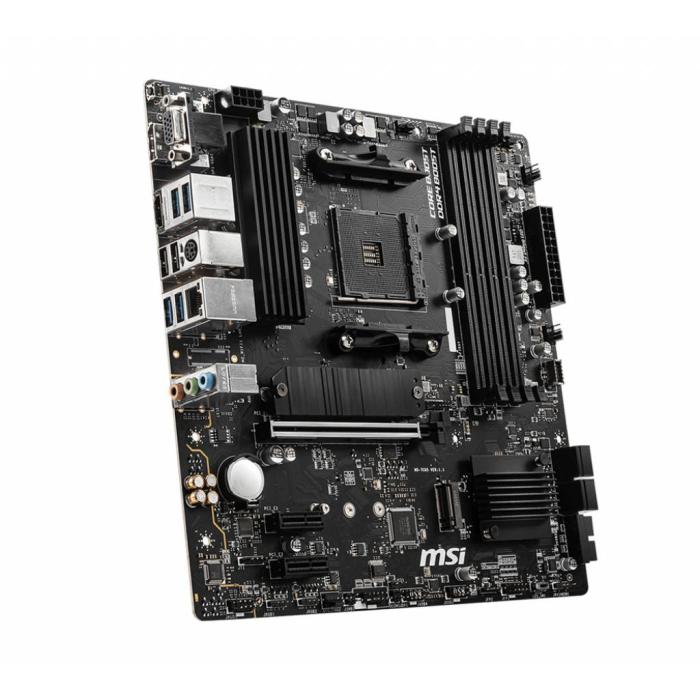

The MSI B550M PRO-VDH motherboard is a micro ATX model with an AM4 socket, designed for building systems with AMD Ryzen 3000 Series processors. It supports a single processor and offers four DIMM slots for DDR4-SDRAM memory, with a maximum capacity of 128 GB and dual-channel operation. It is compatible with ECC and non-ECC memory, and with unbuffered memory, as well as supporting clock speeds of 1866, 2133, 2400, 2667, 2800 and 2933. As for storage, it allows connecting HDD and SSD drives via SATA III interface and configuring RAID 0, 1 and 10 levels. Its integrated graphics reaches a maximum resolution of 4096 x 2160 pixels, and it includes a front panel audio connector. With a weight of 1 kg and dimensions of 244 x 65 x 244 mm, it is a compact base for small form factor builds.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
Memory
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: SATA III
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- Chassis intrusion connector: Yes
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

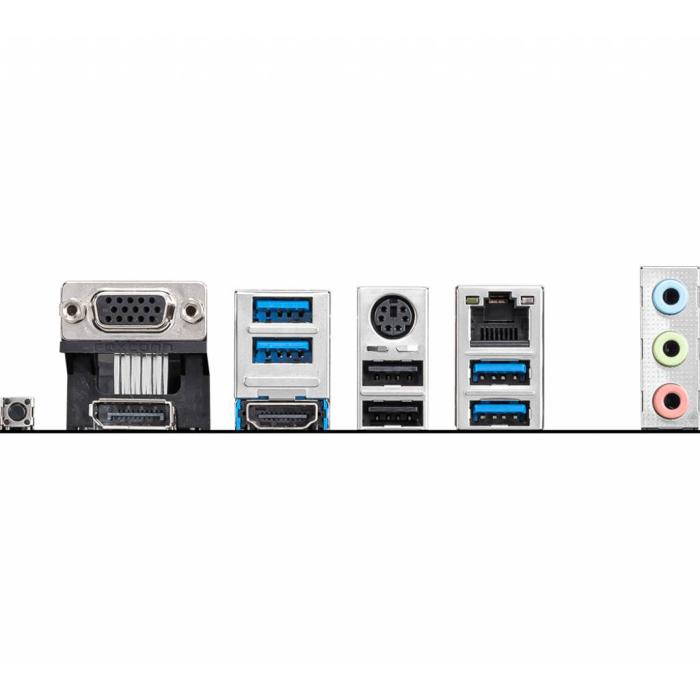

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek 8111HN
- Wi-Fi: No
Features
- Motherboard chipset: AMD B550
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
BIOS
- Clear CMOS jumper: Yes
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
- Height: 65 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
Other features
- Weight: 1 kg
