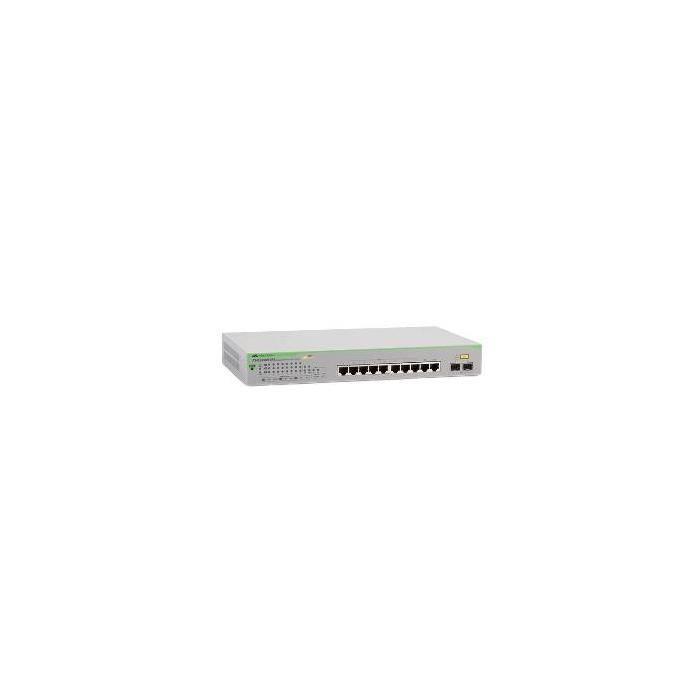

Name: Allied Telesis GS950/10PS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, Grey
Brand: ALLIED TELESIS
Price: 425 EUR
Availability: InStock

Allied Telesis GS950/10PS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, Grey

425.00 €

351.24 € without VAT

Amount

Brand: ALLIED TELESIS

SKU: 120710 PRC: 434491 EAN: 767035219158 PN: AT-GS950/10PS

Description

WebSmart switch 10 port PoE+ GigT 10 POE capable + 2 SFP Combo ports

Specifications

Management features

Switch type: Managed
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: RFC 1213 MIB-II, RFC 1215 TRAP MIB, RFC 1493 Bridge MIB, RFC 2863, RFC 1643, RFC 2618 RMON, RFC 2674 IEEE 802.1Q, RFC 2096 IP

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 10
Combo SFP ports quantity: 2
Fiber ports quantity: 2
Fiber optic connector: SFP
Console port: RJ-45
Power connector: DC-in jack

Network

VLAN support: Yes
Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Rate limiting: Yes

Optical fiber

Fiber ethernet cabling technology: 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX
Fiber type: Multi-mode

Data transmission

Switching capacity: 20 Gbit/s
Throughput: 14.88 Mpps
MAC address table: 8000 entries

Security

DHCP features: DHCP client, DHCP server
IGMP snooping: Yes
MAC address filtering: Yes

Multicast features

Multicast support: Yes

Design

Product colour: Green, Grey

Performance

Internal memory: 64 MB
Flash memory: 16 MB

Power

AC input voltage: 100 - 240 V
Power consumption (typical): 13.58 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 75 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m

Weight & dimensions

Width: 330 mm
Depth: 200 mm
Height: 44 mm
Weight: 1.9 kg

Certificates

Certification: RoHS Eu-RoHS China RoHS WEEE

Logistics data

Harmonized System (HS) code: 85176990
