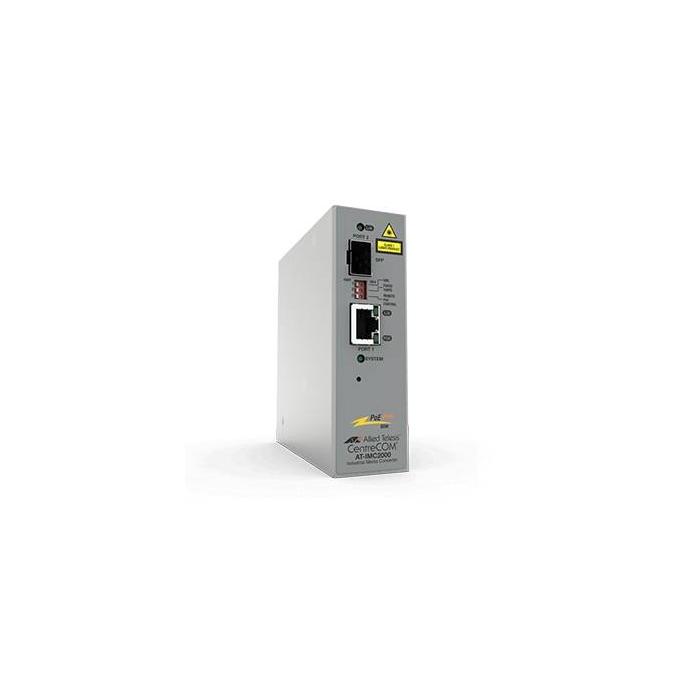

Allied Telesis AT-IMC2000TP/SP-980 network media converter 1000 Mbit/s 850 nm Grey
More info
Brand: ALLIED TELESIS
875.00 €Stock available: 0 units.
Unavailable
SKU:
83261
PRC:
268178
EAN:
767035210599
PN:
990-005565-980
Description
The Allied Telesis AT-IMC2000TP/SP-980 network media converter, in grey, connects Fast Ethernet and Gigabit Ethernet segments by combining 10Base-T, 100Base-T and 1000Base-T inputs with 100Base-X and 1000Base-X outputs. It offers a data transfer rate of 10, 100 and 1000 Mbit/s and a maximum speed of 1000 Mbit/s, with auto-negotiation and Auto MDI/MDI-X to adapt to the available cabling. Its store-and-forward operation, together with full and half duplex, allows traffic to be managed efficiently, and it supports VLANs and Jumbo frames of up to 10000 bytes. The packet forwarding rate reaches 14880 pps at 10 Mbps, 148800 pps at 100 Mbps and 1488000 pps at 1 Gbps, which supports stable performance at each network rate. It operates with a wavelength of 850 nm and a Tx power of between -9.5 and -4 dBmW. Its dimensions are 111 x 35 x 96 mm (width x height x depth) and its weight is 748 g.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 10Base-T, 100Base-T, 1000Base-T
- Converter output interface: 100Base-X, 1000Base-X
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (1 Gbps): 1488000 pps
- Jumbo frames support: Yes
- Jumbo frames: 10000
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Duplex system: Full, Half
Performance
- Wavelength: 850 nm
- Tx power (min): -9.5 dBmW
- Tx power (max): -4 dBmW
- Rx power (min): -17 dBmW
- Rx power (max): -3 dBmW
Features
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- International Protection (IP) code: IP30
- DIN rail mounting: Yes
Ports & interfaces
- Connectivity technology: Wired
- Fiber ports quantity: 1
- Fiber optic connector: SFP
- Power over Ethernet plus (PoE+) ports quantity: 1
Power
- Input voltage: 51 - 57 V
- Power over Ethernet (PoE): Yes
Weight & dimensions
- Width: 111 mm
- Depth: 96 mm
- Height: 35 mm
- Weight: 748 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
Certificates
- Compliance certificates: RoHS
- Safety: UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark)
- Certification: TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A
