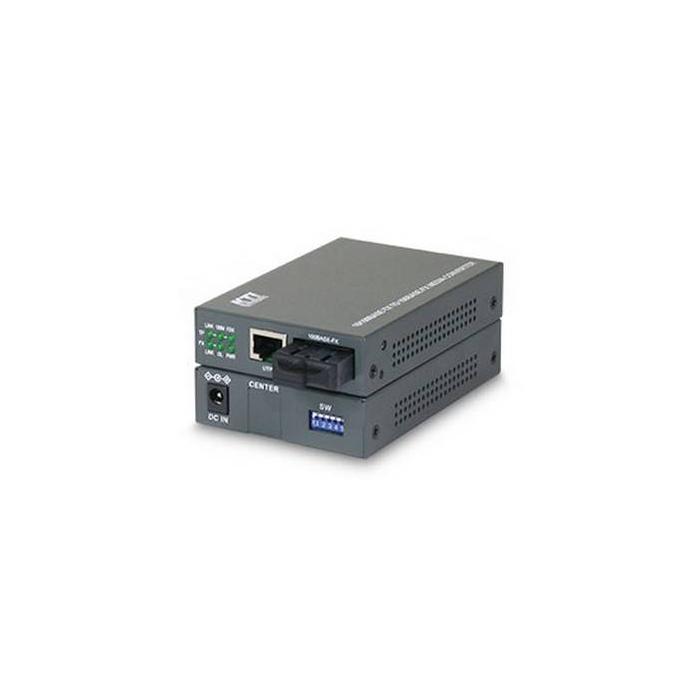

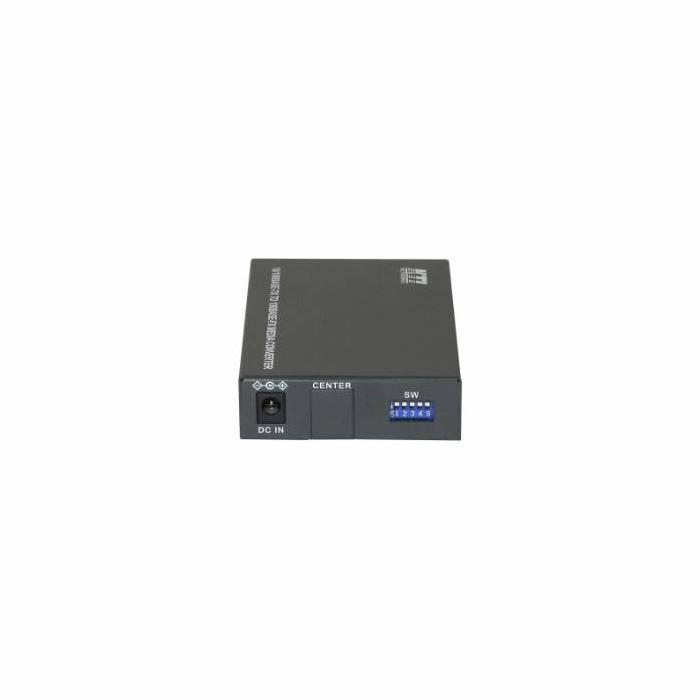

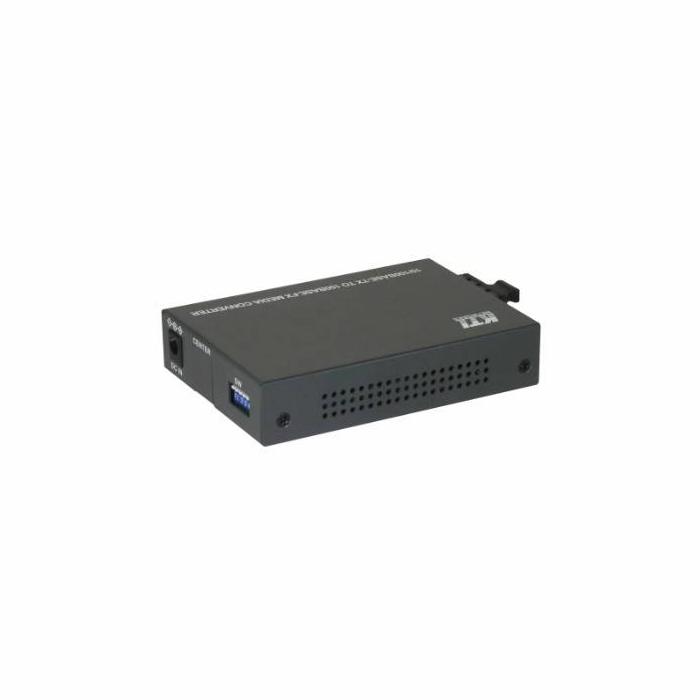

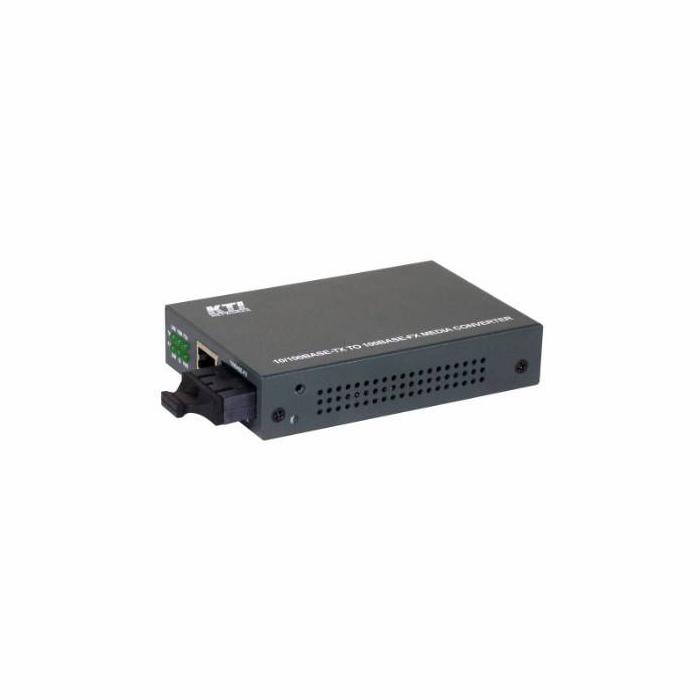

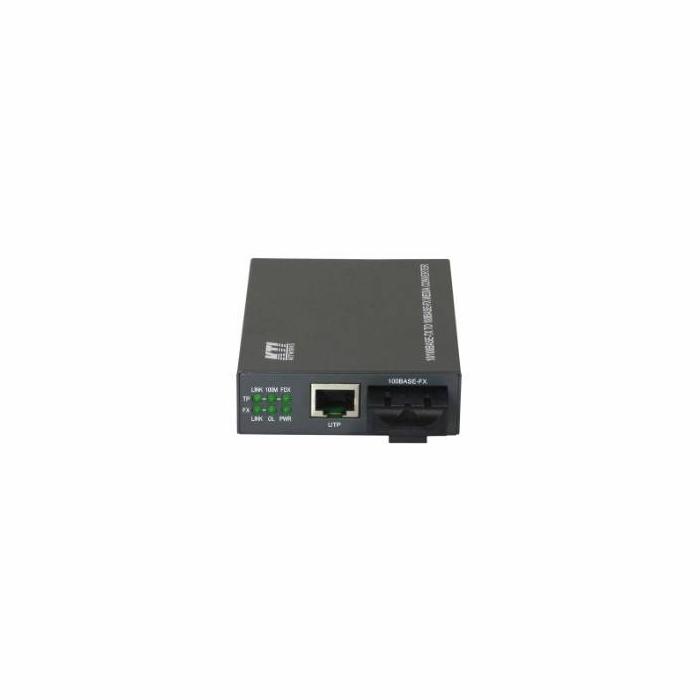

KTI Networks KC-300D network media converter 100 Mbit/s 1310 nm Multi-mode

$57.13
$57.13 without VAT

More info

Brand: KTI NETWORKS
SKU: 78835 PRC: 155891 EAN: 8716065190052 PN: KC-300D-T

Description

Specifications

Network

  • Maximum data transfer rate: 100 Mbit/s
  • Converter input interface: 100Base-TX
  • Networking standards: IEEE 802.3, IEEE 802.3u
  • Auto MDI/MDI-X: Yes
  • Duplex system: Full, Half

Performance

  • Maximum transfer distance: 2000 m
  • Wavelength: 1310 nm
  • Fiber mode structure: Multi-mode
  • Fiber cable diameters supported (core/cladding): 50/125 µm
  • Tx power (min): -19 dBmW
  • Tx power (max): -14 dBmW
  • Rx power (min): -31 dBmW
  • Rx power (max): -14 dBmW

Features

  • Internal: No
  • LED indicators: Link, Status

Ports & interfaces

  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 2
  • Fiber optic connector: ST
  • DC-in jack: Yes

Power

  • Power consumption (typical): 2 W

Weight & dimensions

  • Weight: 210 g

Operational conditions

  • Operating temperature (T-T): -5 - 50 °C
  • Storage temperature (T-T): -20 - 80 °C
  • Operating relative humidity (H-H): 5 - 95%

Certificates

  • Certification: FCC B, CE B

Logistics data

  • Harmonized System (HS) code: 85176990

Other features

  • Dimensions (WxDxH): 108 x 72.5 x 23 mm
  • Full duplex: Yes
  • Fiber type: MMF
