Allied Telesis AT-IMC2000T/SP-980 network media converter 1000 Mbit/s 850 nm Grey
More info
Brand: ALLIED TELESIS
588.98 €
486.76 €
without VAT
incl. 21 % VAT
Stock available: 7 units.
Get it
on the
October 19
/
October 20
SKU:
110852
PRC:
267737
EAN:
767035210582
PN:
990-005564-980
Description

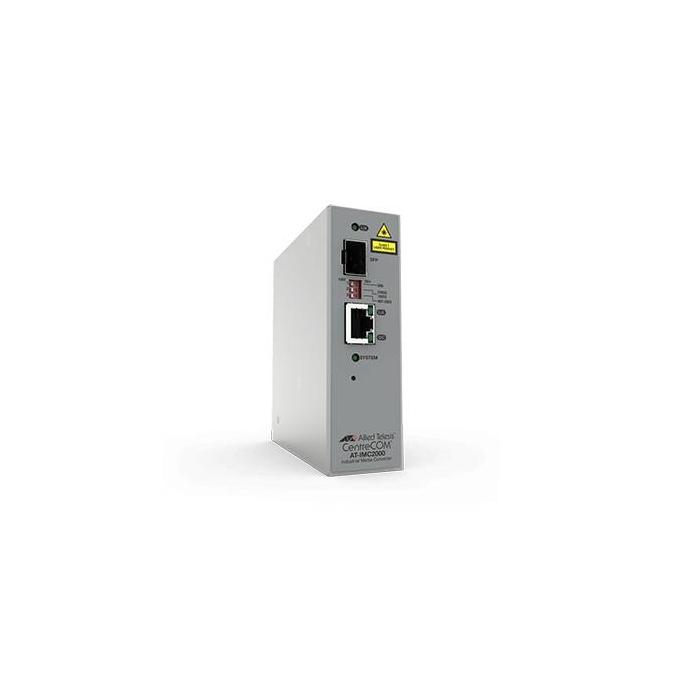

The Allied Telesis AT-IMC2000T/SP-980 network media converter in grey connects copper and fibre segments in Ethernet networks. It supports auto-negotiation and offers data transfer speeds of 10, 100 and 1000 Mbit/s, with a maximum of 1000 Mbit/s. Its input interface covers 10Base-T, 100Base-T and 1000Base-T, while the output interface works with 100Base-X and 1000Base-X, with a wavelength of 850 nm. It incorporates full and half duplex system, Auto MDI/MDI-X, VLAN support and store and forward. It handles Jumbo frames of 10000 bytes and reaches a packet forwarding rate of 1488000 pps at 1 Gbps, 148800 pps at 100 Mbps and 14880 pps at 10 Mbps. The Rx power ranges from -17 dBmW to -3 dBmW. Its dimensions are 111 x 35 x 96 mm (width x height x depth) and it weighs 748 g.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 10Base-T, 100Base-T, 1000Base-T
- Converter output interface: 100Base-X, 1000Base-X
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (1 Gbps): 1488000 pps
- Jumbo frames support: Yes
- Jumbo frames: 10000
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Duplex system: Full, Half
Performance
- Wavelength: 850 nm
- Tx power (min): -9.5 dBmW
- Tx power (max): -4 dBmW
- Rx power (min): -17 dBmW
- Rx power (max): -3 dBmW
Features
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- International Protection (IP) code: IP30
- DIN rail mounting: Yes
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SFP
Power
- Input voltage: 12 - 48 V
Weight & dimensions
- Width: 111 mm
- Depth: 96 mm
- Height: 35 mm
- Weight: 748 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
Certificates
- Compliance certificates: RoHS
- Safety: UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark)
- Certification: TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A
Logistics data
- Harmonized System (HS) code: 85176990
