Allied Telesis AT-GS950/48-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey

Return

Product 1 image

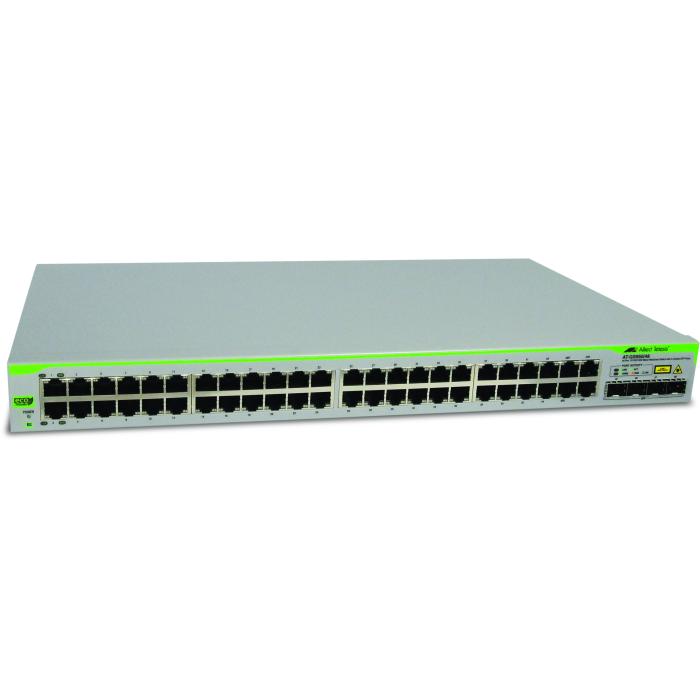

Allied Telesis AT-GS950/48-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey

Not avaliable

Allied Telesis AT-GS950/48-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 112407 PRC: 144725 EAN: 767035182513 PN: 990-003647-50

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: RFC 1213, RFC 1643, RFC 1493

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 4
Console port: RJ-45
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3
10G support: No
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
VLAN support: Yes

Data transmission

MAC address table: 8000 entries
Jumbo frames support: Yes
Packet buffer memory: 6 MB
Throughput: 14.88 Mpps

Security

DHCP features: DHCP client
IGMP snooping: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: IGMP, SNMP, FTP

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Grey
LED indicators: Yes

Performance

Internal memory: 32 MB
Flash memory: 4 MB
Mean time between failures (MTBF): 263000 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 444 mm
Depth: 322 mm
Height: 43.5 mm
Weight: 4.05 kg

Certificates

Certification: UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL

Logistics data

Harmonized System (HS) code: 85176990
