Description

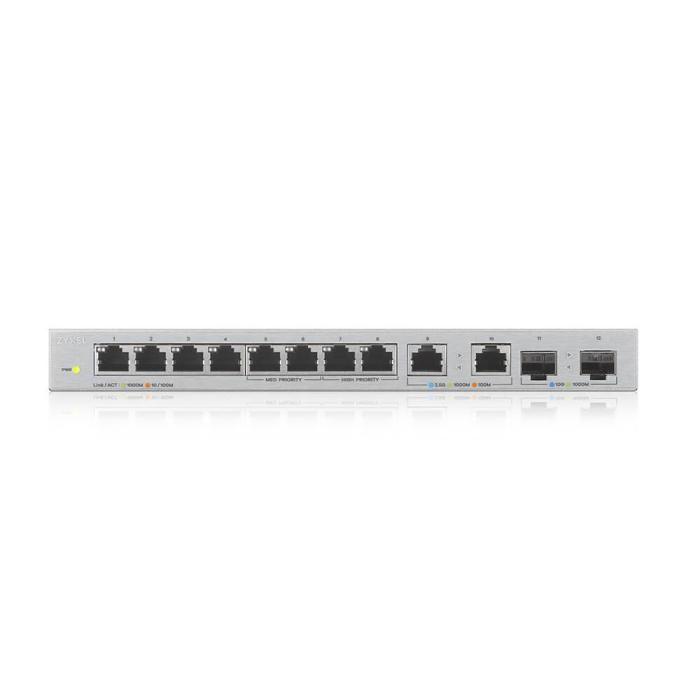

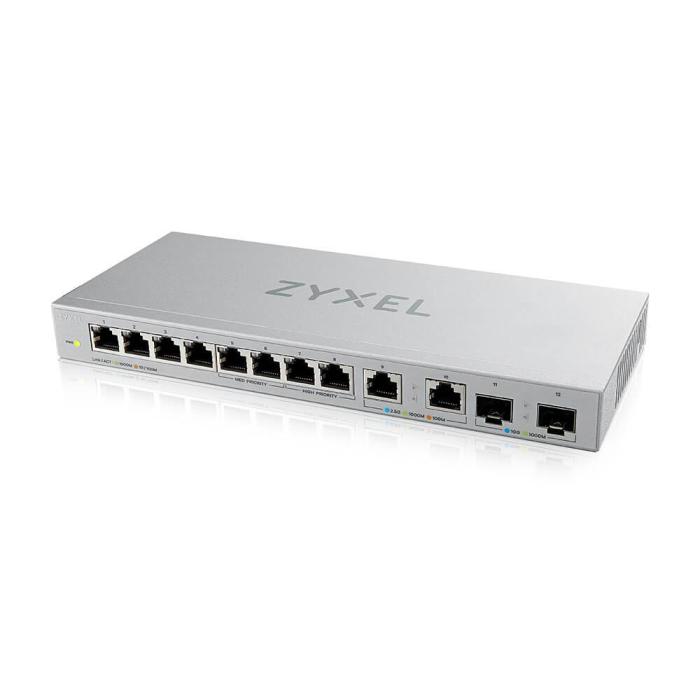

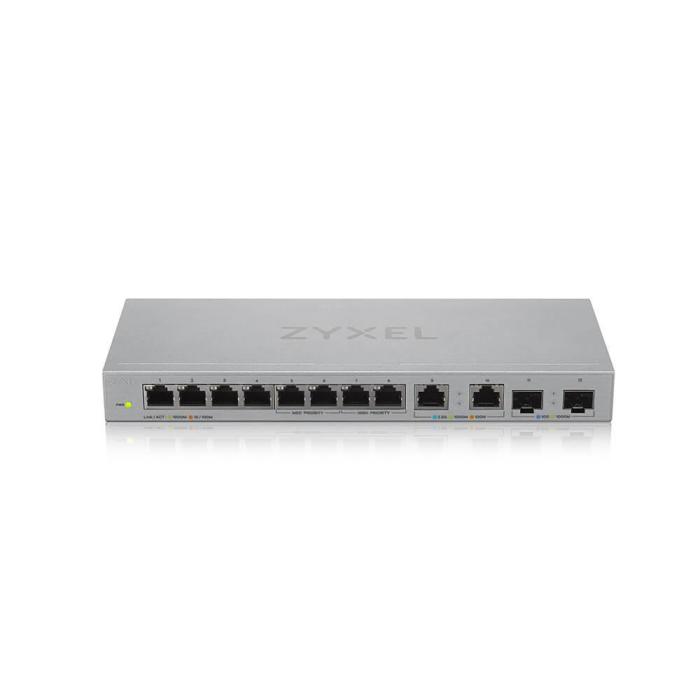

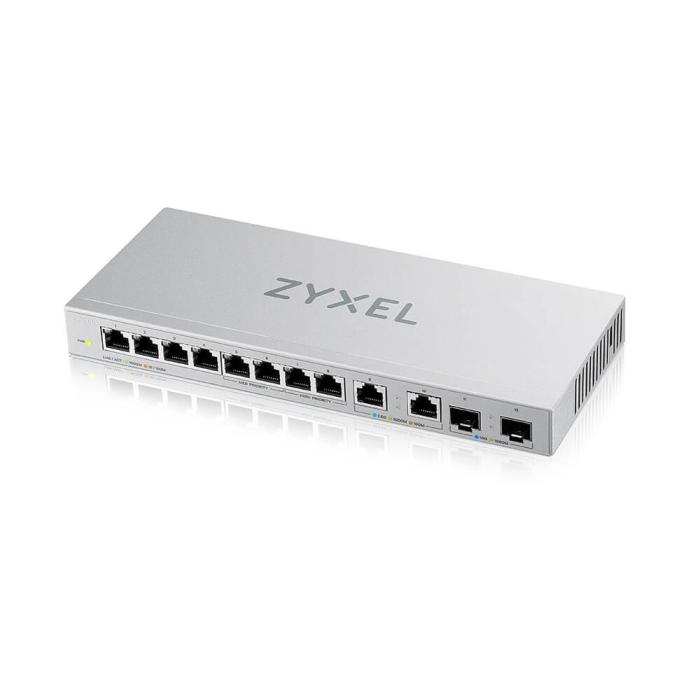

The Zyxel XGS1010-12 is an unmanaged switch with quality of service capability that puts a fast and stable wired network within your reach. It features a grey chassis measuring 250 x 24 x 104 mm and weighing 768 g, so you can place it on a surface or mount it taking up hardly any space. It brings together eight 10, 100 and 1000 Mbit/s Gigabit Ethernet RJ-45 ports, two 2.5G copper Ethernet ports and two SFP+ module slots to expand the connection. It includes flow control support, Auto MDI/MDI-X auto-negotiation and full duplex transmission, so traffic flows smoothly. Its switching capacity reaches 66 Gbit/s and the forwarding rate reaches 49 Mpps, with a MAC address table of 16000 entries. It supports jumbo frames of up to 12000 and a packet buffer of 1.5 MB, as well as an access control list to filter traffic according to your criteria.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces

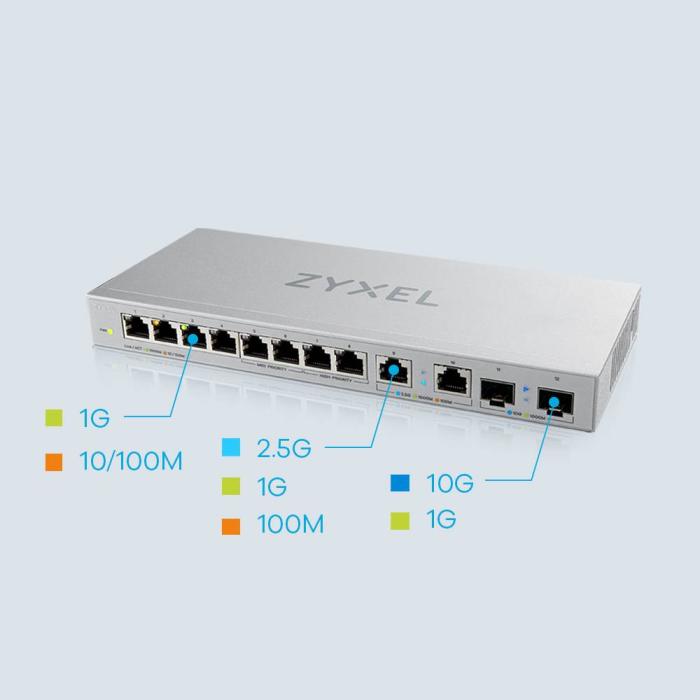

- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- 2.5G Ethernet (copper) ports quantity: 2
- SFP+ module slots quantity: 2
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- Switching capacity: 66 Gbit/s
- Forwarding rate: 49 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 1.5 MB
Security
- Access Control List (ACL): Yes
Design
- Rack mounting: No
- Product colour: Grey
- Reset button: Yes
- LED indicators: Yes
Power
- Power source: AC/DC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- DC input voltage: 12 V
- Input current: 1.5 A
- Power consumption (max): 15.61 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 250 mm
- Depth: 104 mm
- Height: 24 mm
- Weight: 768 g
Packaging data
- Package width: 306 mm
- Package depth: 225 mm
- Package height: 64 mm
- Package weight: 1.22 kg
Logistics data
- Harmonized System (HS) code: 85176990
