Description

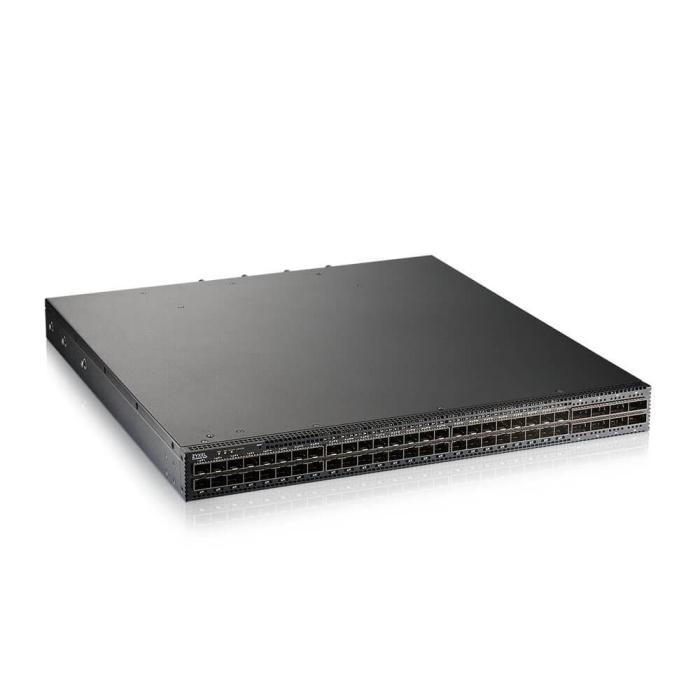

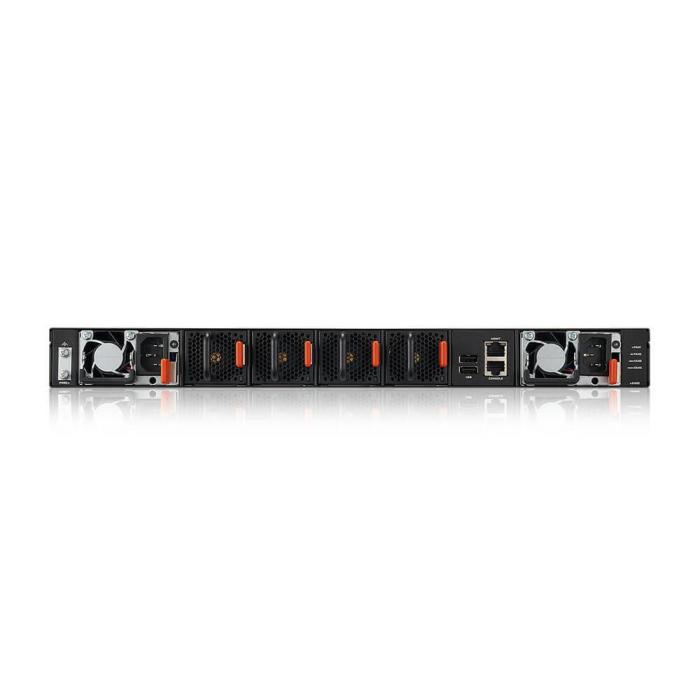

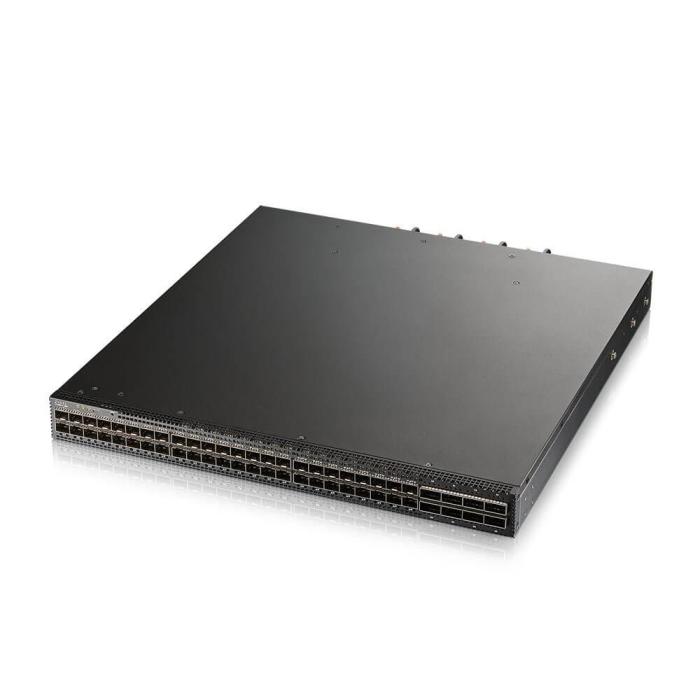

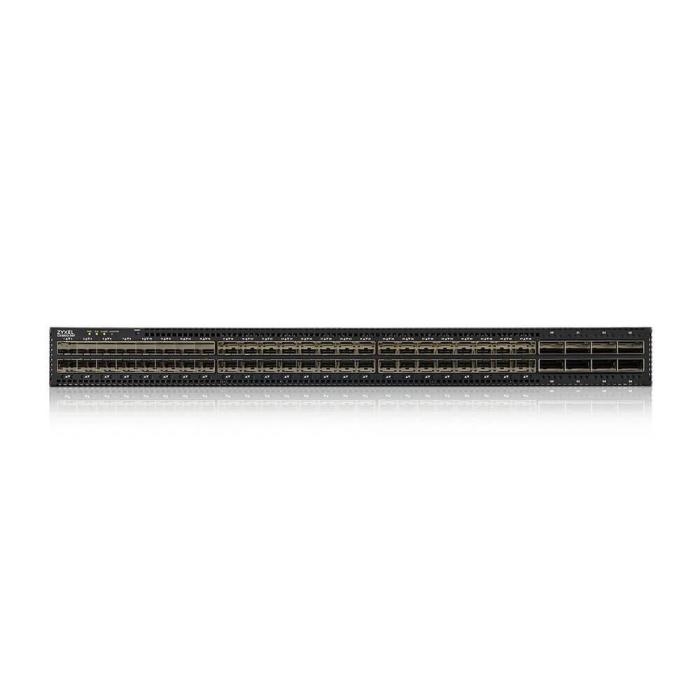

Managed layer 3 switch in 1U form factor with black finish, the Zyxel CX4800-56F offers 48 SFP28 ports and 8 QSFP28 ports for demanding network environments. Its web-based, cloud, and CLI management, along with MIB support and event logging, facilitate complete device control. It includes advanced features such as QoS, ARP inspection, storm control, and Spanning Tree Protocol, plus an RJ-45 console port and two USB Type-A ports for additional management. Connect this switch with AC/DC power supply to integrate a robust and manageable network solution into your infrastructure.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
- MIB support: Yes
Ports & interfaces
- Power connector: AC/DC
- Basic switching RJ-45 Ethernet ports type: No
- USB Type-A ports quantity: 2
- Number of management ports: 1 pc(s)
- Console port: RJ-45
- QSFP28 ports quantity: 8
- SFP28 ports quantity: 48
Network
- 10G support: Yes
- Port mirroring: Yes
- Policy-based routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 4000 Gbit/s
- MAC address table: 30000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 32 MB
Security
- DHCP features: DHCP relay, DHCP server, DHCP snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SSH-2, SSL/TLS
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
Performance
- Memory type: RAM / Flash
- Internal memory: 8000 MB
- Flash memory: 64 MB
- Mean time between failures (MTBF): 5900181.1 h
Power
- Power source: AC/DC
- Power supply included: Yes
- Number of power supply units: 2
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 95%
- Heat dissipation: 1122 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 489 mm
- Height: 45 mm
- Weight: 8.62 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Package width: 595 mm
- Package depth: 706 mm
- Package height: 206 mm
Logistics data
- Country of origin: Taiwan
