Description

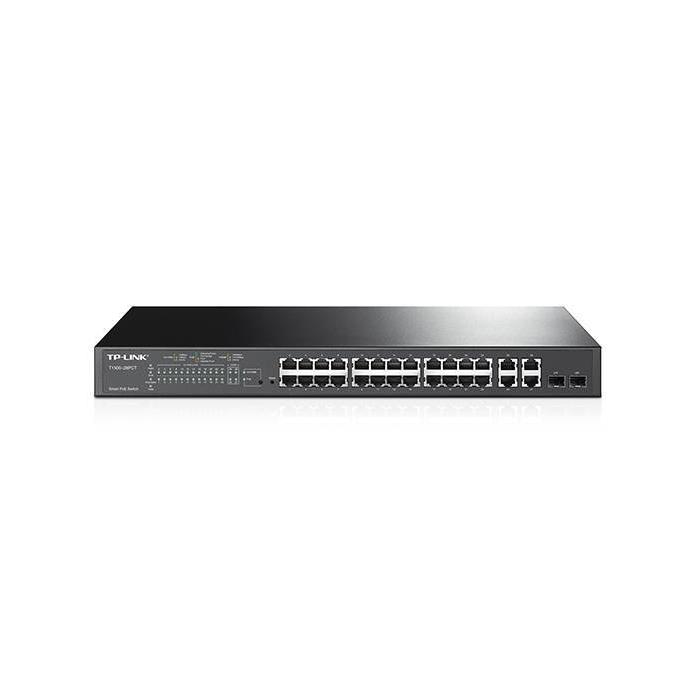

TP-Link Omada SL2428P managed switch in black, with dimensions of 440 x 44 x 180 mm. It is an L2 layer managed switch that combines 24 Fast Ethernet (10/100) RJ-45 ports with 4 copper Gigabit Ethernet ports and 2 combo SFP ports. It incorporates web-based management, as well as configuration of location settings via CLI, which facilitates its commissioning in network installations. It supports quality of service (QoS) and system event logging, useful for monitoring the device's activity. In the connectivity section, it offers spanning tree protocol, link aggregation, storm transmission control, rate limiting and port mirroring, along with ARP inspection. Its 1U form factor allows it to be mounted in a communications cabinet.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity: 24
- Gigabit Ethernet (copper) ports quantity: 4
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 80
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat5, Cat5e
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Number of VLANs: 512
Data transmission
- Packet buffer memory: 4.1 MB
- Switching capacity: 12.8 Gbit/s
- Throughput: 9.5 Mpps
- MAC address table: 8000 entries
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 9000
Security
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
- SSH/SSL support: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMP v1/v2c/v3, RMON, SNTP, TFTP
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Number of fans: 2 fan(s)
Performance
- Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
- Firmware upgradeable: Yes
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 291.6 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 24
- Total Power over Ethernet (PoE) budget: 250 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 995.09 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- Quick start guide: Yes
- Rack mount kit: Yes
Certificates
- Certification: CE, FCC, RoHS
