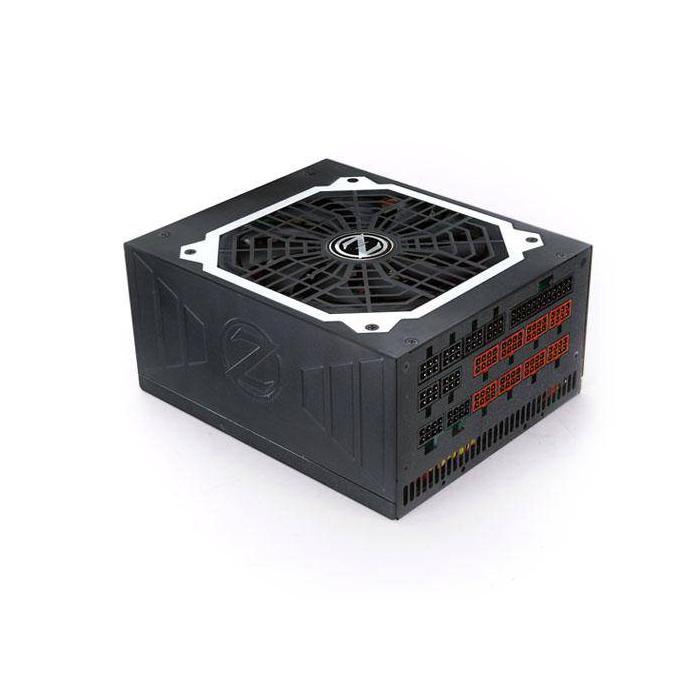

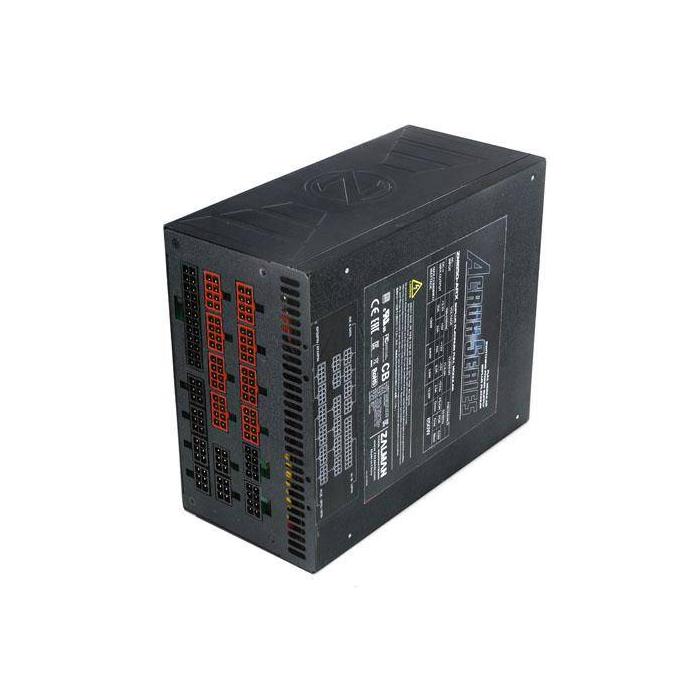

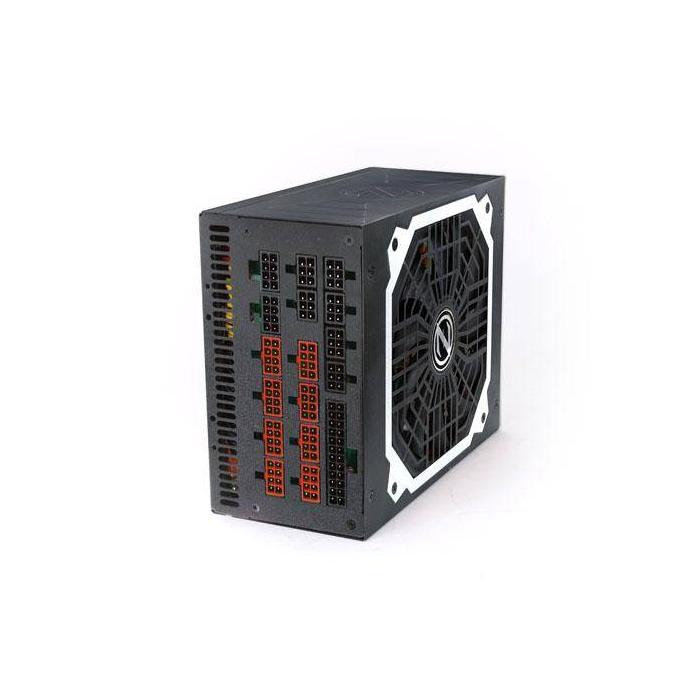

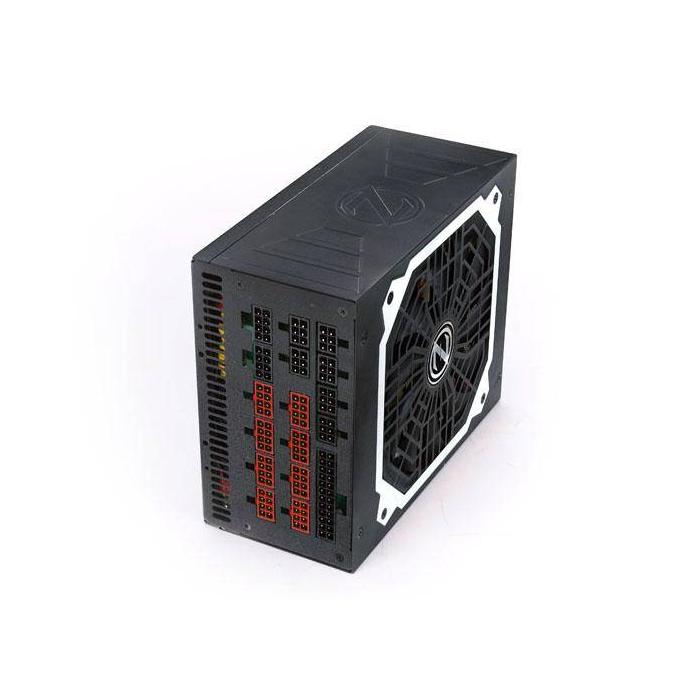

Zalman ZM1000-ARX 1000W Black power supply unit

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Zalman ZM1000-ARX 1000W Black power supply unit

174.00 €

143.80 € without VAT

Amount

Brand: ZALMAN

SKU: 78652 PRC: 153164 EAN: 8809213768774 PN: ZM1000-ARX

Description

ZM1000-ARX, 1000W

Specifications

Power

Total power: 1000 W
AC input voltage: 100 - 240
AC input frequency: 50 - 60
Input current: 6 - 12
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 996 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 25 A
Max output current (+12V): 83 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 94%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Cooling

Fan diameter: 13.5 cm

Ports & interfaces

Motherboard power connector: 20+4 pin ATX

Performance

Purpose: PC

Design

Colour of product: Black

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 150 mm
Depth: 180 mm
Height: 86 mm
Weight: 3.05 kg

Certificates

80 PLUS certification: 80 PLUS Platinum
