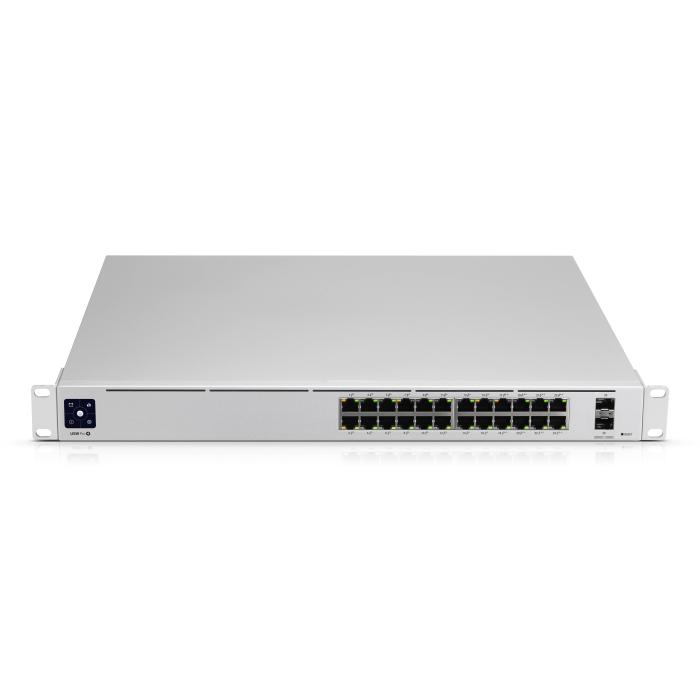

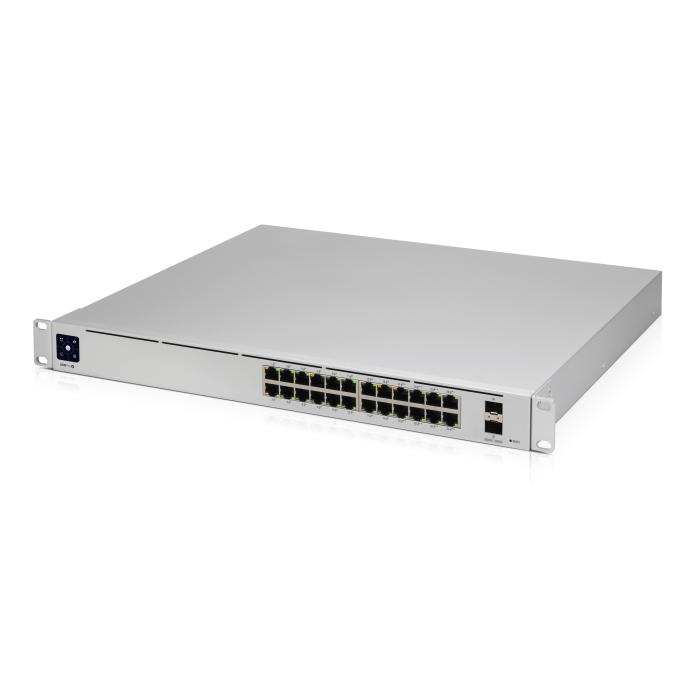

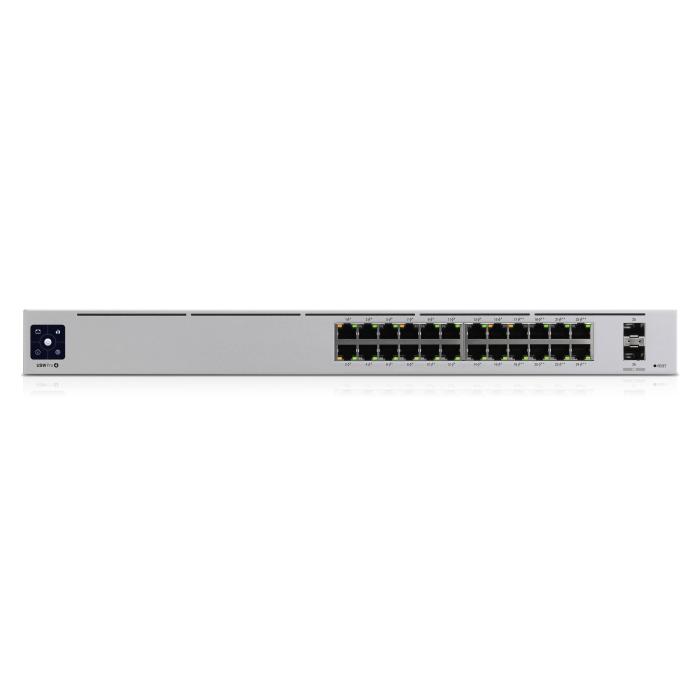

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

$637.01
$637.01 without VAT

More info

Brand: UBIQUITI NETWORKS
SKU: 83763 PRC: 274590 EAN: 817882027649 PN: usw-pro-24-poe

Description

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • System event log: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 2
  • Power connector: AC-in jack

Network

  • Networking standards: IEEE 802.3af, IEEE 802.3at
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • IPv4 routes: 64
  • VLAN support: Yes
  • Number of VLANs: 1000

Data transmission

  • Switching capacity: 88 Gbit/s
  • Throughput: 44000 Mpps
  • Forwarding rate: 65.472 Mpps
  • MAC address table: 16000 entries
  • Static route: Yes
  • Jumbo frames support: Yes
  • Packet buffer memory: 2 MB

Security

  • DHCP features: DHCP relay, DHCP server, DHCP snooping
  • IGMP snooping: Yes
  • Authentication type: IEEE 802.1x, RADIUS

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Silver
  • Reset button: Yes
  • LED indicators: Activity, Link, PoE, Speed, System
  • Display type: LCM

Power

  • Power source: AC
  • Power supply included: Yes
  • Redundant power supply (RPS) support: Yes
  • Number of power supply units: 1
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 450 W

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Power over Ethernet 4PPoE (PoE++) ports quantity: 8
  • Power over Ethernet (PoE) power per port: 64 W
  • Total Power over Ethernet (PoE) budget: 400 W

Operational conditions

  • Operating temperature (T-T): -5 - 40 °C
  • Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

  • Width: 442.4 mm
  • Depth: 285.4 mm
  • Height: 43.7 mm
  • Weight: 4.3 kg

Certificates

  • Certification: CE, FCC, IC

Logistics data

  • Harmonized System (HS) code: 85176990
