Description

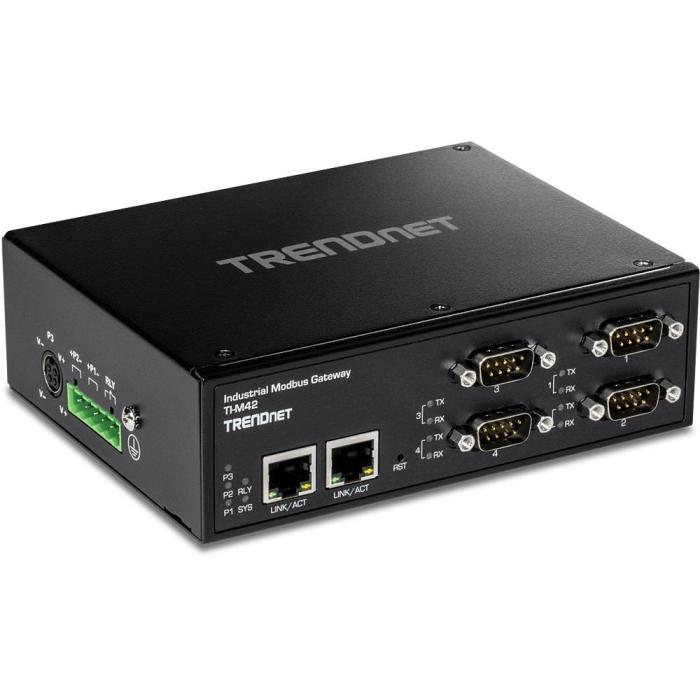

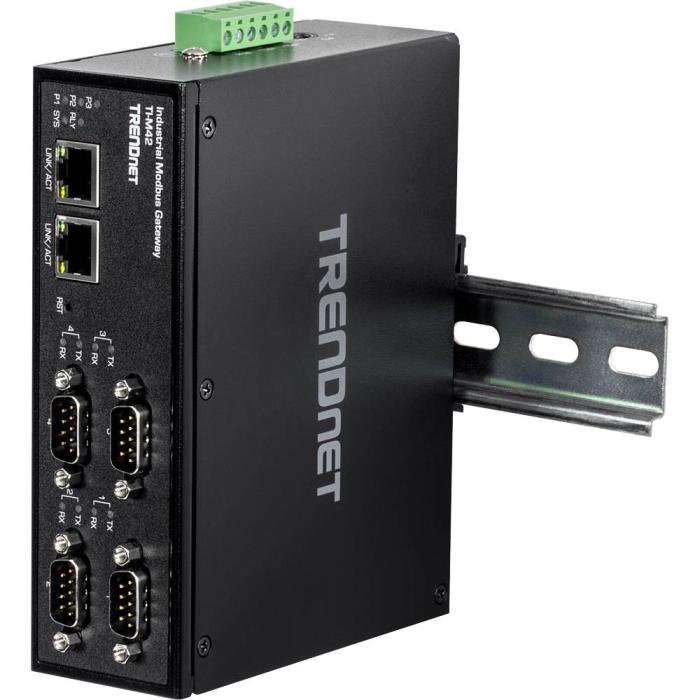

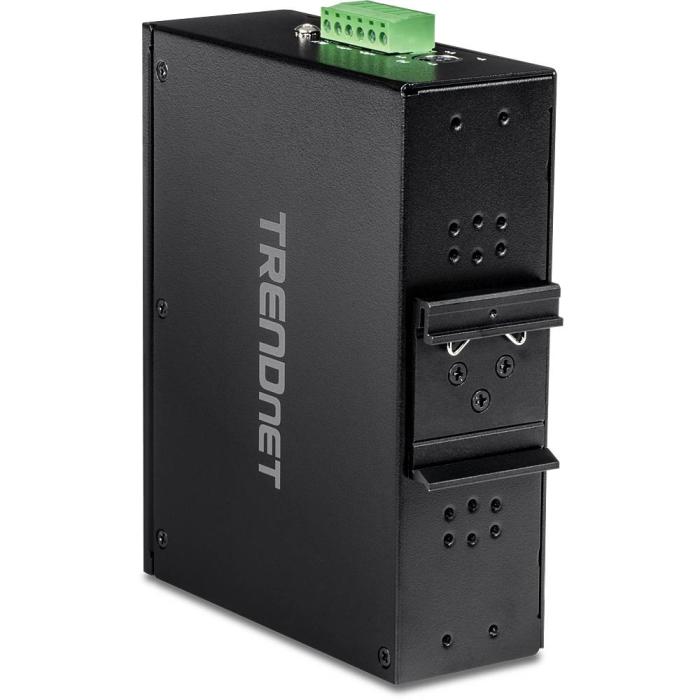

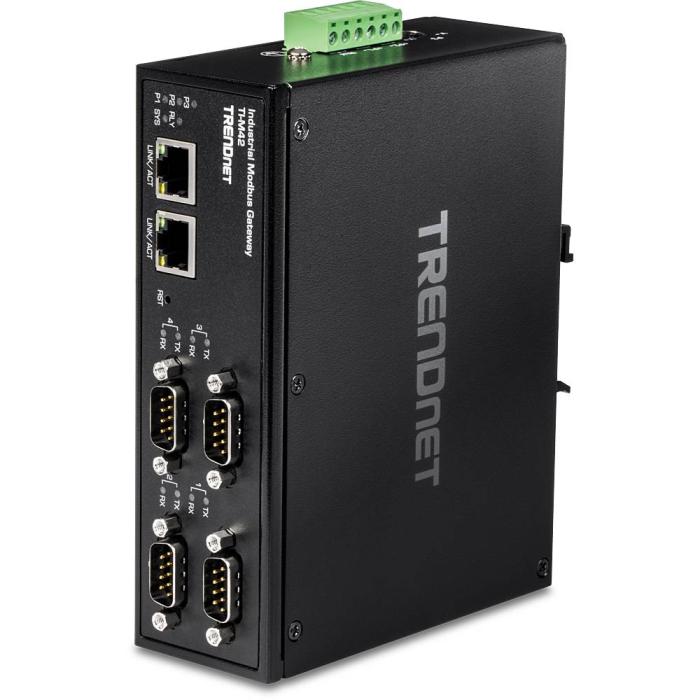

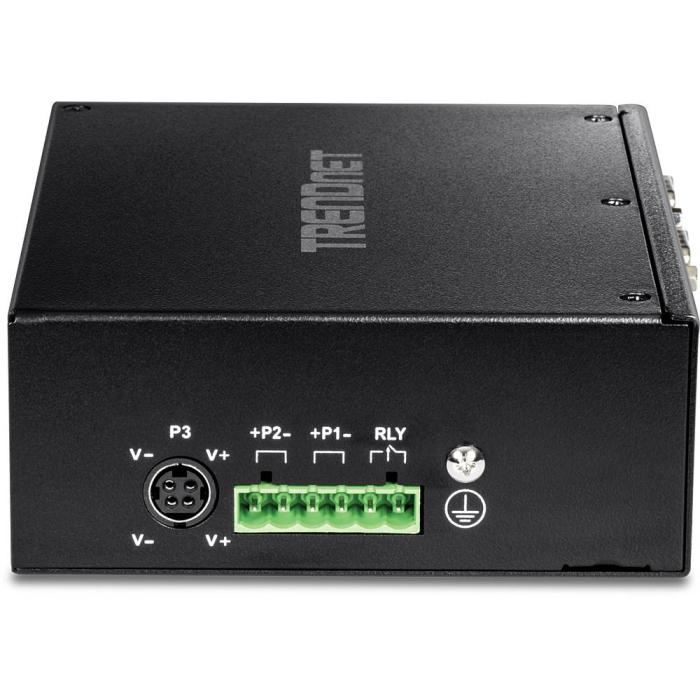

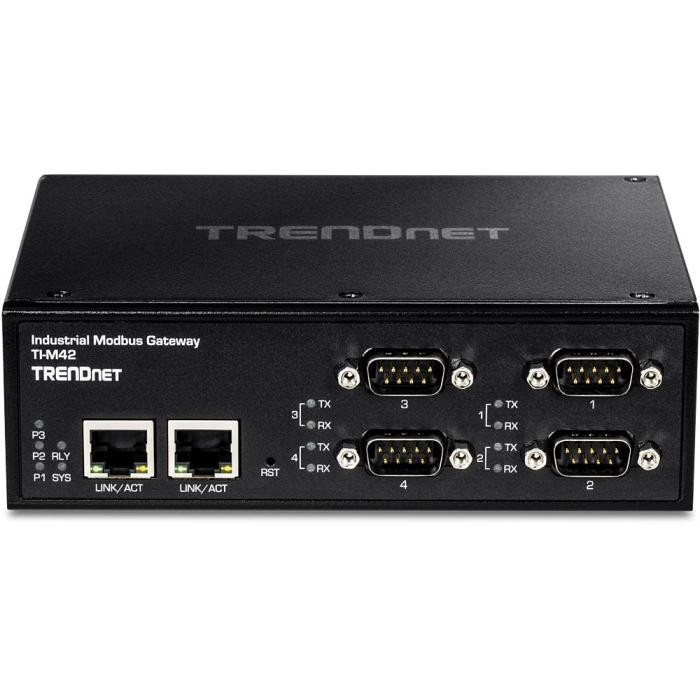

The Trendnet TI-M42 is an industrial gateway and controller with an RS-232/422/485 serial interface and four DB-9 ports, designed to manage Ethernet connections at 10 and 100 Mbit/s in accordance with IEEE 802.3, 802.3u and 802.3x standards. Its black housing with IP30 protection supports temperatures from -40 to 75 °C and relative humidity of up to 95%, making it suitable for demanding environments. It incorporates MAC address filtering to control access and status LED indicators, with 48 V power supply and a maximum consumption of 3.84 W. With dimensions of 103.5 mm in width, 81.5 mm in depth and 32 mm in height, and a weight of 512 g, this gateway facilitates the integration of serial devices into industrial networks without complications.
Specifications
Design
- Product colour: Black
- LED indicators: Yes
- International Protection (IP) code: IP30
Performance
- Control display unit: No
Network
- Ethernet LAN data rates: 10, 100 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Security
- MAC address filtering: Yes
Ports & interfaces
- Interface: 4 x Serial (DB-9) ports
- RS-232 ports: 4
- Serial interface type: RS-232/422/485
Power
- Power consumption (max): 3.84 W
- Input voltage: 48 V
Weight & dimensions
- Width: 103.5 mm
- Depth: 81.5 mm
- Height: 32 mm
- Weight: 512 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Operating relative humidity (H-H): 0 - 95%
