Description

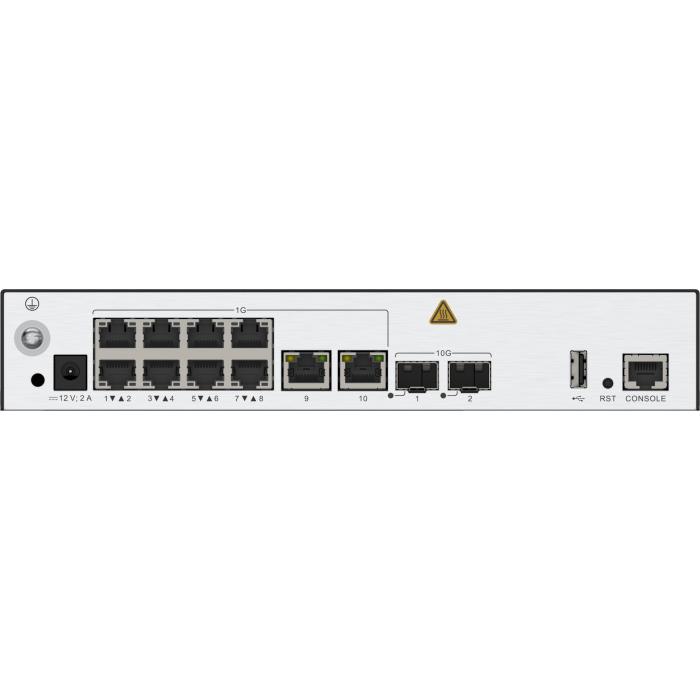

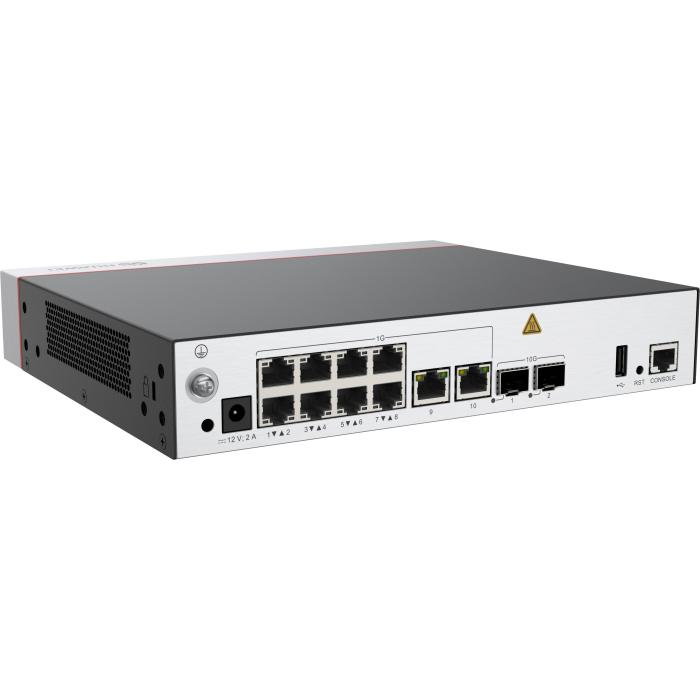

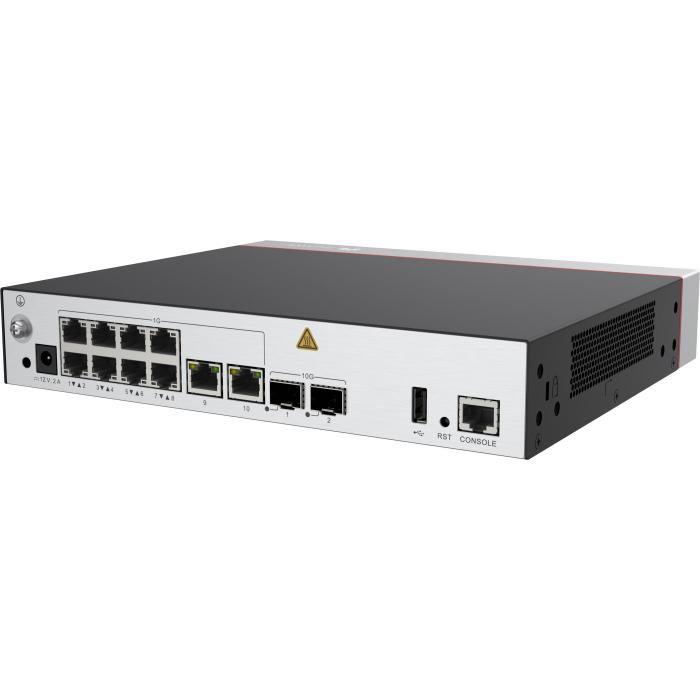

The HUAWEI eKit AC650-128AP gateway and controller comes in grey and offers Ethernet connectivity with data transfer speeds of 10, 100 and 1000 Mbit/s over 10/100/1000Base-T(X) cabling technology. It incorporates ten RJ-45 Ethernet LAN ports, two SFP+ ports, a USB 2.0 port and an RJ-45 console port, as well as a fibre channel. Its forwarding rate reaches 10000 Mpps, designed to handle intense traffic in demanding networks. In terms of security, it supports access control lists (ACL), MAC address filtering and VLAN support with up to 4096 VLANs. As a DHCP client and server, it streamlines automatic IP address assignment within the network. Web-based management allows the device to be configured from the browser, and LED indicators make it easy to read the status. All of this in a chassis of 250 x 43.6 x 210 mm (width x height x depth) and a weight of 1.47 kg.
Specifications
Design
- Product colour: Grey
- LED indicators: Yes
Performance
- Control display unit: No
Protocols
- DHCP server: Yes
- DHCP client: Yes
Network
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Forwarding rate: 10000 Mpps
- Cabling technology: 10/100/1000Base-T(X)
- Fibre Channel: Yes
Security
- Access Control List (ACL): Yes
- MAC address filtering: Yes
- VLAN support: Yes
- Number of VLANs: 4096
Ports & interfaces
- USB 2.0 ports quantity: 1
- Console port: RJ-45
- Ethernet LAN (RJ-45) ports: 10
- SFP+ ports quantity: 2
Management features
- Web-based management: Yes
Power
- Power consumption (max): 21 W
- Input voltage: 12 V
- Input current: 2 A
Weight & dimensions
- Width: 250 mm
- Depth: 210 mm
- Height: 43.6 mm
- Weight: 1.47 kg
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Operating altitude: -60 - 5000 m
