Description

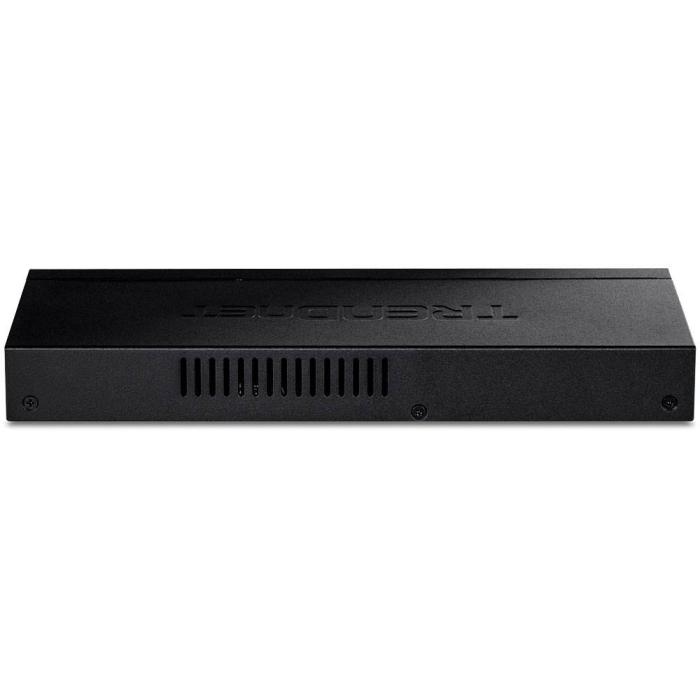

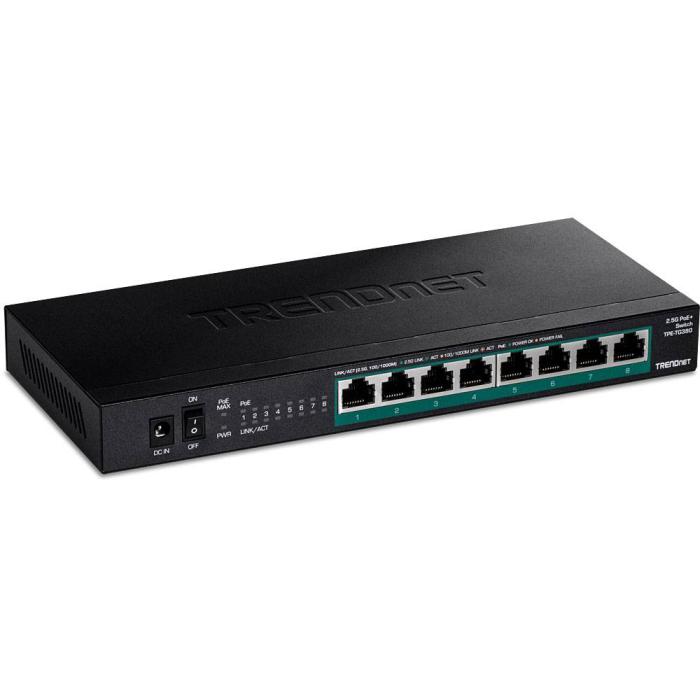

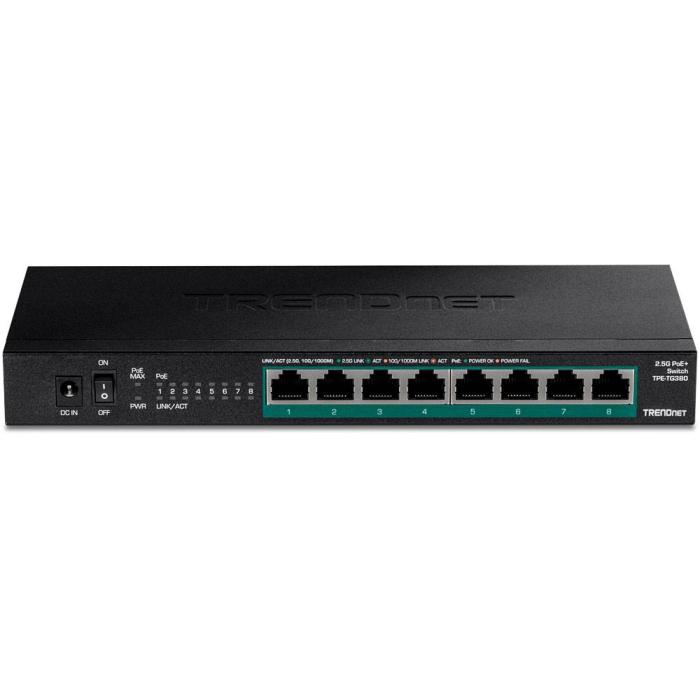

Connect up to eight network devices with this Trendnet TPE-TG380 unmanaged switch in black, offering 2.5G Ethernet ports supporting speeds of 100, 1000 and 2500 Mbit/s over Cat5e cable. Its metal housing includes LED indicators for activity, link, PoE and power, while the MAC address table reaches 16,000 entries and the switching capacity reaches 40 Gbit/s. This model supports jumbo frames up to 12,000 bytes and features a packet buffer of 1.5 MB, operating in full duplex and half duplex modes according to IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3bz, 802.3x and 802.3z standards, powered via a DC input socket.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Cable types supported: Cat5e
- Full duplex: Yes
- Half duplex: Yes
- Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Data transmission
- Switching capacity: 40 Gbit/s
- MAC address table: 16000 entries
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet buffer memory: 1.5 MB
Design
- Product colour: Black
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power
- Wall mountable: Yes
Performance
- Fanless: Yes
- MTBF (PoE): 1121502 h
Power
- Power source: AC/DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 12 W
- Power cable length: 1.5 m
- Power protection features: Over current, Short circuit
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 100 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 240 mm
- Depth: 103 mm
- Height: 26 mm
- Weight: 900 g
Packaging content
- Cables included: DC
- Quick start guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
