Description

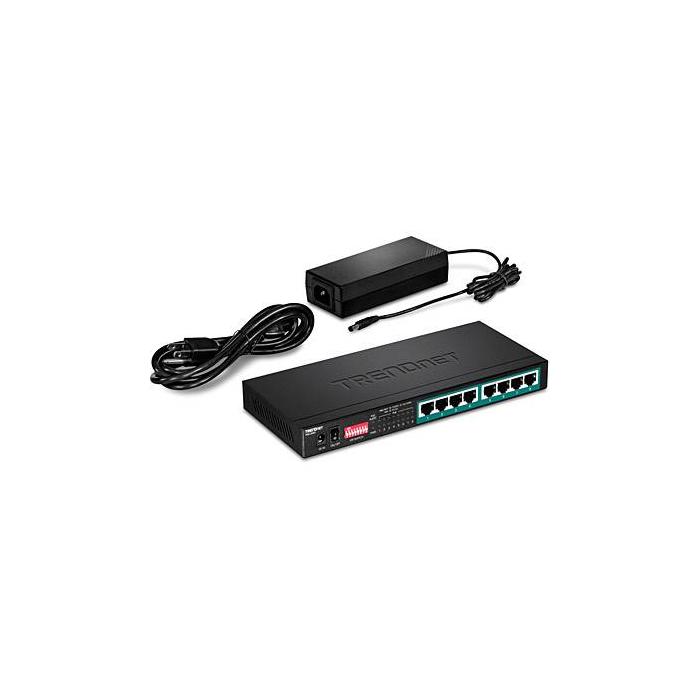

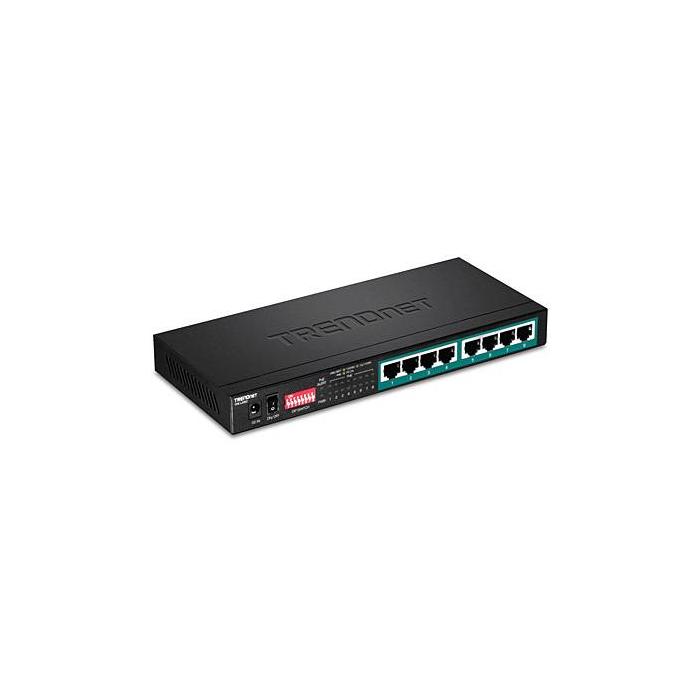

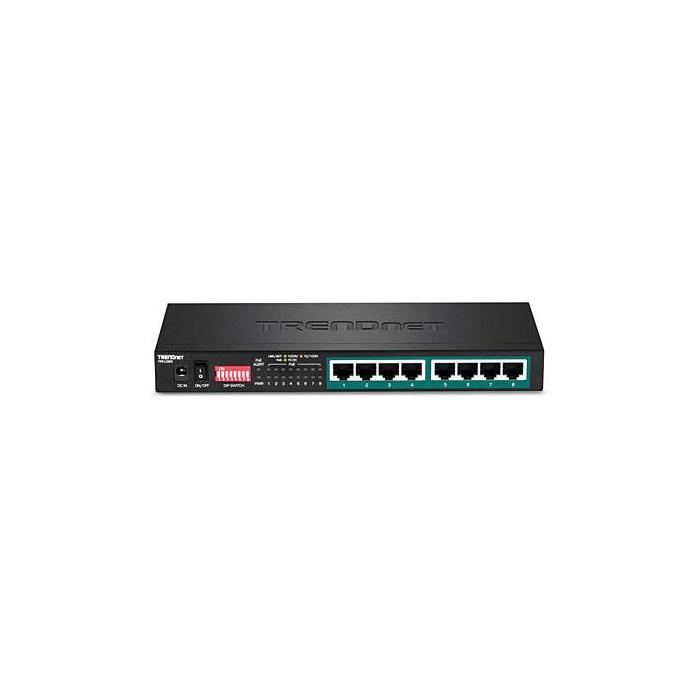

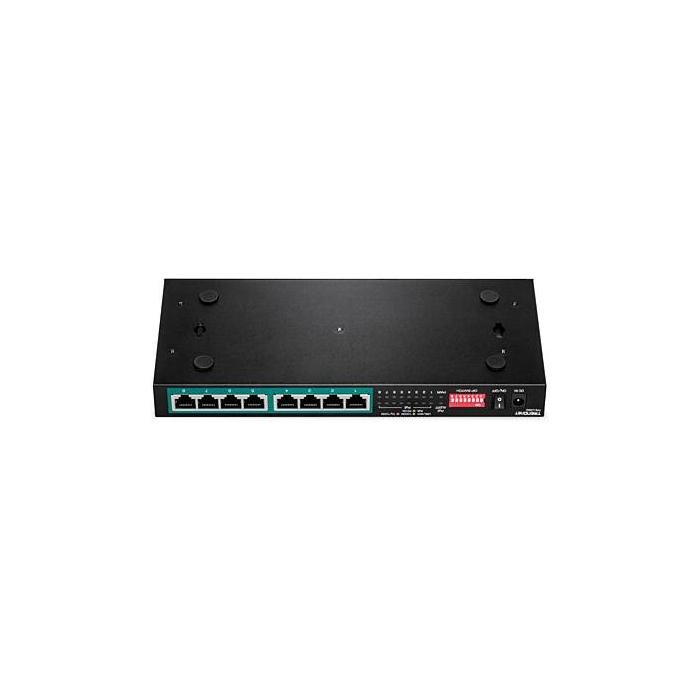

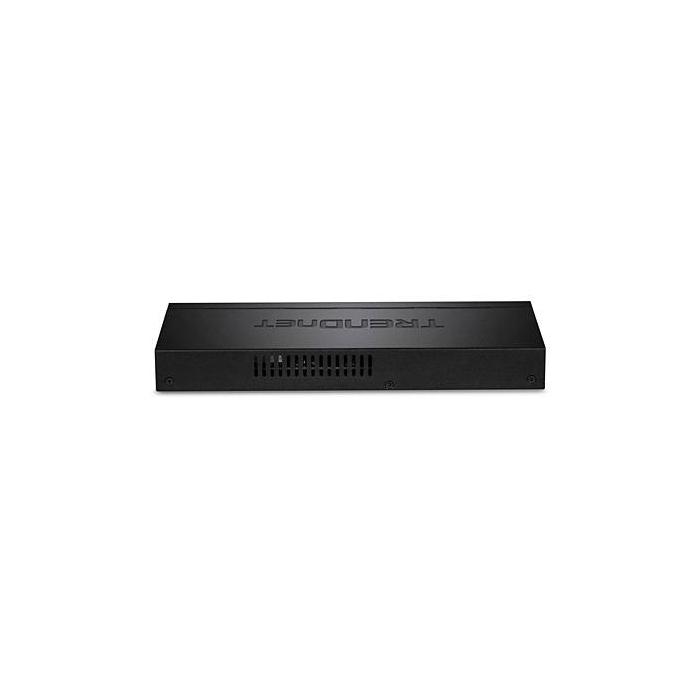

The TPE-LG80 switch from TRENDNET, in its unmanaged version with a black metal housing, integrates eight RJ-45 Gigabit Ethernet (10/100/1000) ports with PoE support to power network devices directly. Its switching capacity reaches 16 Gbit/s and it handles a MAC address table of 4000 entries, with a forwarding rate of 11.9 Mpps to manage simultaneous traffic without complications. It incorporates features such as hierarchical quality of service (HQoS), VLAN support and full duplex mode, along with a 192 KB buffer and a power consumption of 70.6 W. The unit offers LED indicators and a power on/off switch, with power supplied via a DC input socket at 2.5 A.
Specifications
Management features
- Switch type: Unmanaged
- Hierarchical Quality of Service (HQoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
- Full duplex: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 4000 entries
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- On/off switch: Yes
Performance
- Buffer size: 192 KB
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2.5 A
- Output voltage: 55 V
- Output current: 1.3 A
- Power consumption (typical): 70.6 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 240 mm
- Depth: 105 mm
- Height: 27 mm
- Weight: 592 g
Packaging content
- Cables included: AC
- Quick start guide: Yes
Certificates
- Certification: CE, FCC
Logistics data
- Harmonized System (HS) code: 85176990
