Description

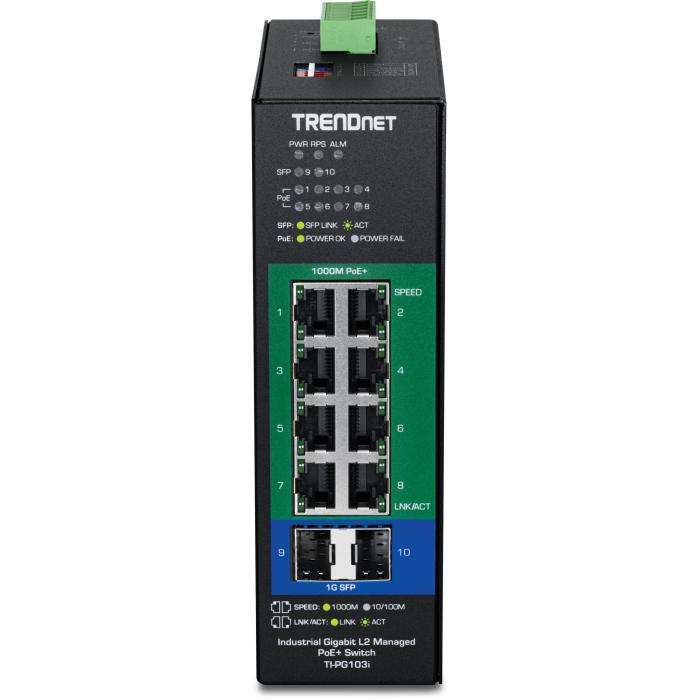

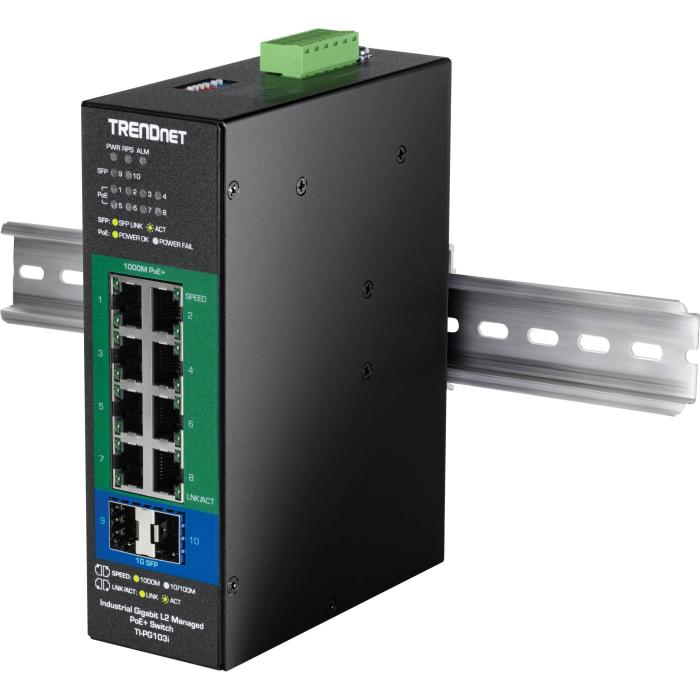

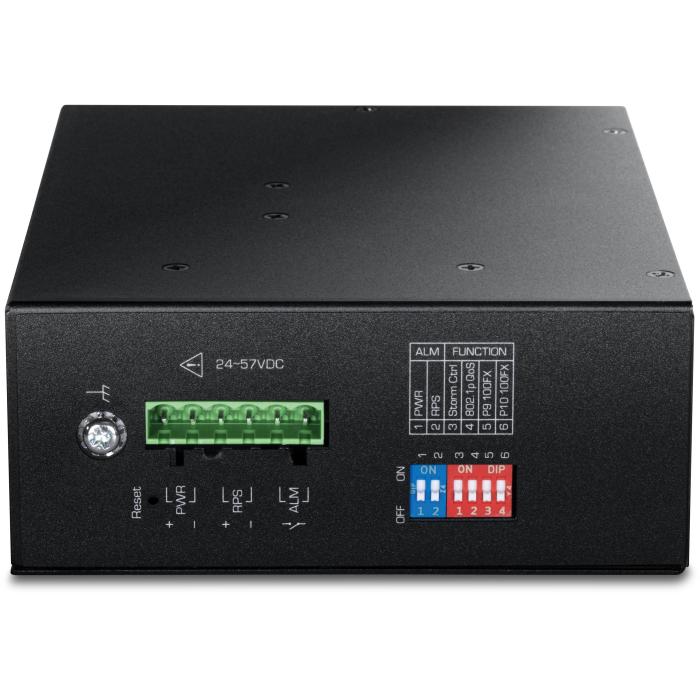

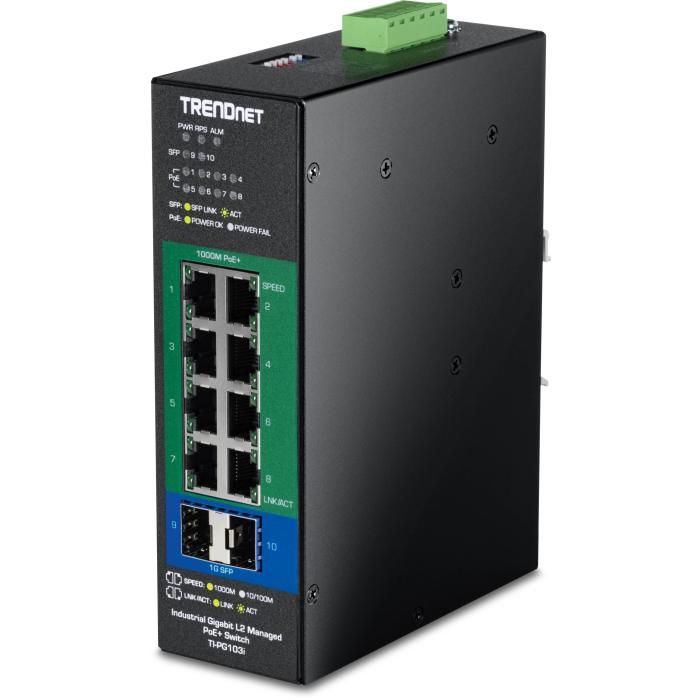

Managed Gigabit Ethernet switch from TRENDNET with eight RJ-45 ports at 10/100/1000 and two SFP slots, in a black finish, allowing you to administer your network with total control. This model supports VLANs by MAC, protocol, and tagging, up to 4094 groups, as well as Spanning Tree Protocol and link aggregation for enhanced redundancy and performance. With a switching capacity of 20 Gbit/s and a MAC address table of 8000 entries, it handles jumbo frames of up to 10000 bytes and offers DHCP relay and Option 82 functions. Its 128 MB buffer memory and forwarding rate of 14.88 Mpps ensure smooth data flow in demanding environments, and it includes a reset button to facilitate configuration.
Specifications
Management features
- Switch type: Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 80
- 10G support: No
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN
- Number of VLANs: 4094
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 128 MB
Security
- DHCP features: DHCP Option 82, DHCP relay
Design
- Rack mounting: Yes
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
- International Protection (IP) code: IP40

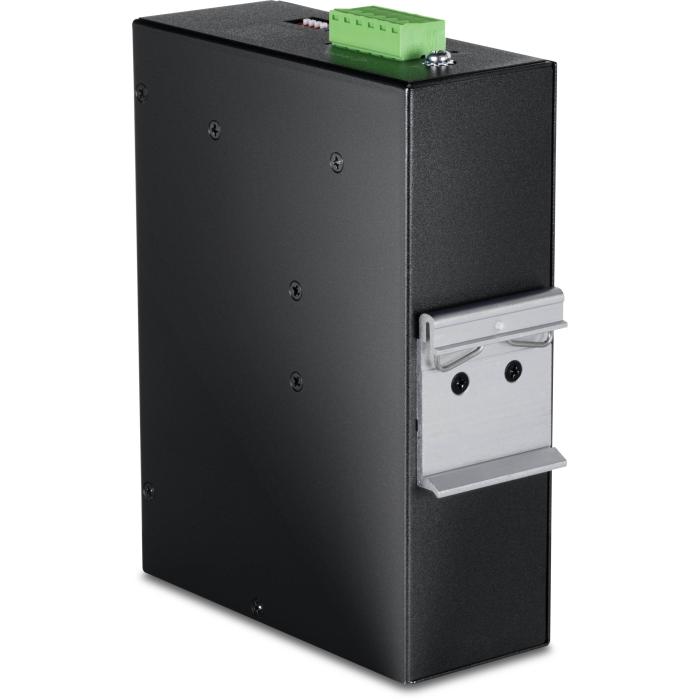

- DIN rail mounting: Yes
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 460726 h
Power
- Power source: DC/PoE
- Redundant power supply (RPS) support: Yes
- DC input voltage: 48 V
- Power consumption (max): 253 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 240 W
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
Weight & dimensions
- Width: 160 mm
- Depth: 120 mm
- Height: 50 mm
- Weight: 930 g
Certificates
- Certification: CE FCC
