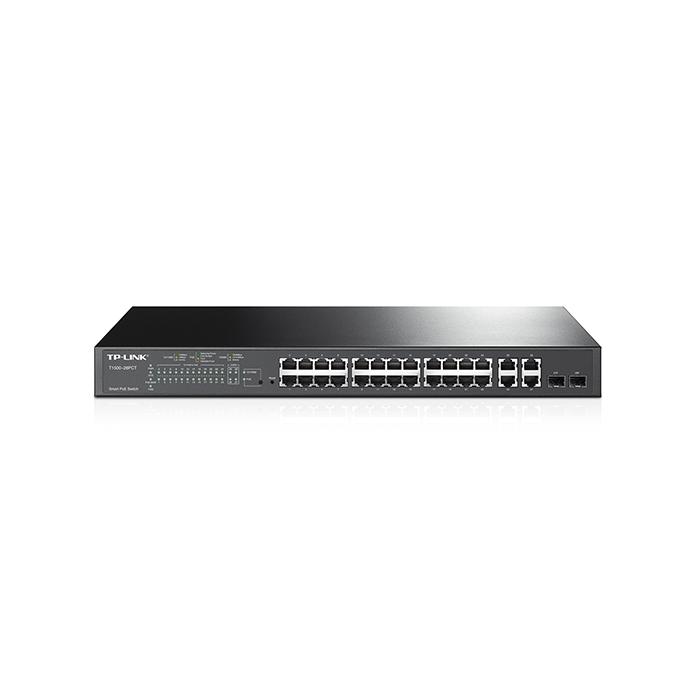

Name: TP-Link T1500-28PCT network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Brand: TP-LINK
Price: 257.09 USD
Availability: InStock

TP-Link T1500-28PCT network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

$257.09

$257.09 without VAT

Amount

Brand: TP-LINK

SKU: 76598 PRC: 111998 EAN: 6935364092597 PN: T1500-28PCT(TL-SL242

Description

TP-Link T1500-28PCT, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 4
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 80
10G support: No
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Cable types supported: Cat5, Cat5e
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Number of VLANs: 512

Data transmission

Switching capacity: 12.8 Gbit/s
Throughput: 9.5 Mpps
MAC address table: 8000 entries
Number of queues: 4
Jumbo frames support: Yes

Security

Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: SSH, SSH-2, SSL/TLS
SSH/SSL support: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP v1/v2c/v3, RMON, SNTP, TFTP

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
Number of fans: 2 fan(s)

Performance

Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeable: Yes

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 222.15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 180 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 440 mm
Depth: 220 mm
Height: 44 mm

Packaging content

Cables included: AC
Quick start guide: Yes

Certificates

Certification: CE, FCC, RoHS

Logistics data

Harmonized System (HS) code: 85176990
