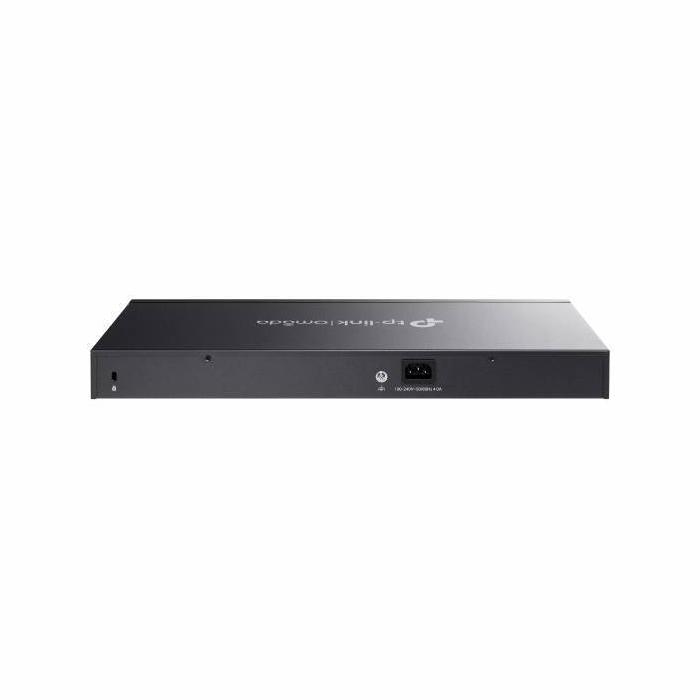

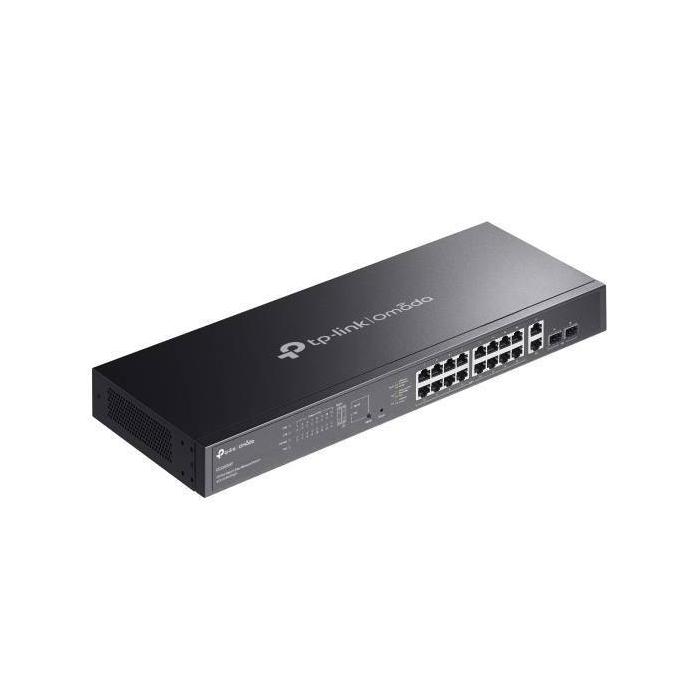

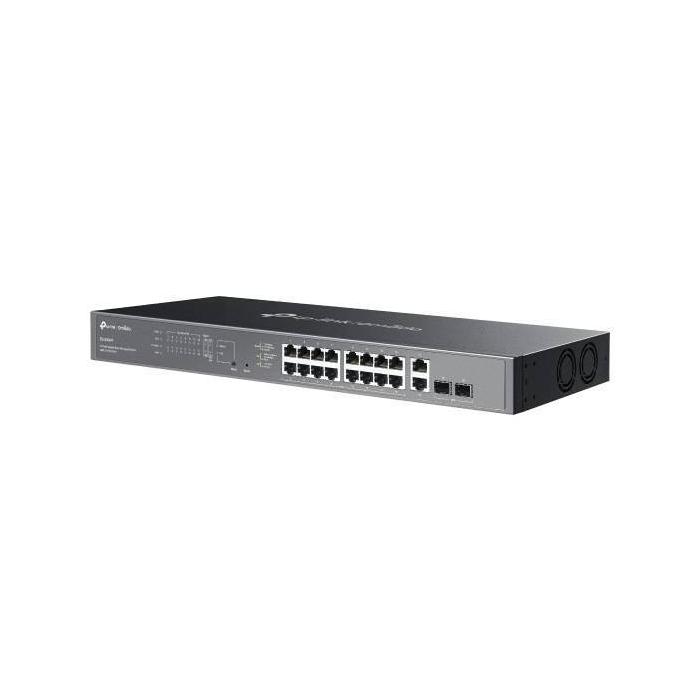

Name: TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: TP-LINK
Price: 191 EUR
Availability: InStock

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

191.00 €

157.85 € without VAT

Amount

Brand: TP-LINK

SKU: 119491 PRC: 577389 EAN: 8885020625943 PN: ES220GMP

Description

TP-Link Omada ES220GMP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Specifications

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
Unified static configuration: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 18
SFP module slots quantity: 2
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Zero Touch Provisioning (ZTP): Yes
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Fast leave: Yes
VLAN support: Yes
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 15000
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
IGMP snooping: Yes
Loop protection: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR)

Design

Rack mounting: Yes
Stackable: No
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Flash memory: 64 MB
Noise level: 41.5 dB
Firmware upgradeable: Yes
Mean time between failures (MTBF): 310550.7 h

Power

Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 289.7 W
Surge protection: Yes
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 250 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 984.88 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
User guide: Yes
Rack mount kit: Yes

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
