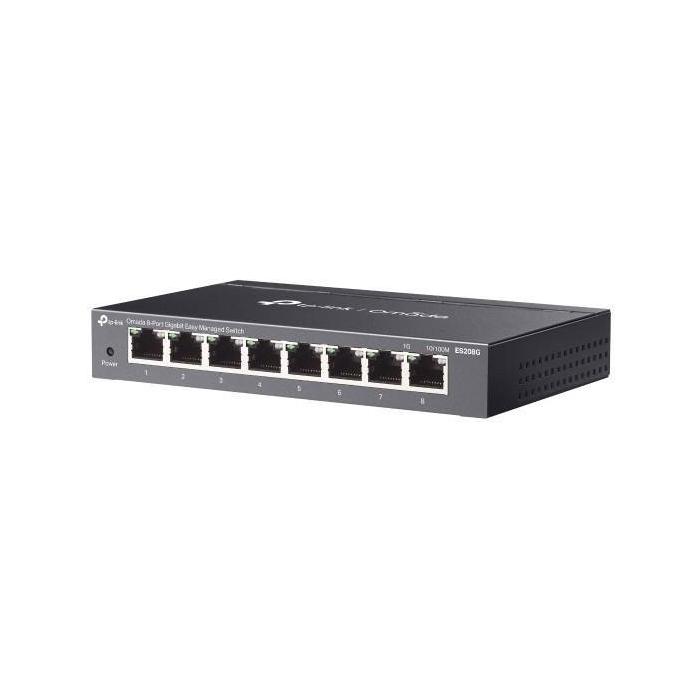

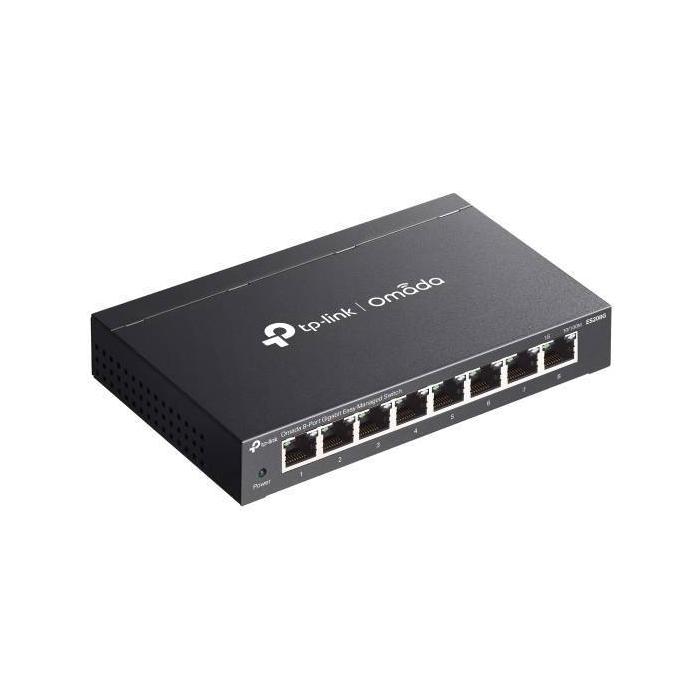

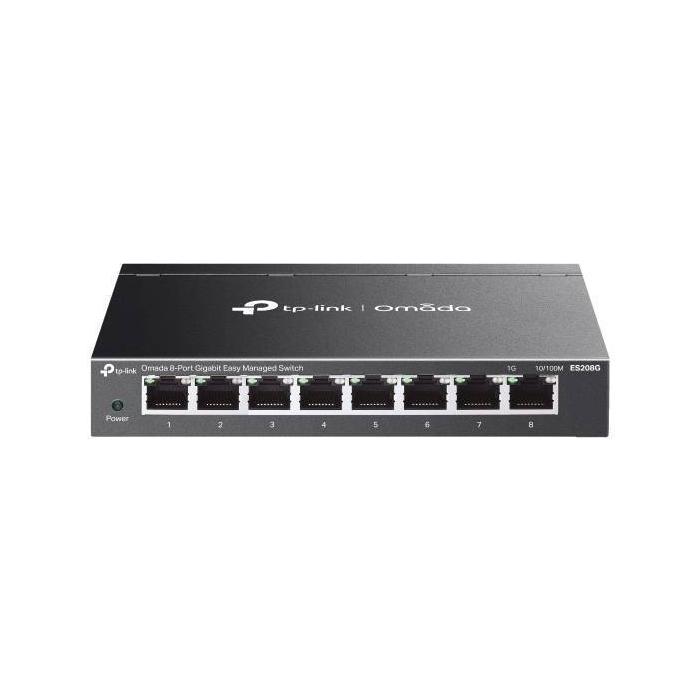

TP-Link Omada ES208G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

35.00 €
28.93 € without VAT

More info

Brand: TP-LINK
SKU: 116170 PRC: 577394 EAN: 1210002600668 PN: ES208G

Description

TP-Link Omada ES208G, Managed, L2, Gigabit Ethernet (10/100/1000), Wall mountable

Specifications

Management features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • Unified static configuration: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 8

Network

  • Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
  • 10G support: No
  • Zero Touch Provisioning (ZTP): Yes
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Fast leave: Yes
  • VLAN support: Yes
  • Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
  • Number of VLANs: 32

Data transmission

  • Switching capacity: 16 Gbit/s
  • Forwarding rate: 11.9 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 15000
  • Packet buffer memory: 4 MB

Security

  • DHCP features: DHCP client
  • IGMP snooping: Yes
  • Loop protection: Yes
  • Queue scheduling algorithms: Weighted Round Robin (WRR)

Design

  • Rack mounting: No
  • Stackable: No
  • Product colour: Black
  • LED indicators: Yes

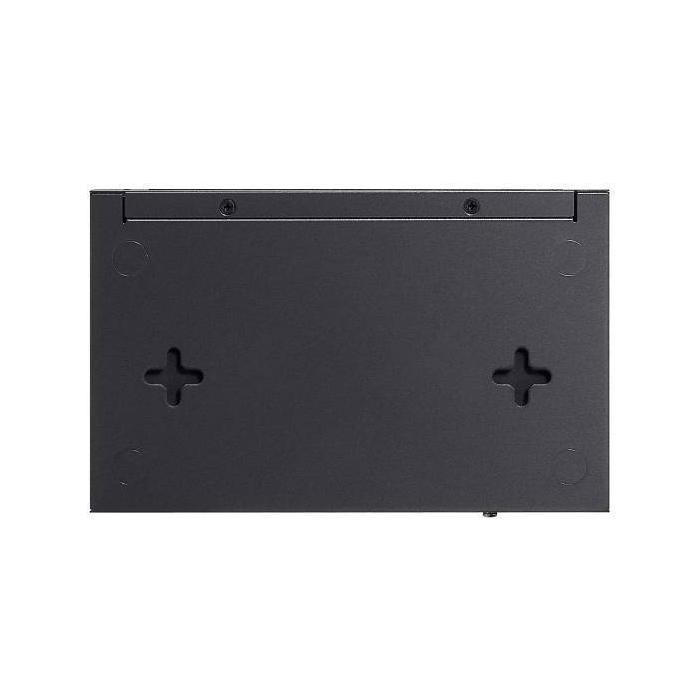

  • Wall mountable: Yes

Performance

  • Flash memory: 64 MB
  • Firmware upgradeable: Yes
  • Fanless: Yes
  • Mean time between failures (MTBF): 1141726 h

Power

  • Power source: DC
  • Power supply included: Yes
  • DC input voltage: 5 V
  • Input current: 0.6 A
  • Power consumption (max): 2.7 W
  • Surge protection: Yes
  • Surge protection voltage: 6 kV

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): No

Operational conditions

  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 9.09 BTU/h

Weight & dimensions

  • Width: 158 mm
  • Depth: 100.7 mm
  • Height: 25.4 mm

Packaging content

  • User guide: Yes

Packaging data

  • AC adapter included: Yes
  • Package type: Box

Certificates

  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
