Description

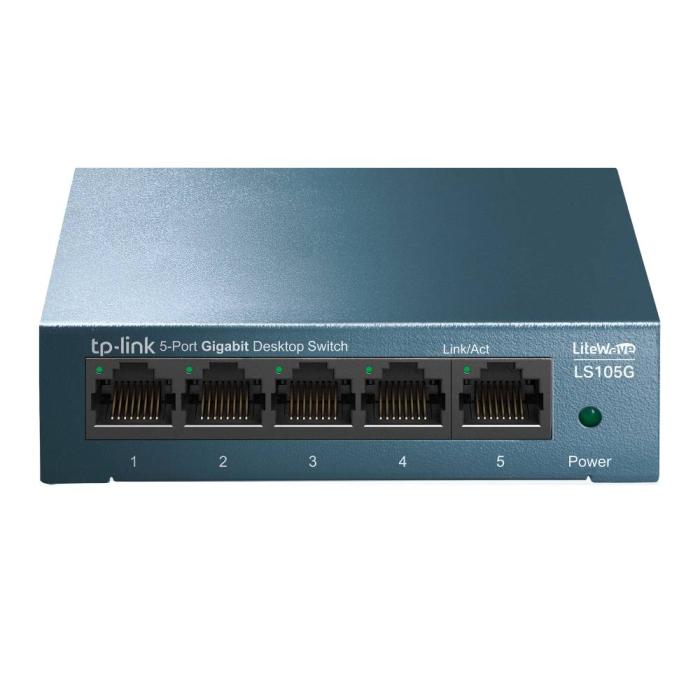

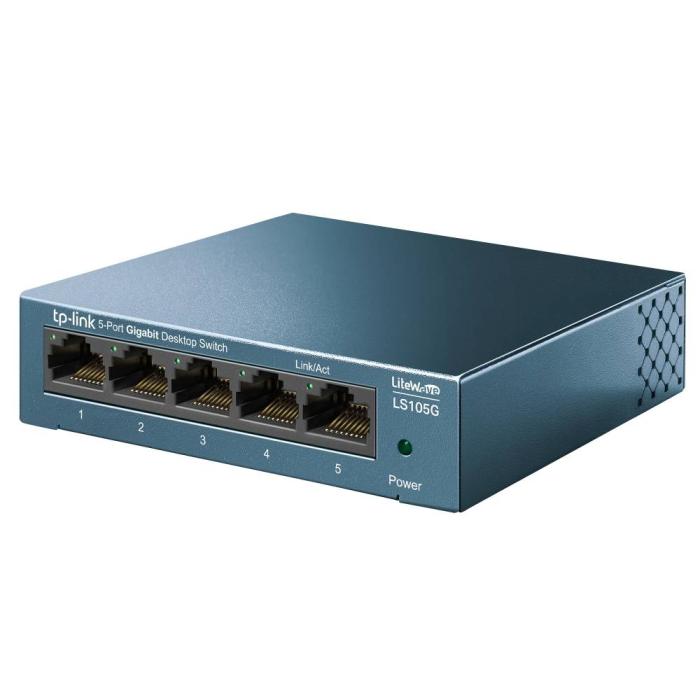

The TP-Link LS105G switch is an unmanaged device in blue that provides five Gigabit Ethernet (10/100/1000) RJ-45 ports for connecting computers, consoles or access points via cable. Its metal casing, measuring 99.8 x 25 x 98 mm, allows it to be integrated into desks and communications cabinets. It features auto-negotiation and auto MDI/MDI-X on each port, so links automatically adjust to the speed and type of cable used. QoS support and the IEEE 802.1p, 802.3ab, 802.3i, 802.3u and 802.3x standards organise traffic and maintain compatibility with your current network. Its 10 Gbit/s switching capacity and a forwarding rate of 7.4 Mpps speed up the passage of data between devices. The 1 MB packet buffer memory, the 2000-entry MAC address table and Jumbo frames of up to 16000 bytes contribute to stable performance in large transfers.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.4 Mpps
- MAC address table: 2000 entries
- Jumbo frames support: Yes
- Jumbo frames: 16000
- Packet buffer memory: 1 MB
Design
- Rack mounting: No
- Product colour: Blue
- Housing material: Metal
- LED indicators: Activity, LAN, Power
- Wall mountable: Yes
Power
- Power source: DC
- Power supply included: Yes
- Input current: 0.6 A
- Input voltage: 5 V
- Power consumption (max): 2.776 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 9.466 BTU/h
Weight & dimensions
- Height: 25 mm
- Width: 99.8 mm
- Depth: 98 mm
Packaging content
- Quick start guide: Yes
Packaging data
- Package width: 125 mm
- Package depth: 128 mm
- Package height: 92 mm
- Package weight: 290 g
Certificates
- Certification: CE, FCC, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
