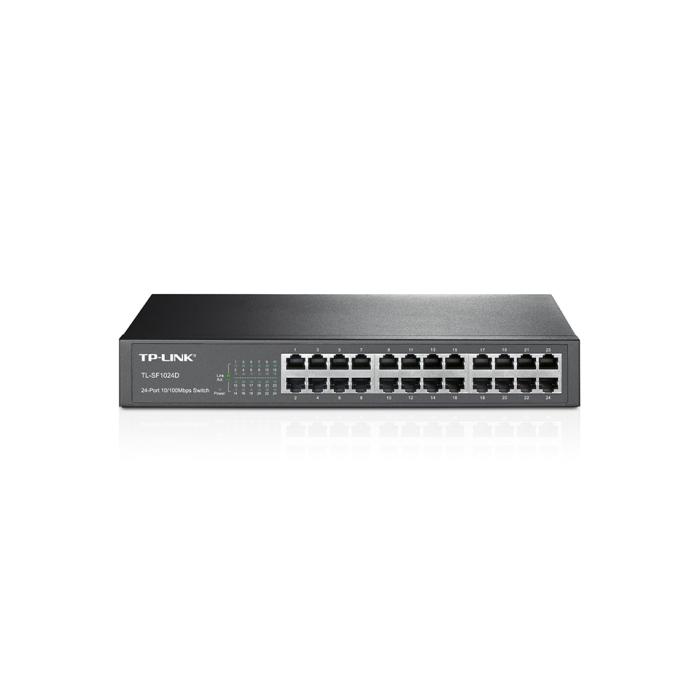

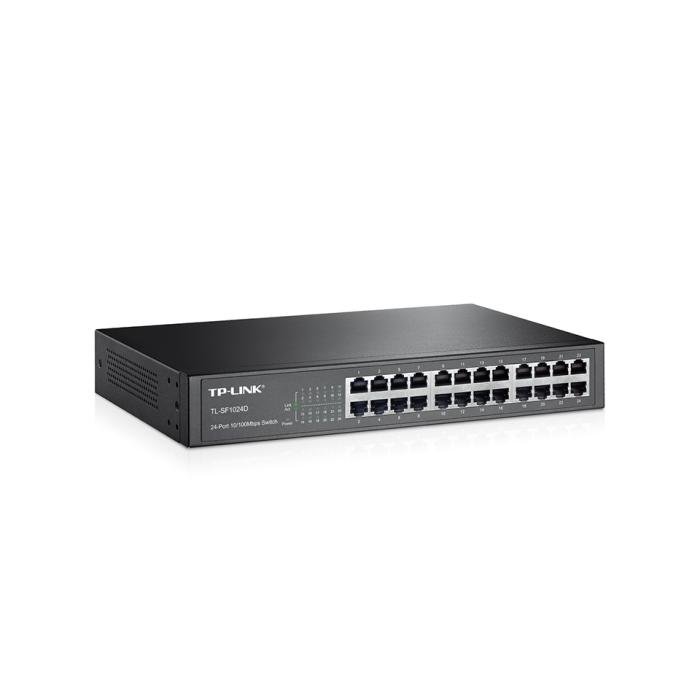

TP-Link 24-port 10/100Mbps Desktop/Rackmount Network Switch

Not avaliable

TP-Link 24-port 10/100Mbps Desktop/Rackmount Network Switch.   More info

Brand: TP-LINK
SKU: 71294 PRC: 5975 EAN: 6935364020828 PN: TL-SF1024D

Description

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

  • Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
  • Full duplex: Yes
  • Half duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Supported data transfer rates: 10/100 Mbps
  • Switching capacity: 4.8 Gbit/s
  • Forwarding rate: 3.57 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Maximum data transfer rate: 0.1 Gbit/s
  • Packet buffer memory: 2 MB

Security

  • MAC address filtering: Yes

Protocols

  • Supported network protocols: CSMA/CD, TCP/IP

Design

  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Link, Power

Power

  • Power source: AC
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (max): 3.19 W

Other features

  • Dimensions (WxDxH): 294 x 180 x 44 mm
  • Connectivity technology: Wired
  • Power requirements: 100 - 240VAC, 50/60Hz
  • Wi-Fi: No

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 10.88 BTU/h

Weight & dimensions

  • Width: 294 mm
  • Depth: 180 mm
  • Height: 44 mm

Packaging content

  • Quick start guide: Yes

Packaging data

  • Package width: 400 mm
  • Package depth: 250 mm
  • Package height: 80 mm
  • Package weight: 2 kg

Certificates

  • Certification: FCC, CE

Logistics data

  • Harmonized System (HS) code: 85176990
