Description

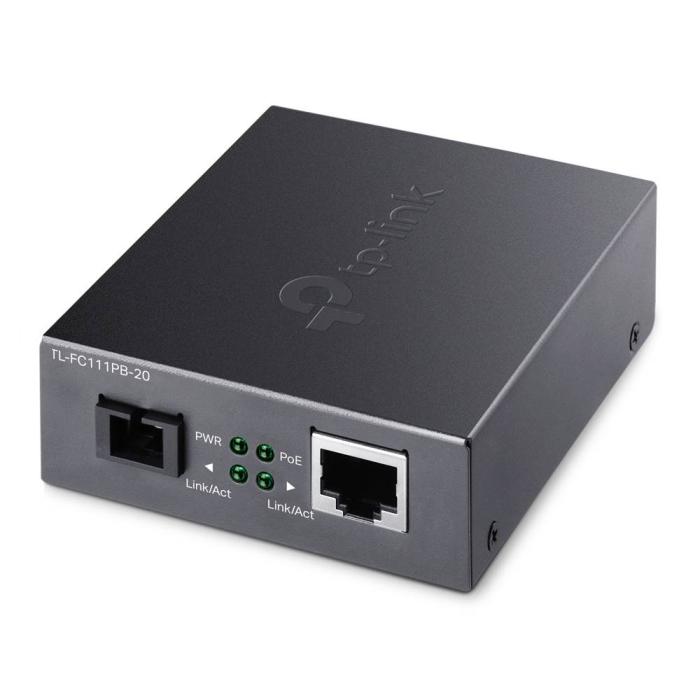

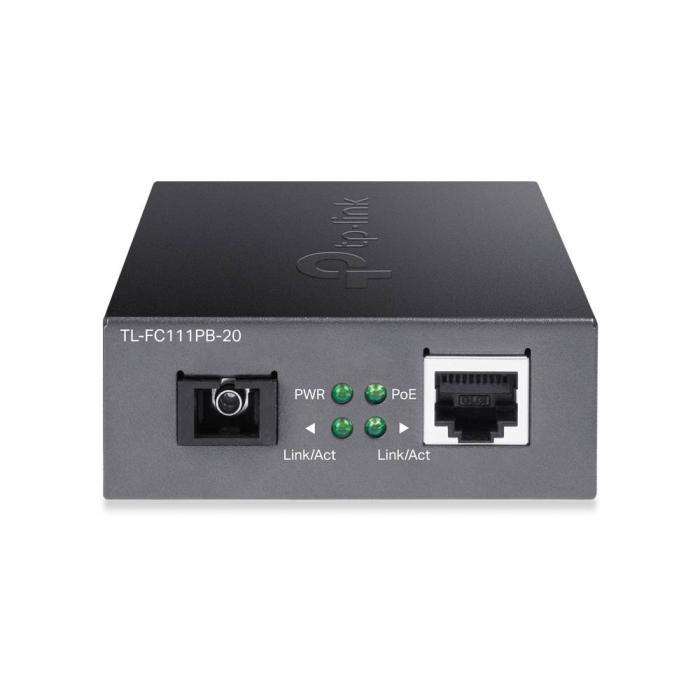

The TP-Link TL-FC111PB-20 media converter, in black, lets you link copper Ethernet networks with single-mode fibre optic of 9/125 µm, supporting a maximum transfer range of 100 Mbit/s. It features one Ethernet LAN RJ-45 port and one fibre channel port with SC connector, both wired, to cover distances of up to 100 metres. Its external, not internal, design includes LED indicators to monitor the connection status and is powered via a DC input plug requiring 48 V and 0.5 A. With dimensions of 94.5 mm in width, 73 mm in depth and 27 mm in height, it operates in a temperature range of 0 to 50 °C and is stored between -40 and 70 °C.
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
Performance
- Maximum transfer distance: 100 m
- Fiber cable diameters supported (core/cladding): 9/125 µm
Features
- Internal: No
- LED indicators: Yes
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC

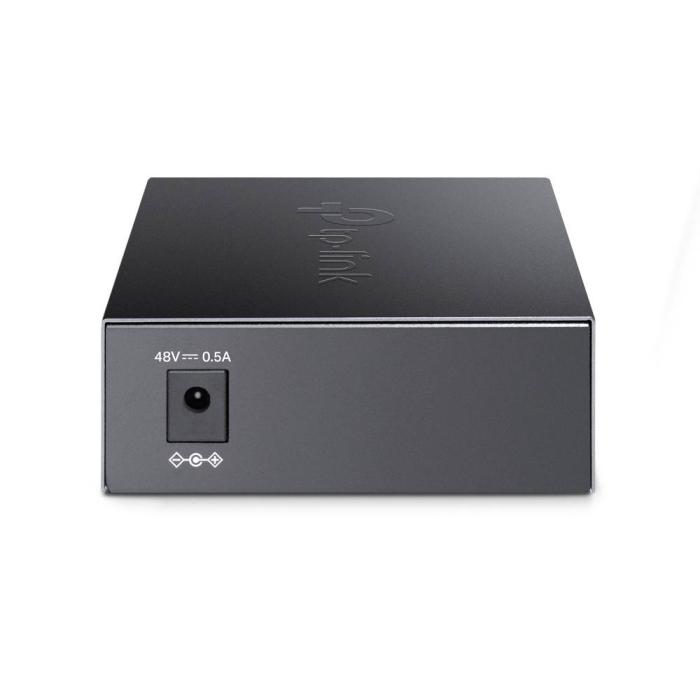

- DC-in jack: Yes
Power
- Input voltage: 48 V
- Input current: 0.5 A
Weight & dimensions
- Width: 94.5 mm
- Depth: 73 mm
- Height: 27 mm
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Packaging content
- AC adapter included: Yes
Logistics data
- Harmonized System (HS) code: 85176990
