Return
Product 1 image

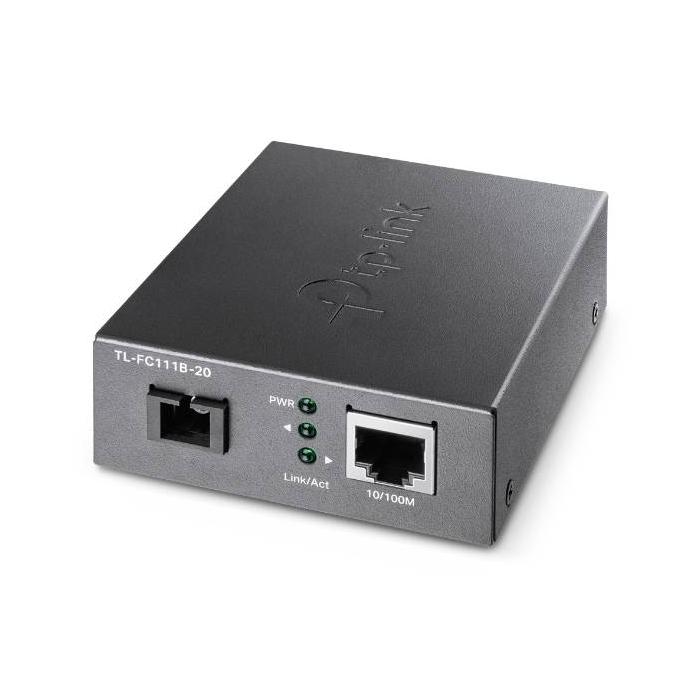

TP-Link 10/100 Mbps WDM Media Converter

$17.14
$17.14 without VAT

More info

Brand: TP-LINK
SKU: 85785 PRC: 297739 EAN: 6935364010997 PN: TL-FC111B-20

Description

TP-Link 10/100 Mbps WDM Media Converter, 100 Mbit/s, IEEE 802.3, IEEE 802.3i, IEEE 802.3x, 10BASE-T, 100BASE-T, 100BASE-FX, 100 Mbit/s, Full, Half

Specifications

Network

  • Maximum data transfer rate: 100 Mbit/s
  • Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3x
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-T
  • Fiber ethernet cabling technology: 100BASE-FX
  • Data transfer rate: 100 Mbit/s
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Duplex system: Full, Half
  • Cable types supported: Cat3, Cat4, Cat5, Cat5e

Performance

  • Maximum transfer distance: 20000 m
  • Fiber mode structure: Single-mode
  • Fiber cable diameters supported (core/cladding): 9/125 µm

Features

  • Internal: No
  • LED indicators: Activity, Link, Power
  • Product colour: Black

Ports & interfaces

  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1
  • Fiber optic connector: SC

Power

  • Output voltage: 5 V
  • Output current: 0.6 A
  • External power adapter: Yes

Weight & dimensions

  • Width: 94.5 mm
  • Depth: 73 mm
  • Height: 27 mm

Operational conditions

  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%

Packaging data

  • Package width: 165 mm
  • Package depth: 204 mm
  • Package height: 65 mm
  • Package weight: 360 g

Certificates

  • Compliance certificates: RoHS
  • Certification: FCC, CE

Logistics data

  • Harmonized System (HS) code: 85176990
