Description

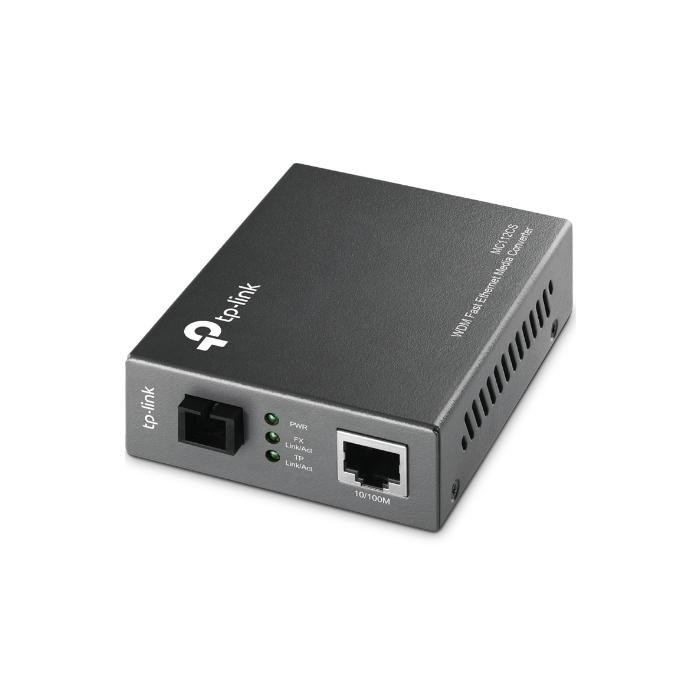

Connect your Ethernet network to fibre optic thanks to the TP-Link MC112CS media converter, a black device that converts the signal between both types of cable. It features a Gigabit Ethernet RJ-45 port and a fibre channel port with SC connector, allowing copper frames to be linked with fibre links. It reaches a data transfer speed of 1000 Mbit/s and supports Cat3, Cat4, Cat5 and Cat5e cables, as well as complying with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards. Its Auto MDI/MDI-X function automatically adjusts the network port configuration. It works with a wavelength of 1550 nm and covers transfer distances of up to 20000 m, with a maximum power consumption of 2.41 W. The activity and power LED indicators let you check the status of the equipment at a glance. Its dimensions are 94.5 x 27 x 73 mm (width x height x depth), a compact format to integrate it into any installation.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 1000 Mbit/s
- Fiber ethernet cabling technology: 100BASE-FX
- Auto MDI/MDI-X: Yes
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
Performance
- Maximum transfer distance: 20000 m
- Wavelength: 1550 nm
Features
- Internal: No
- LED indicators: Activity, Power
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Power
- Power consumption (max): 2.41 W
Weight & dimensions
- Width: 94.5 mm
- Depth: 73 mm
- Height: 27 mm
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Packaging data
- Package width: 165 mm
- Package depth: 204 mm
- Package height: 65 mm
- Package weight: 360 g
Certificates
- Compliance certificates: RoHS
- Certification: FCC, CE
