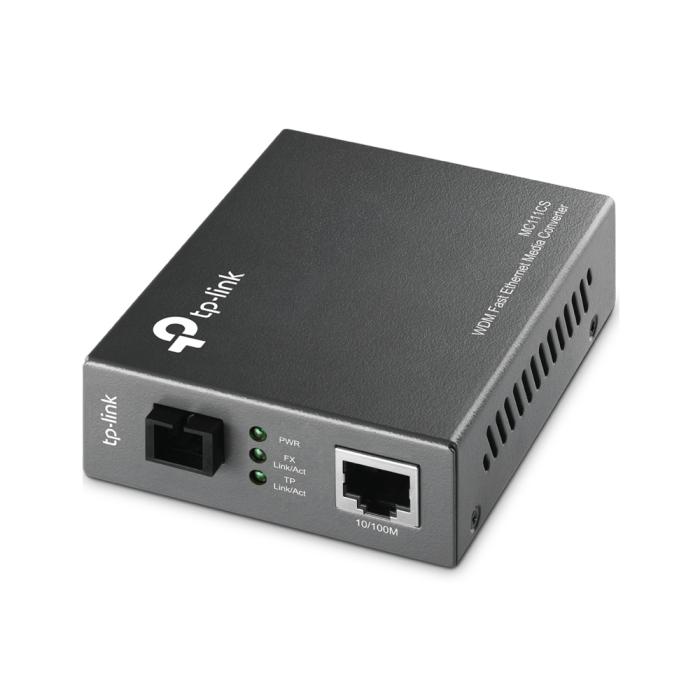

Name: TP-Link 10/100Mbps WDM Media Converter
Brand: TP-LINK
Price: 28 EUR
Availability: InStock

TP-Link 10/100Mbps WDM Media Converter

28.00 €

23.14 € without VAT

Amount

Brand: TP-LINK

SKU: 71201 PRC: 4836 EAN: 6935364030414 PN: MC111CS

Description

TP-Link 10/100Mbps WDM Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, Cat3, Cat4, Cat5, Cat5e

Specifications

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Fiber ethernet cabling technology: 100BASE-FX
Auto MDI/MDI-X: Yes
Cable types supported: Cat3, Cat4, Cat5, Cat5e

Performance

Maximum transfer distance: 20000 m
Wavelength: 1550 nm
Fiber mode structure: Single-mode

Features

Internal: No
LED indicators: Activity, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Power consumption (max): 1.23 W

Weight & dimensions

Width: 94.5 mm
Depth: 73 mm
Height: 27 mm

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Packaging data

Package width: 165 mm
Package depth: 204 mm
Package height: 65 mm
Package weight: 370 g

Certificates

Compliance certificates: RoHS
Certification: FCC, CE

Other features

I/O ports: 1x 100M SC 1x 100M RJ45
Full duplex: Yes
