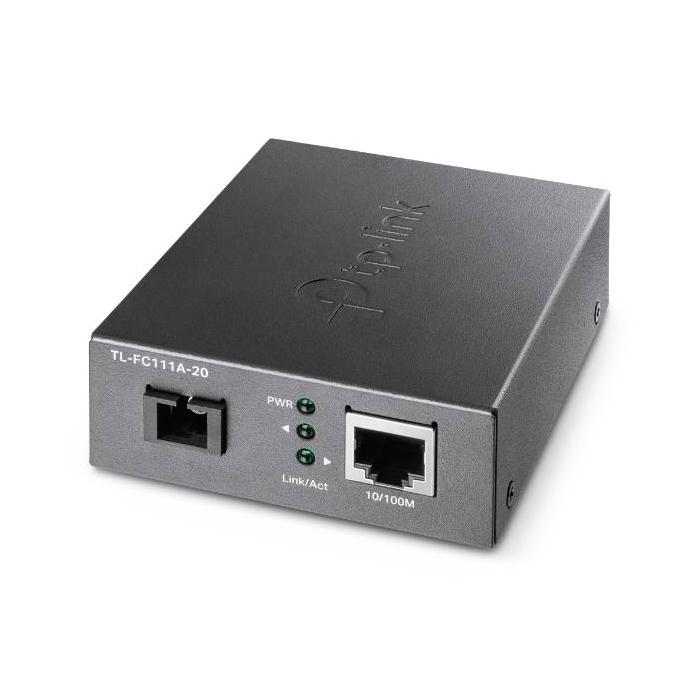

TP-Link 10/100 Mbps WDM Media Converter

Product 1 image

TP-Link 10/100 Mbps WDM Media Converter

18.00 €

14.88 € without VAT

Amount

Brand: TP-LINK

SKU: 85786 PRC: 297741 EAN: 6935364010980 PN: TL-FC111A-20

Description

TP-Link 10/100 Mbps WDM Media Converter, 100 Mbit/s, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, 10,100 Mbit/s, 10BASE-T, 100BASE-T, 100BASE-FX, Full, Half

Specifications

Network

Maximum data transfer rate: 100 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates: 10, 100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-T
Fiber ethernet cabling technology: 100BASE-FX
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Duplex system: Full, Half
Cable types supported: Cat3, Cat4, Cat5, Cat5e

Performance

Maximum transfer distance: 20000 m
Fiber mode structure: Single-mode
Fiber cable diameters supported (core/cladding): 9/125 µm

Features

Internal: No
LED indicators: Activity, Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Output voltage: 5 V
Output current: 0.6 A

Weight & dimensions

Width: 94.5 mm
Depth: 73 mm
Height: 27 mm

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Packaging data

Package width: 165 mm
Package depth: 204 mm
Package height: 65 mm
Package weight: 360 g

Certificates

Compliance certificates: RoHS
Certification: FCC, CE

Logistics data

Harmonized System (HS) code: 85176990
