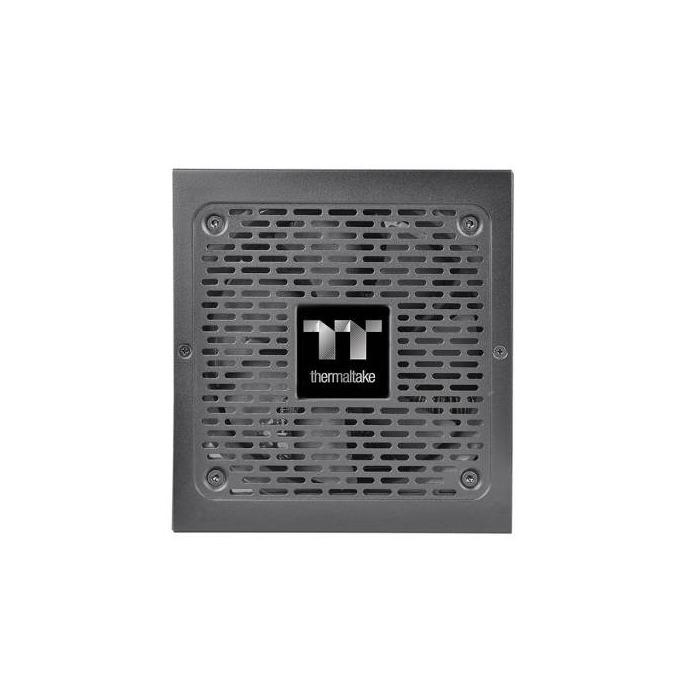

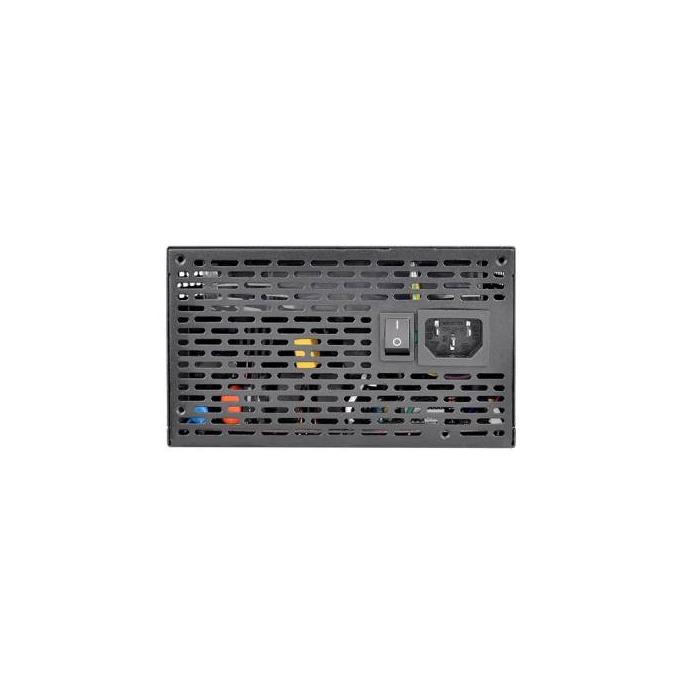

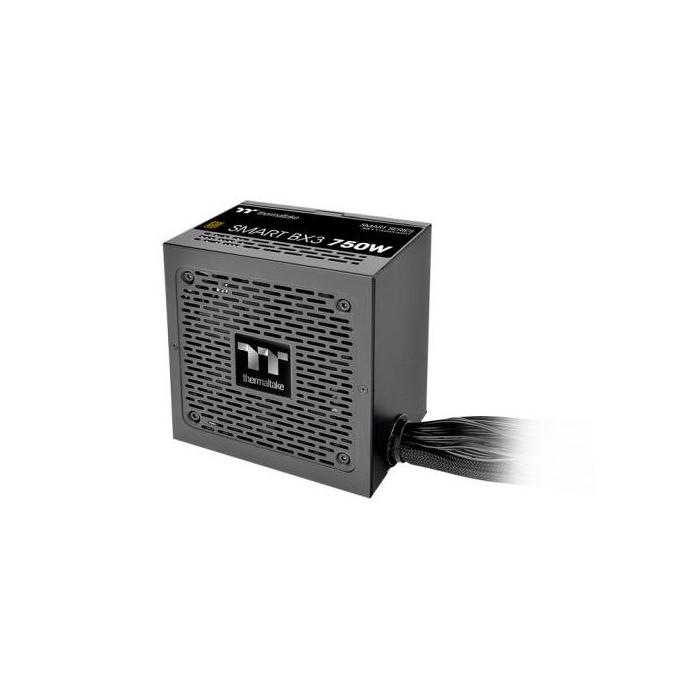

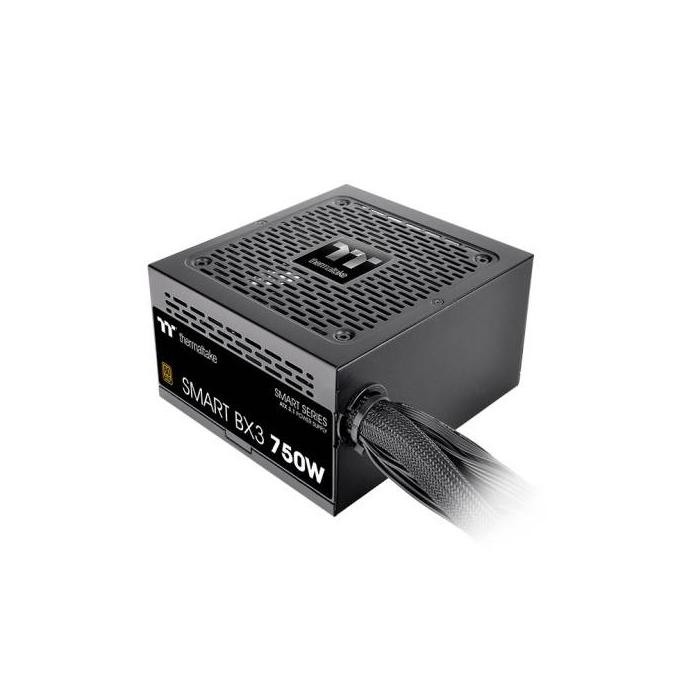

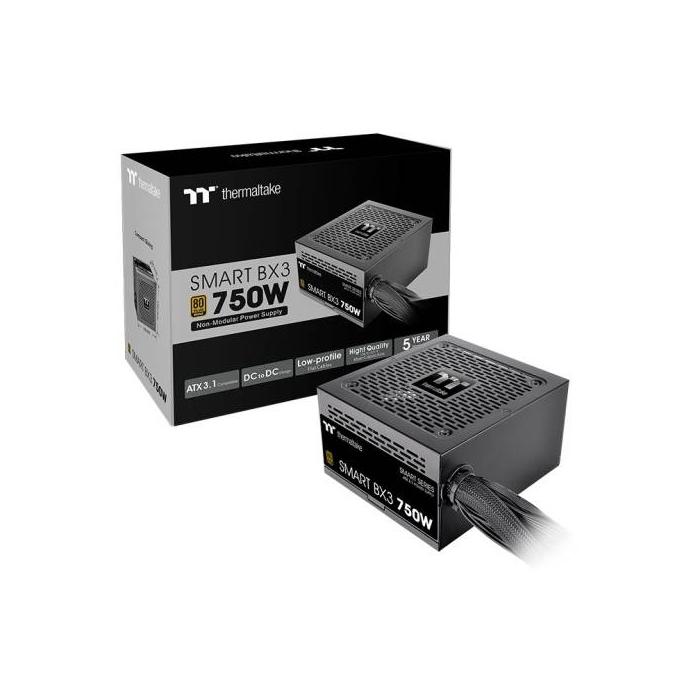

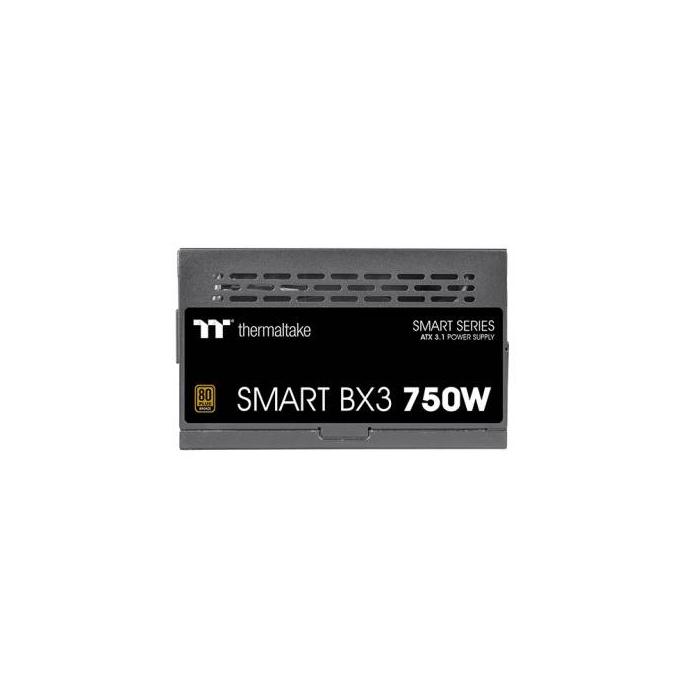

Thermaltake Smart BX3 power supply unit 750 W ATX Black

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Product 6 image

Thermaltake Smart BX3 power supply unit 750 W ATX Black

Not avaliable

Amount

Brand: THERMALTAKE

SKU: 105534 PRC: 520234 EAN: 4711475643147 PN: ps-spd-0750nnfabe-3

Description

Specifications

Power

Total power: 750 W
Peak power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 750 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 18 A
Max output current (+12V): 62.5 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 150 ms

Ports & interfaces

Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 150, 500 mm
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12-pin): 2
ATX Power connector (24-pin): Yes
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Silent mode: Yes

Design

Product colour: Black
Fan diameter: 12 cm

Weight & dimensions

Width: 150 mm
Depth: 86 mm
Height: 140 mm
