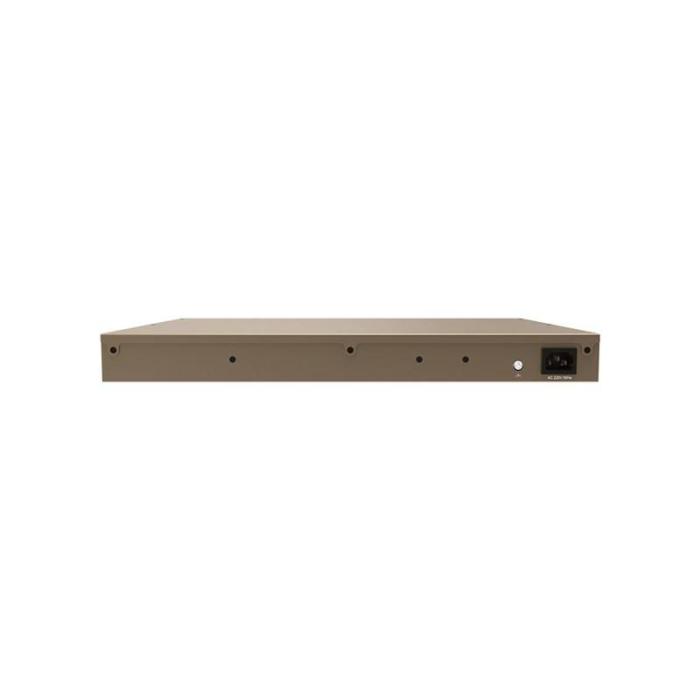

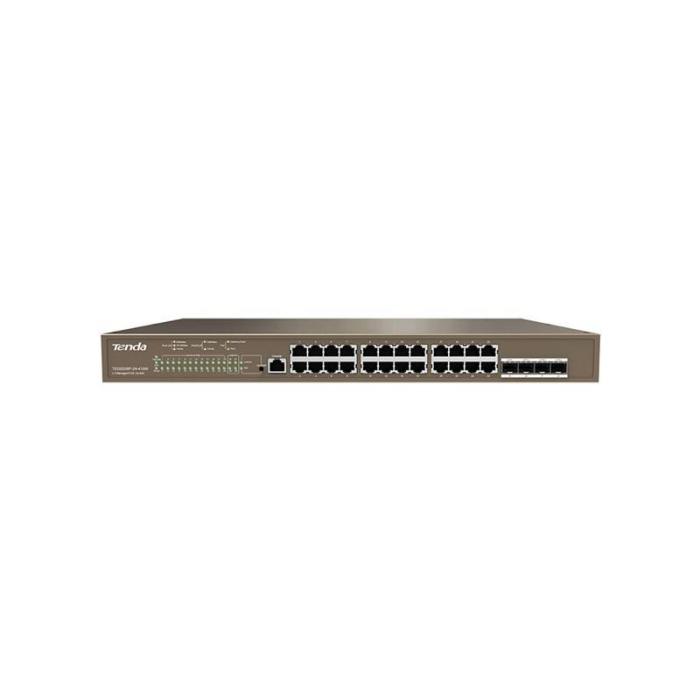

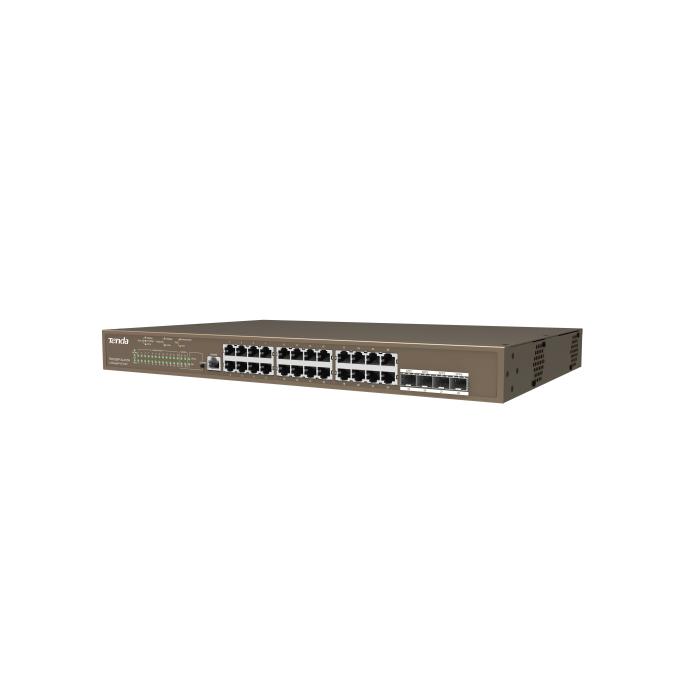

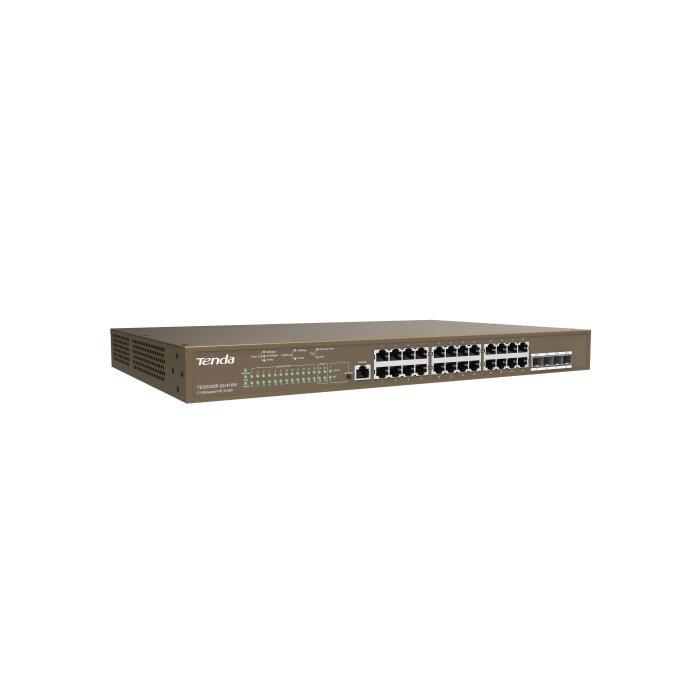

Name: Tenda TEG5328P-24-410W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Brand: TENDA
Price: 310.41 USD
Availability: InStock

Tenda TEG5328P-24-410W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

$310.41

$310.41 without VAT

Amount

Brand: TENDA

SKU: 87235 PRC: 311239 EAN: 6932849431742 PN: teg5328p

Description

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Console port: RJ-45
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.
10G support: No
Port mirroring: Yes
IP routing: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.7 Mpps
MAC address table: 16000 entries
Jumbo frames support: Yes
Jumbo frames: 10000

Security

DHCP features: DHCP relay, DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: 802.1x RADIUS
MAC address filtering: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP V1/V2/V3, Telnet, Console
Multicast protocols: IGMP Snooping V1/V2/V3

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Grey
LED indicators: Activity, Link, PoE, Power, System
Wall mountable: Yes
Number of fans: 2 fan(s)

Power

Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 432 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 370 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 440 mm
Depth: 284 mm
Height: 44 mm

Certificates

Certification: CCC, FCC, CE, RoHS
