Description

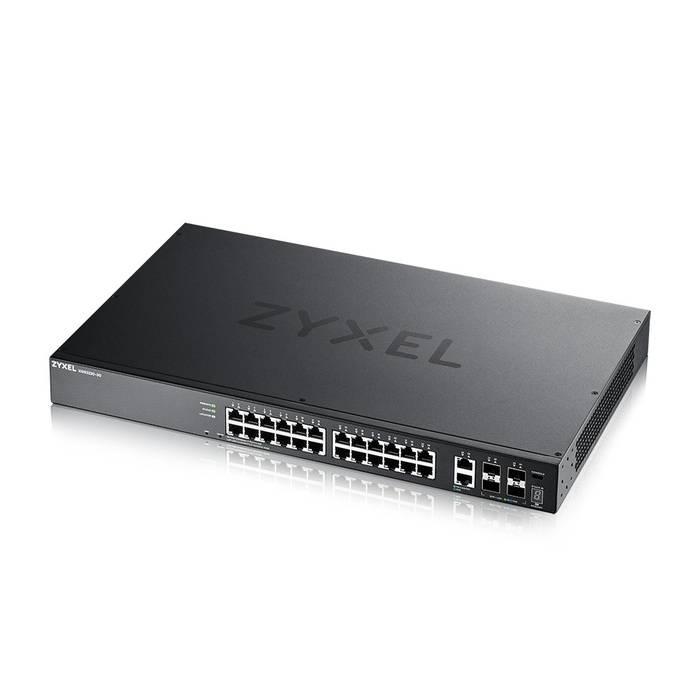

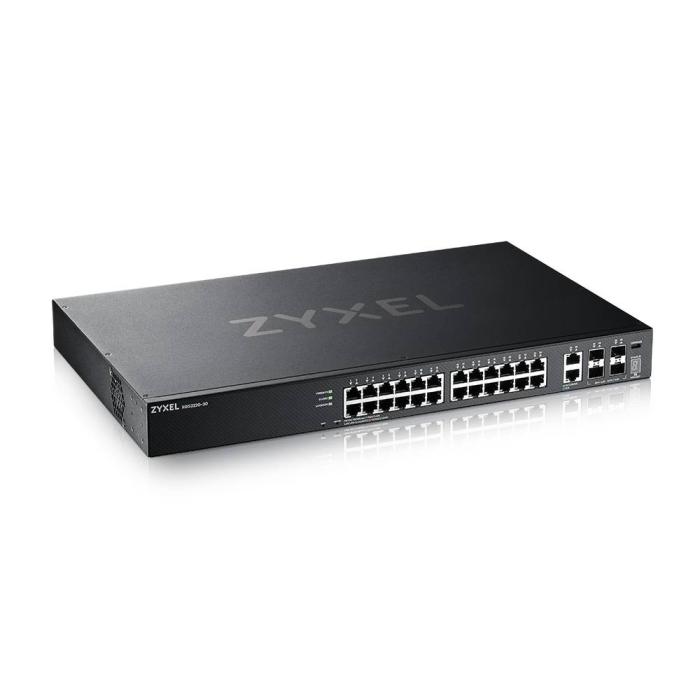

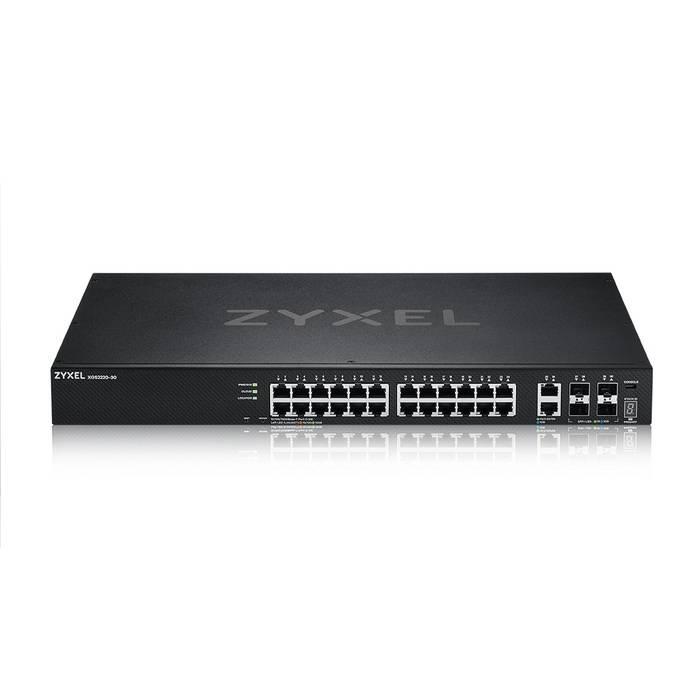

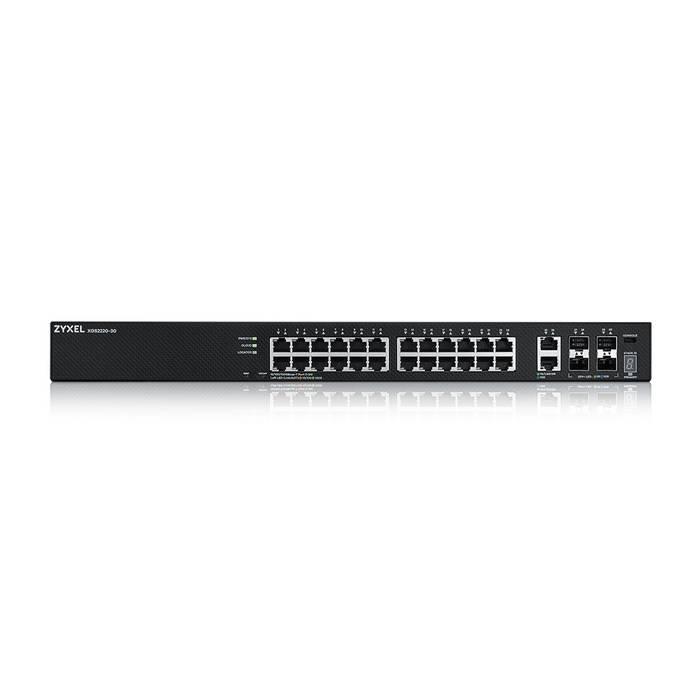

L3 managed switch with 24 Gigabit Ethernet RJ-45 ports, two 10G copper Ethernet ports, and four installed SFP+ modules, the Zyxel XGS2220-30 model offers a switching capacity of 168 Gbit/s and a forwarding rate of 125 Mpps. Its web- and cloud-based management allows you to configure it remotely with support for Quality of Service (QoS) and ARP inspection to optimise your network traffic. With 64 routing entries, static routes, and jumbo frame support, this switch handles up to 32,000 entries in its MAC address table and a 2 MB packet buffer. In its black finish, it is designed for professional environments that need to manage networks with advanced segmentation and 10G traffic without complications.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- 10G Ethernet (copper) ports quantity: 2
- Installed SFP+ modules quantity: 4
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3x, IEEE 8
- 10G support: Yes
- Routing entries: 64
Data transmission
- Switching capacity: 168 Gbit/s
- Forwarding rate: 125 Mpps
- MAC address table: 32000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Packet buffer memory: 2 MB
Security
- DHCP features: DHCP relay, DHCP server
- IGMP snooping: Yes
- IGMP proxy: Yes
- Security algorithms: SNMP, SNMPv2, SNMPv3
- BPDU filtering/protection: Yes
- Authentication type: IEEE 802.1x, RADIUS, TACACS+
Multicast features
- Multicast support: Yes
- Multicast Listener Discovery (MLD) snooping: MLD v1/v2
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
Performance
- Internal memory: 1024 MB
- Flash memory: 64 MB
- Mean time between failures (MTBF): 520.185 h
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 37.62 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 128.28 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 270 mm
- Height: 44 mm
- Weight: 3.4 kg
Packaging data
- Package width: 616 mm
- Package depth: 355 mm
- Package height: 107 mm
- Package weight: 4.73 kg
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS
