StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable

$380.87
$380.87 without VAT

StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable.   More info

Brand: STARTECH.COM
SKU: 86509 PRC: 304840 EAN: 65030889834 PN: IES1G52UP12V

Description

StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable (IES1G52UP12V)

Specifications

Management features

  • Switch type: Unmanaged

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2

Network

  • Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
  • Full duplex: Yes
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes

Data transmission

  • Switching capacity: 12 Gbit/s
  • Jumbo frames support: Yes
  • Jumbo frames: 9000

Protocols

  • Supported network protocols: CSMA/CD

Design

  • Rack mounting: No
  • Product colour: Black
  • Housing material: Aluminium, Steel
  • LED indicators: Activity, Link, PoE, Power
  • International Protection (IP) code: IP30
  • Wall mountable: Yes
  • DIN rail mounting: Yes
  • Safety: EN60950-1

Performance

  • Buffer size: 128 KB
  • Mean time between failures (MTBF): 693764 h

Power

  • Surge protection: Yes
  • Surge protection voltage: 2 kV

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 4
  • Power over Ethernet (PoE) power per port: 30 W
  • Total Power over Ethernet (PoE) budget: 120 W

Other features

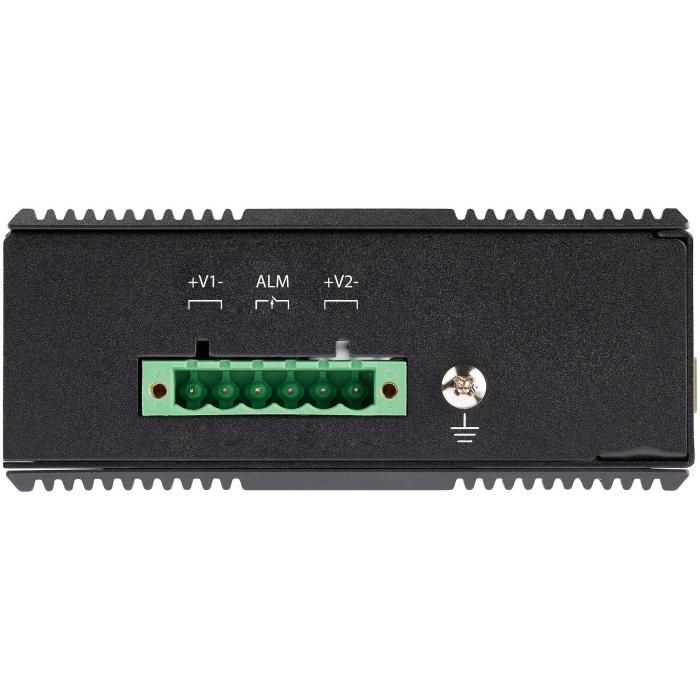

  • Terminal block port: Yes

Operational conditions

  • Operating temperature (T-T): -40 - 75 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 105 mm
  • Depth: 142 mm
  • Height: 43 mm
  • Weight: 701.4 g

Packaging content

  • Quick start guide: Yes

Packaging data

  • Terminal block included: Yes
  • Package width: 211 mm
  • Package depth: 162 mm
  • Package height: 64 mm
  • Package weight: 946.4 g

Certificates

  • Certification: CE, RoHS, FCC

Logistics data

  • Master (outer) case width: 355 mm
  • Master (outer) case length: 345 mm
  • Master (outer) case height: 225 mm
  • Harmonized System (HS) code: 85176990
  • Products per master (outer) case: 10 pc(s)
