Description

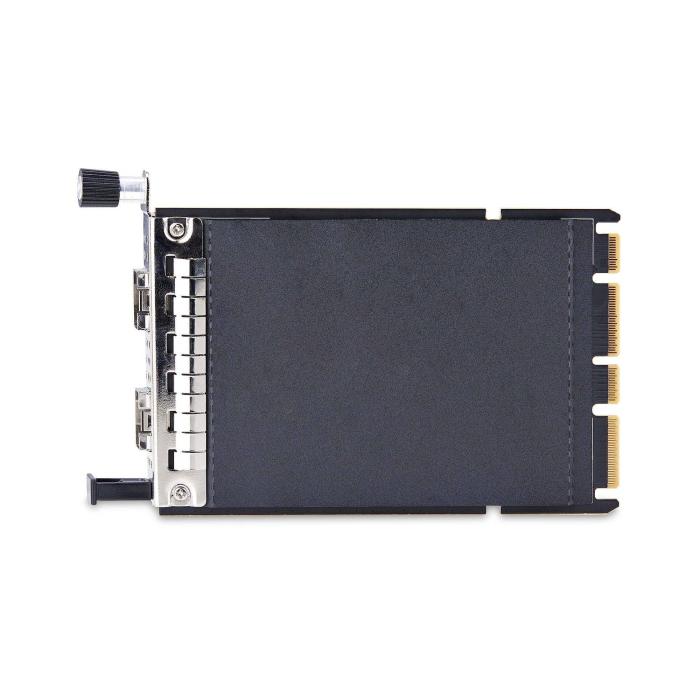

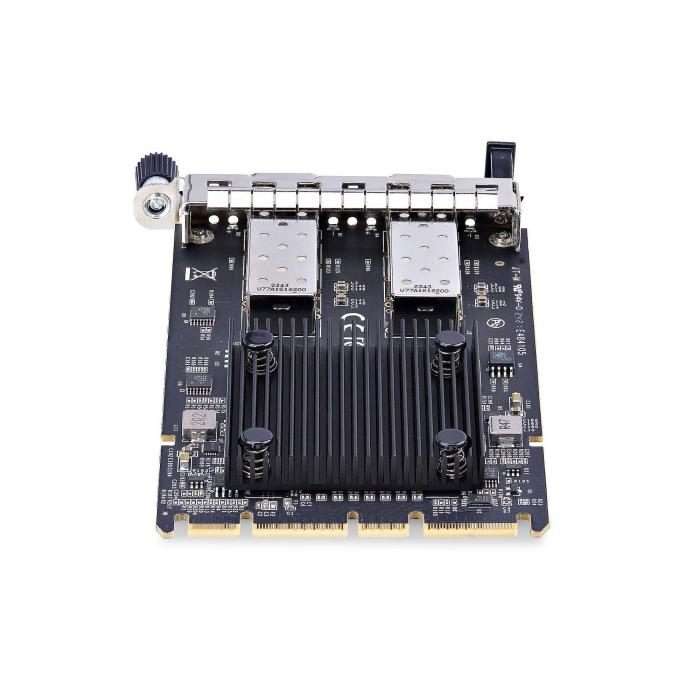

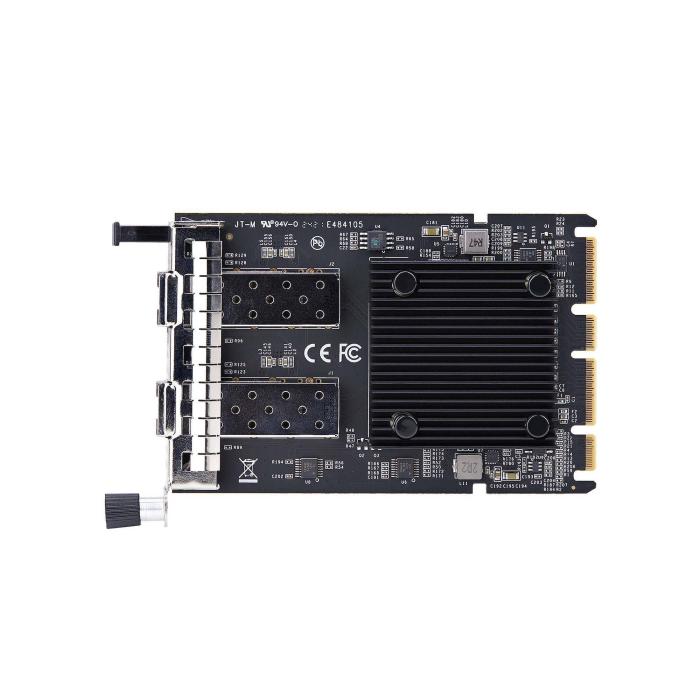

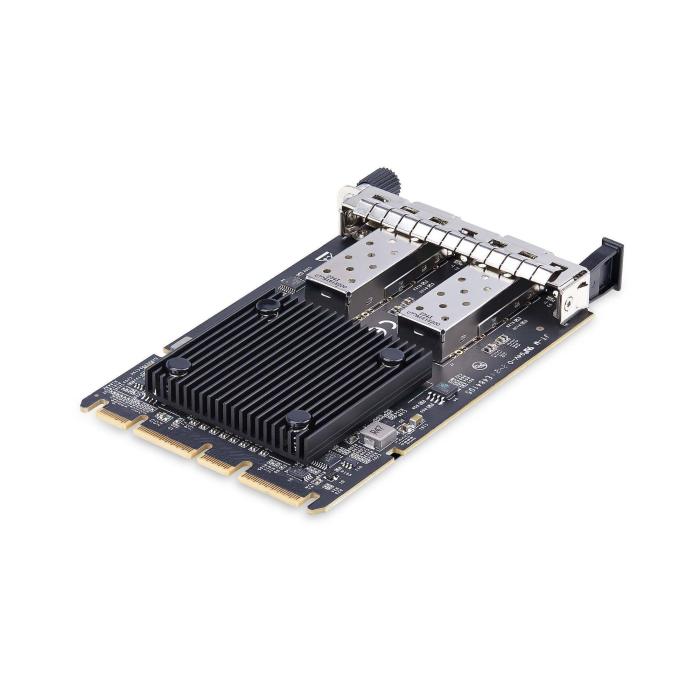

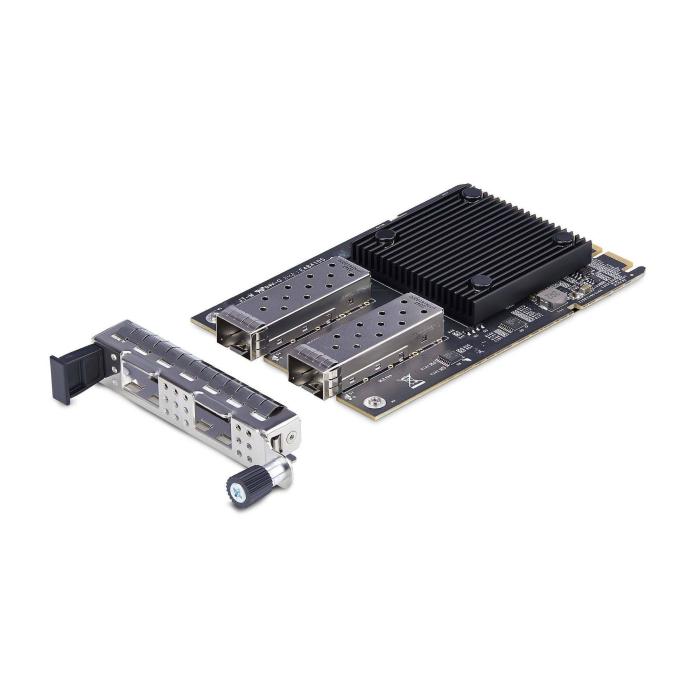

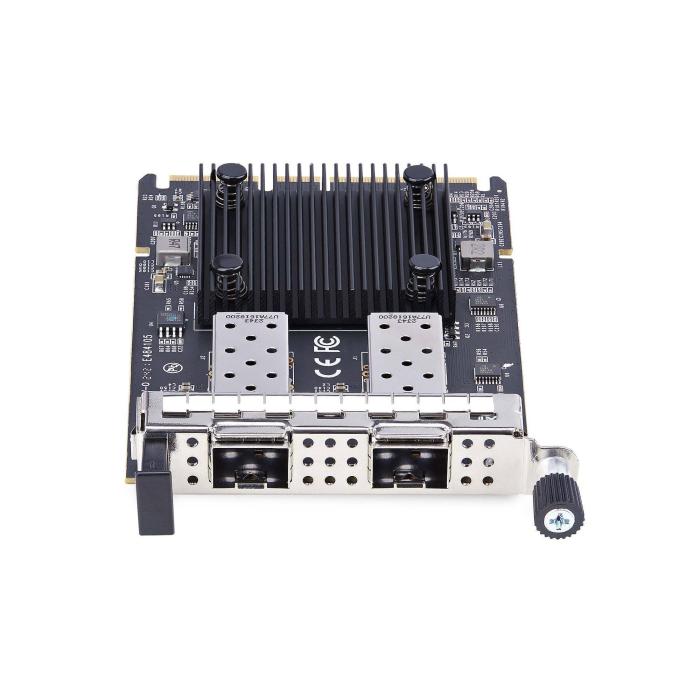

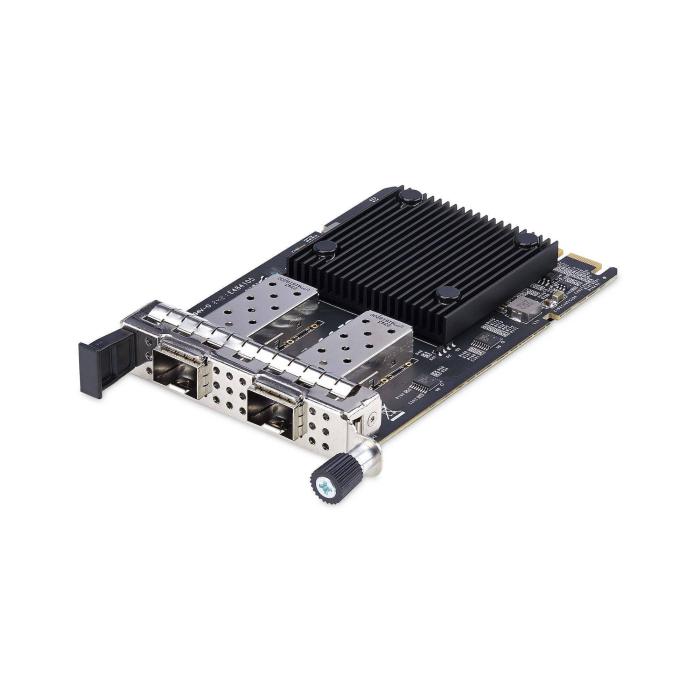

StarTech.com 2-Port 10Gbps SFP+ OCP 3.0 Server Network Card with Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Works with Windows u0026 Linux, Internal, Wired, OCP 3.0, Fiber, 10000 Mbit/s, Black

Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: OCP 3.0
  • Interface: Fiber
  • Fiber ports quantity: 2
  • Fiber optic connector: SFP+

Network


  • Maximum data transfer rate: 10000 Mbit/s
  • Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae
  • Wake-on-LAN ready: Yes
  • Full duplex: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Fiber mode structure: Multi-mode, Single-mode

Design


  • Component for: PC/Server
  • Product colour: Black
  • Internal: Yes
  • Chipset: Intel® X710-BM2
  • LED indicators: Activity, Link

System requirements


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Operational conditions


  • Operating temperature (T-T): 0 - 60 °C
  • Storage temperature (T-T): -10 - 70 °C
  • Operating relative humidity (H-H): 5 - 90%

Weight & dimensions


  • Depth: 132 mm
  • Height: 15 mm
  • Weight: 104 g
  • Width: 85 mm

Packaging data


  • Package width: 145 mm
  • Package depth: 215 mm
  • Package height: 35 mm
  • Package weight: 170 g

Packaging content


  • Quick installation guide: Yes

Technical details


  • Compliance certificates: RoHS

Logistics data


  • Master (outer) case width: 605 mm
  • Master (outer) case length: 325 mm
  • Master (outer) case height: 305 mm
  • Products per master (outer) case: 80 pc(s)
