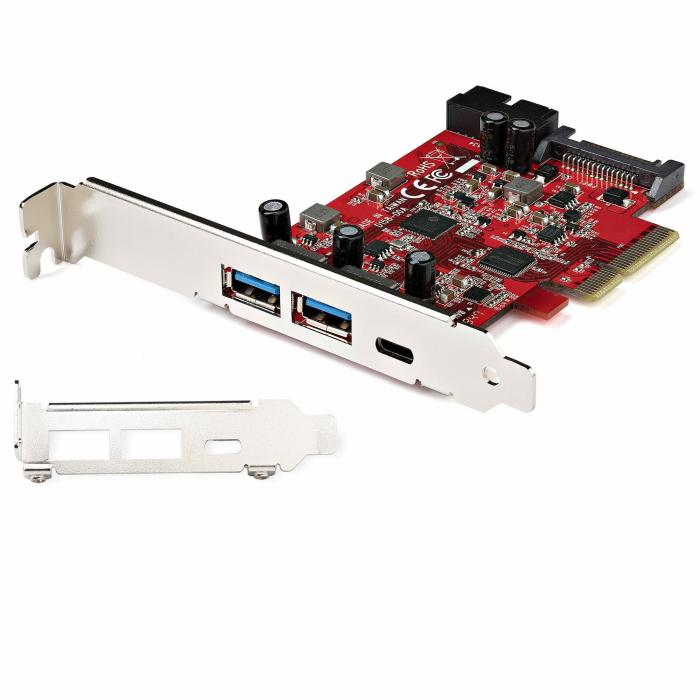

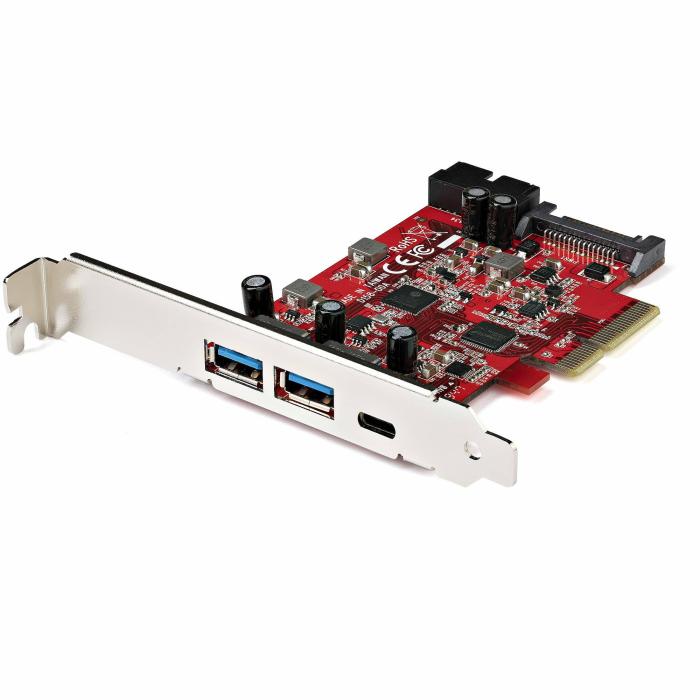

StarTech.com 5-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A - 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Express Controller Card

$66.65
$66.65 without VAT

StarTech.com 5-Port USB PCIe Card - 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A - 1x 2 Port IDC (Internal 5Gbps USB Header Expansion) - USB C PCI Express Controller Card.   More info

Brand: STARTECH.COM
SKU: 89059 PRC: 333080 EAN: 65030888325 PN: PEXUSB312A1C1H

Description

Specifications

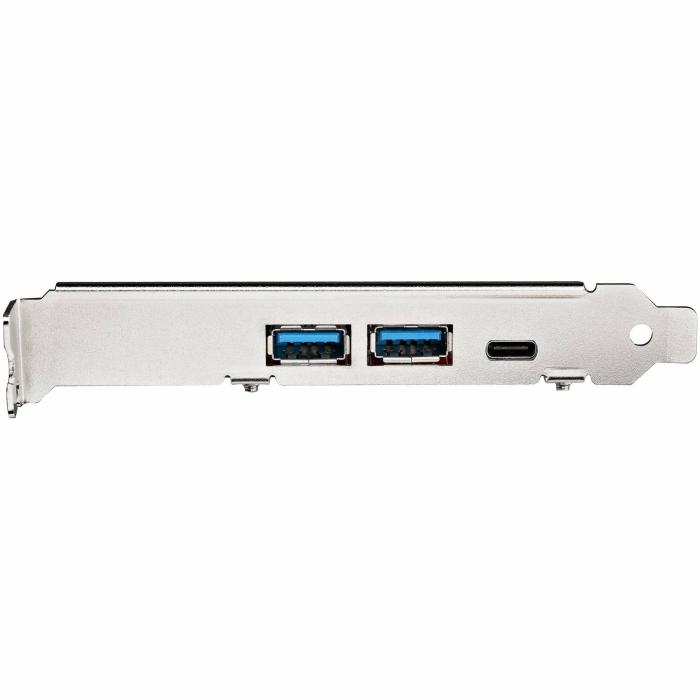

Ports & interfaces

  • Host interface: PCIe
  • Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
  • Expansion card standard: PCIe 3.0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Internal SATA ports quantity: 1

Design

  • Internal: Yes
  • Product colour: Red
  • Mean time between failures (MTBF): 1677495 h

Features

  • Chipset: ASMedia - ASM3142, Genesys Logic - GL3590
  • Data transfer rate (max): 10 Gbit/s
  • UASP support: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -20 - 80 °C
  • Operating relative humidity (H-H): 15 - 90%

System requirements

  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019

Technical details

  • Compliance certificates: CE, RoHS

Weight & dimensions

  • Width: 68.9 mm
  • Depth: 102 mm
  • Height: 14.4 mm
  • Weight: 60 g

Packaging data

  • Mounting brackets included: Yes
  • Quick installation guide: Yes
  • Package width: 140 mm
  • Package depth: 175 mm
  • Package height: 30 mm
  • Package weight: 125 g

Logistics data

  • Harmonized System (HS) code: 84733020
  • Products per master (outer) case: 60 pc(s)
  • Master (outer) case width: 370 mm
  • Master (outer) case length: 375 mm
  • Master (outer) case height: 500 mm
