Description

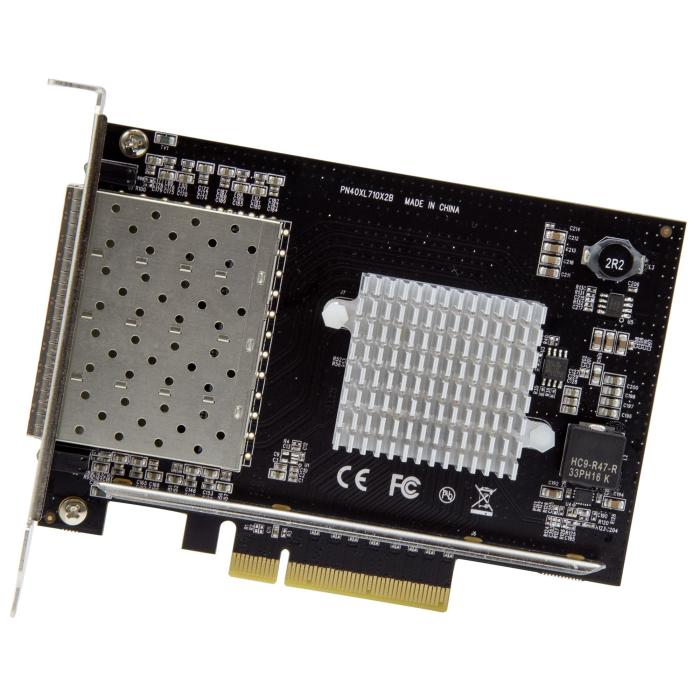

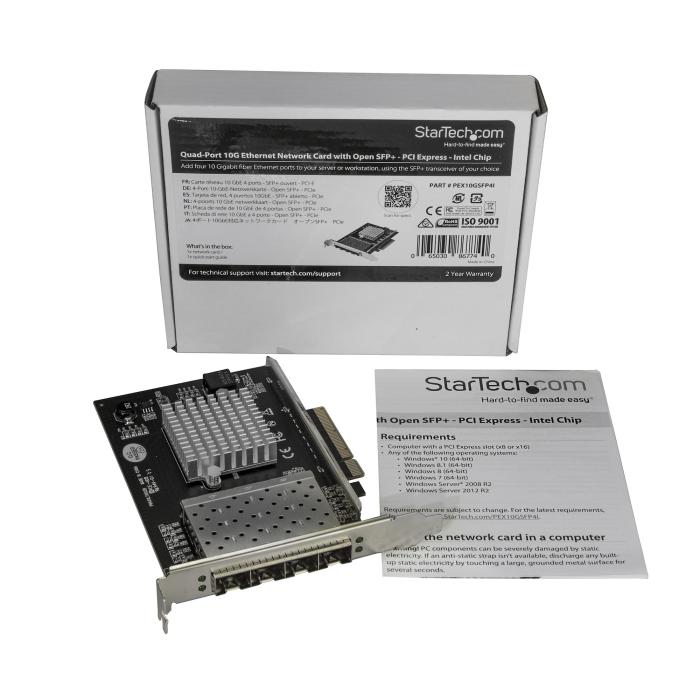

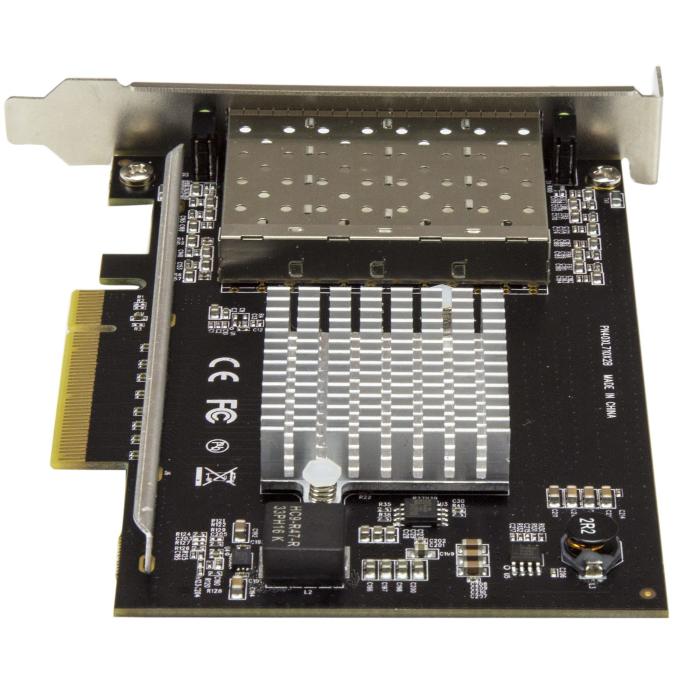

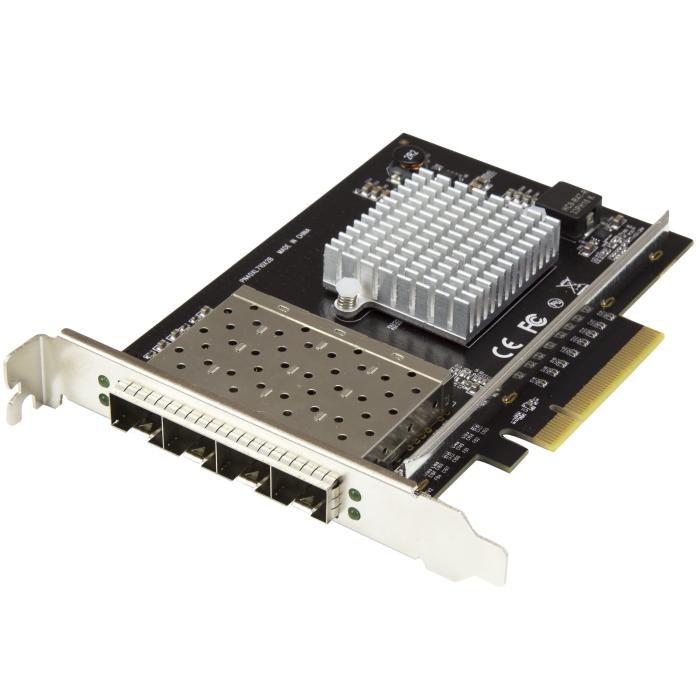

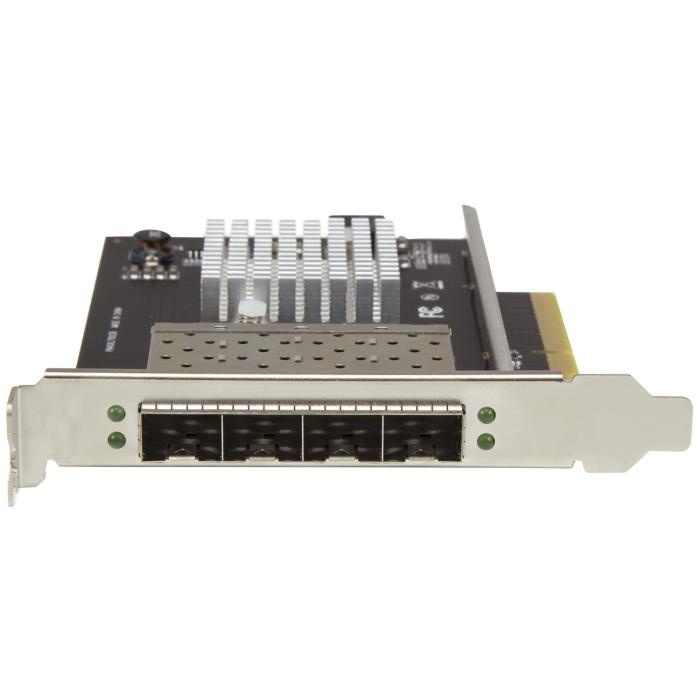

StarTech.com Quad Port 10G SFP+ Network Card - Intel XL710 Open SFP+ Converged Adapter - PCIe 10 Gigabit Ethernet Server NIC - 10GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant, Internal, Wired, PCI Express, Fiber, 20000 Mbit/s, Black

Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Fiber
  • Fiber ports quantity: 4
  • Fiber optic connector: SFP+
  • PCI version: 3.0

Network


  • Maximum data transfer rate: 20000 Mbit/s
  • Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ae, IEEE 802.3x
  • Full duplex: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • VLAN tagging: Yes

Design


  • Product colour: Black
  • Internal: Yes
  • Chipset: Intel® XL710
  • LED indicators: Activity, Link
  • Certification: CE, FCC, REACH

System requirements


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions


  • Operating temperature (T-T): 5 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 20 - 80%

Weight & dimensions


  • Width: 15 mm
  • Depth: 139 mm
  • Height: 100 mm
  • Weight: 122 g

Packaging data


  • Package width: 142 mm
  • Package depth: 170 mm
  • Package height: 30 mm
  • Package weight: 182 g

Technical details


  • Compliance certificates: RoHS

Logistics data


  • Harmonized System (HS) code: 85176990
  • Master (outer) case width: 305 mm
  • Master (outer) case length: 580 mm
  • Master (outer) case height: 360 mm
  • Products per master (outer) case: 80 pc(s)

Other features


  • Quick start guide: Yes
  • Flow control support: Yes
