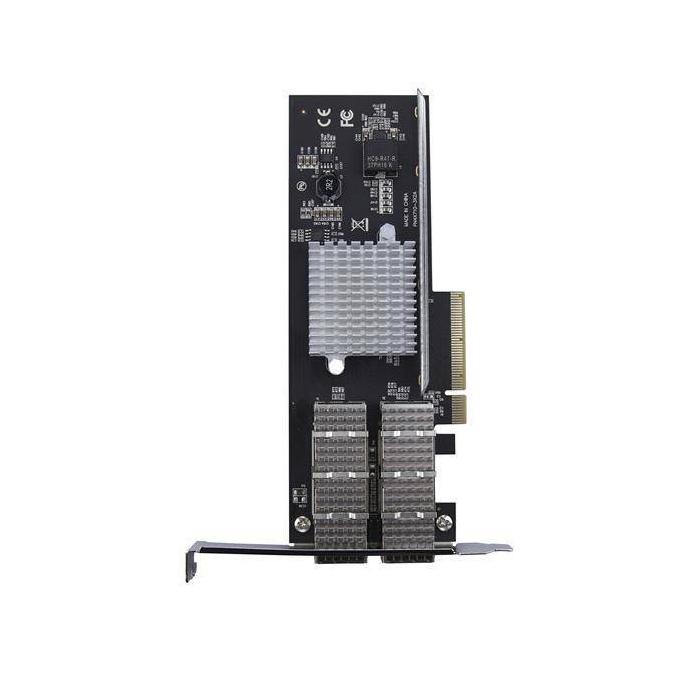

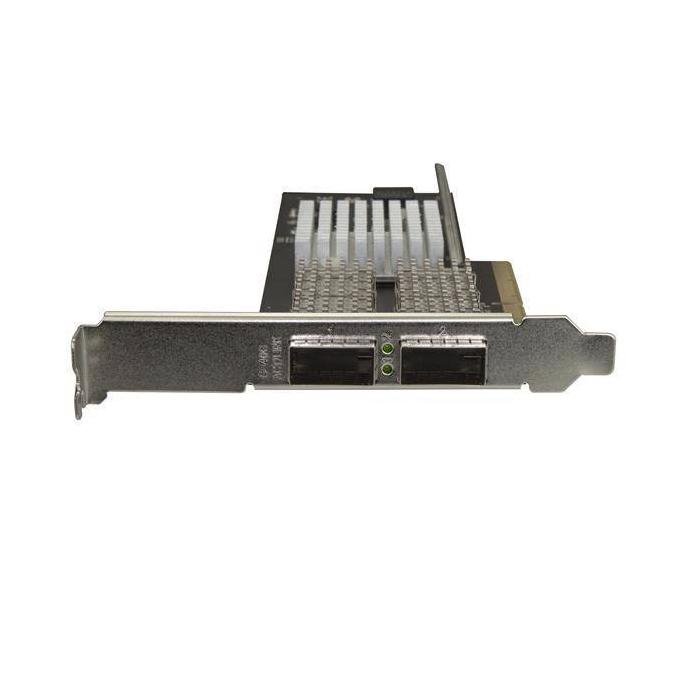

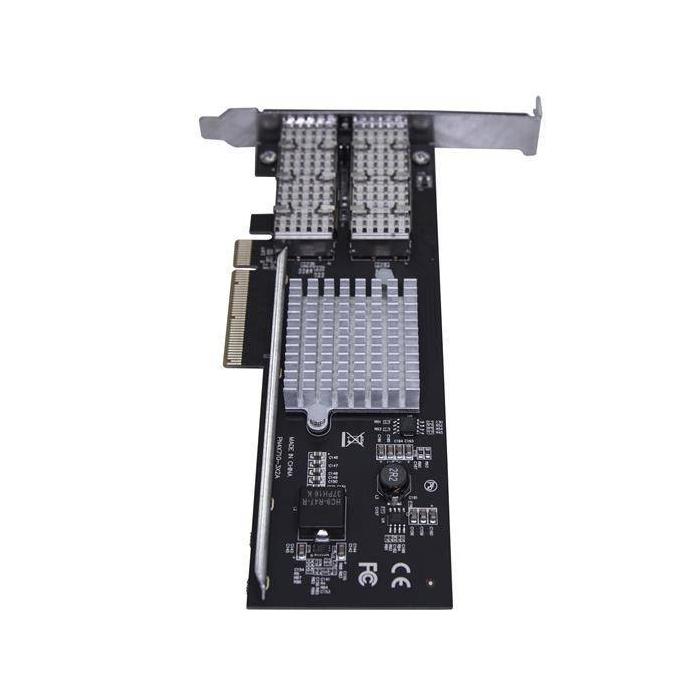

StarTech.com Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip

$562.74
$562.74 without VAT

StarTech.com Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip, Internal, Wired, PCI-X, Fiber, 40000 Mbit/s, Black.   More info

Brand: STARTECH
SKU: 80146 PRC: 198777 EAN: 65030872676 PN: PEX40GQSFDPI

Description

StarTech.com Dual Port QSFP+ Server NIC Card - Intel XL710 Chip - 40gb NIC - PCIe Network Card - Network Interface Card - Server NIC

Specifications

Ports & interfaces

  • Connectivity technology: Wired
  • Internal: Yes
  • Host interface: PCI-X
  • Interface: Fiber
  • Fiber optic connector: QSFP+
  • Fiber ports quantity: 2
  • PCI version: 3.0

Bandwidth

  • Data transfer rate (max): 40000 Mbit/s
  • Full duplex: Yes

Networking

  • Chipset: Intel - XL710-BM2
  • Ethernet LAN: No
  • Networking standards: IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ba,IEEE 802.3x
  • Fiber ethernet cabling technology: 40GBASE-LR4,40GBASE-SR4
  • VLAN tagging: Yes
  • Jumbo frames: 9000
  • Jumbo frames support: Yes
  • Flow control support: Yes

Design

  • Colour of product: Black
  • LED indicators: Activity, Link

Performance

  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 x64
  • Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home x64,Win

Weight & dimensions

  • Width: 121 mm
  • Depth: 181 mm
  • Height: 21 mm
  • Weight: 260 g
  • Package width: 121 mm
  • Package depth: 181 mm
  • Package height: 21 mm
  • Package weight: 260 g

Certificates

  • Certification: CE, FCC
  • RoHS compliance: Yes

Operational conditions

  • Operating temperature (T-T): 0 - 57 °C
  • Storage temperature (T-T): -20 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Packaging content

  • Quick start guide: Yes
  • Low-profile bracket: Yes
