StarTech.com 2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip
More info
Brand: STARTECH.COM
441.00 €
364.46 €
without VAT
incl. 21 % VAT
Stock available: 3 units.
Get it
on the
October 16
/
October 19
SKU:
75153
PRC:
76428
EAN:
65030860604
PN:
PEX20000SFPI
Description
The StarTech.com PCI Express 10GB fibre network card with two open SFP+ ports installs inside a PC or server. It incorporates the Intel 82599 chipset and offers a maximum data transfer rate of 20000 Mbit/s through its two fibre channel ports, with SFP+ connector and cable connection. Its host interface is PCI Express 2.0 and it complies with the IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq and IEEE 802.3x network standards. It supports 15000 Jumbo frames and VLAN tagging, and is compatible with Linux and with Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 and Windows Server 2016. It operates in a relative humidity range of between 20 and 80 per cent. It has a weight of 102 g, dimensions of 18 x 120 x 135 mm (width x height x depth) and a black and metallic colour.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Fiber
- Fiber ports quantity: 2
- Fiber optic connector: SFP+
- PCI version: 2.0
Network
- Maximum data transfer rate: 20000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
- Jumbo frames support: Yes
- Jumbo frames: 15000
- VLAN tagging: Yes
Design
- Component for: PC/Server
- Product colour: Black, Metallic
- Internal: Yes
- Chipset: Intel® 82599
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Operational conditions
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 18 mm
- Depth: 135 mm
- Height: 120 mm
- Weight: 102 g
Packaging data
- Low-profile bracket: Yes
- Package width: 143 mm
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 178 g

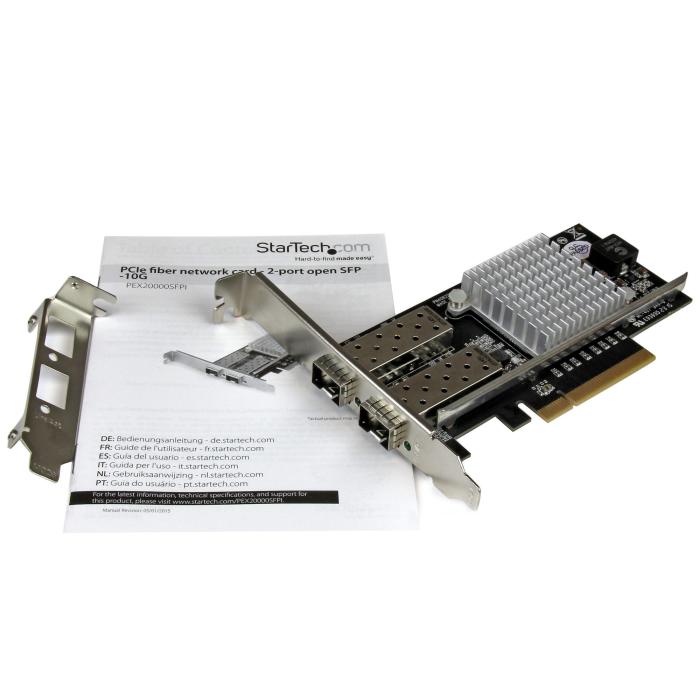

Packaging content
- Mounting brackets included: Yes
- Quick installation guide: Yes
Technical details
- Compliance certificates: CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 359 mm
- Master (outer) case length: 586 mm
- Master (outer) case height: 310 mm
- Products per master (outer) case: 40 pc(s)
Other features
- Flow control support: Yes
