Description

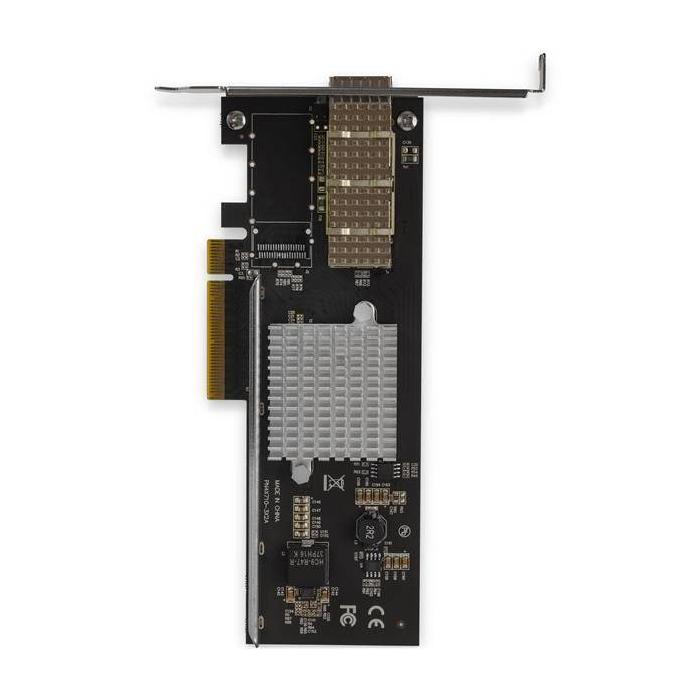

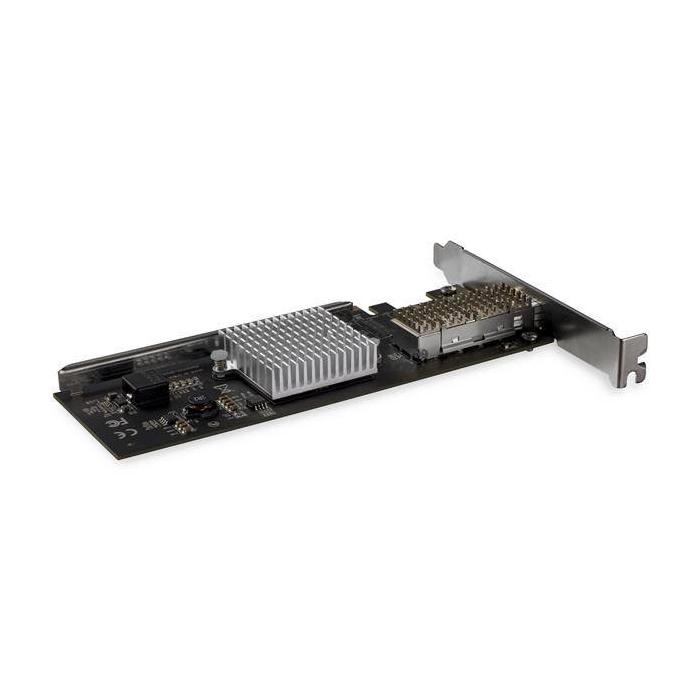

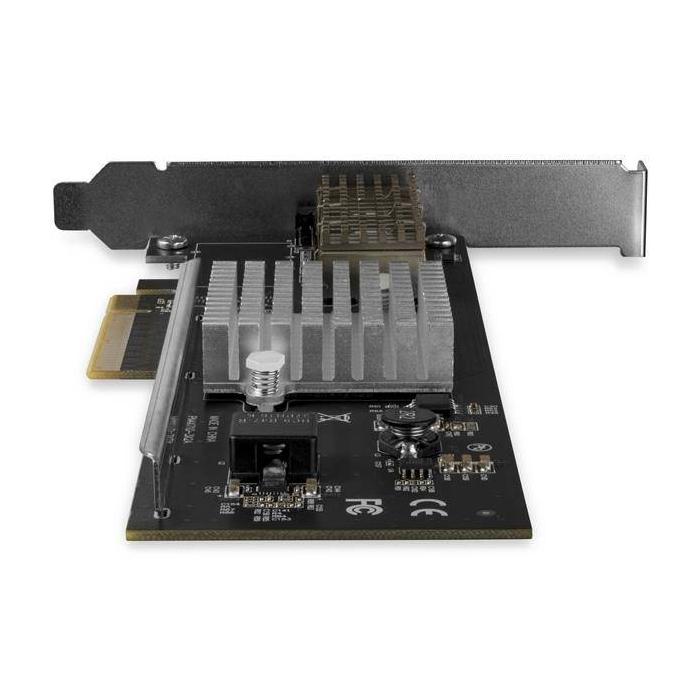

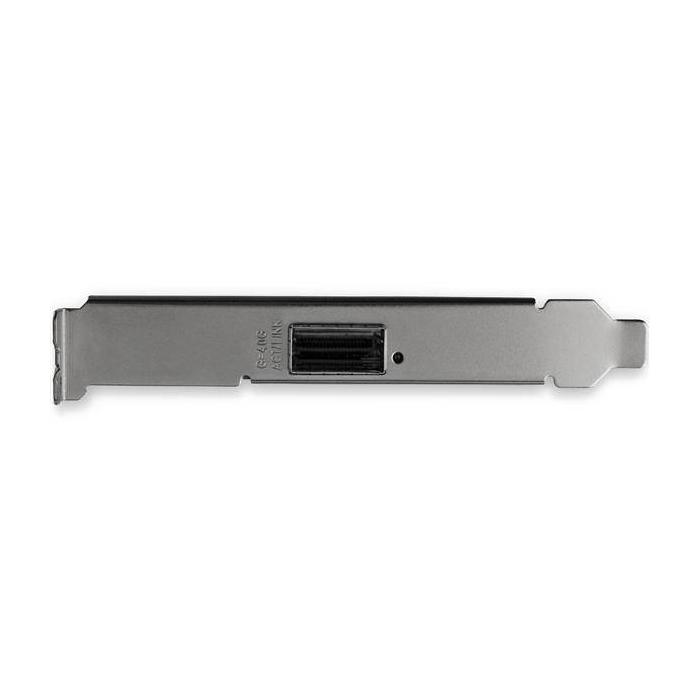

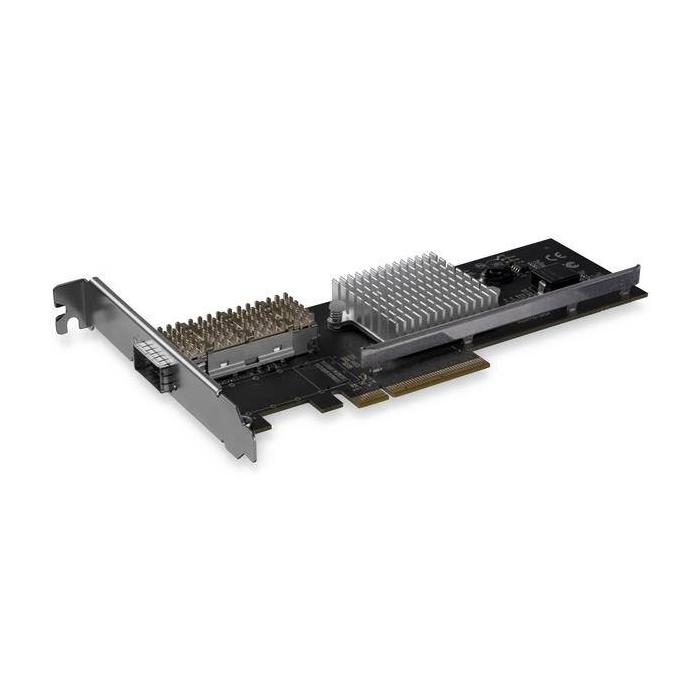

StarTech.com 1-Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant, Internal, Wired, PCI Express, Fiber, 40000 Mbit/s, Black

Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Fiber
  • Fiber ports quantity: 1
  • Fiber optic connector: QSFP+

Network


  • Maximum data transfer rate: 40000 Mbit/s
  • Networking standards: IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3x
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • VLAN tagging: Yes

Design


  • Product colour: Black
  • Internal: Yes
  • Chipset: Intel® XL710-BM1
  • LED indicators: Yes

System requirements


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Operational conditions


  • Operating temperature (T-T): 0 - 57 °C
  • Storage temperature (T-T): -20 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Weight & dimensions


  • Width: 121 mm
  • Depth: 181 mm
  • Height: 20 mm
  • Weight: 112 g

Packaging data


  • Low-profile bracket: Yes
  • Package width: 114 mm
  • Package depth: 207 mm
  • Package height: 38 mm
  • Package weight: 242 g

Technical details


  • Compliance certificates: CE, RoHS

Logistics data


  • Harmonized System (HS) code: 85176990
  • Master (outer) case width: 420 mm
  • Master (outer) case length: 440 mm
  • Master (outer) case height: 320 mm
  • Products per master (outer) case: 40 pc(s)

Other features


  • Quick start guide: Yes
  • Flow control support: Yes
